Warning Beacons
12V Halogen Rotating Warning Beacon, Flexi DIN Mount - LG706
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG706 |
| EAN / Barcode | 4255929205227 |
| Product Type | Halogen Rotating Warning Beacon |
| Mounting / Base Type | Flexi DIN Mount |
| Scope of Delivery (Included in Box) | 1x Halogen Warning Beacon, 1x Spare 12V H1 Bulb, User Manual |
| Ideal Applications | Agricultural Machinery, Tractors, Construction Equipment, Commercial & Utility Vehicles |
| Light Function / Color | Rotating Flash / Amber |
| Lens Color | Amber |
| Housing Color | Black |
| Number of Flash Patterns | 1 (Rotating) |
| Names of Flash Patterns | Rotating |
| Theoretical Power (Watts) | 55 W (12V) |
| Actual Power Consumption (Watts) | 55 W @ 12V |
| Current Draw (Amps @ 12V / 24V) | 4.6A @ 12V |
| Operating Voltage Range | DC 12V |
| Connection Type / Cable Length | Flexi DIN Connector (Pipe Mount) |

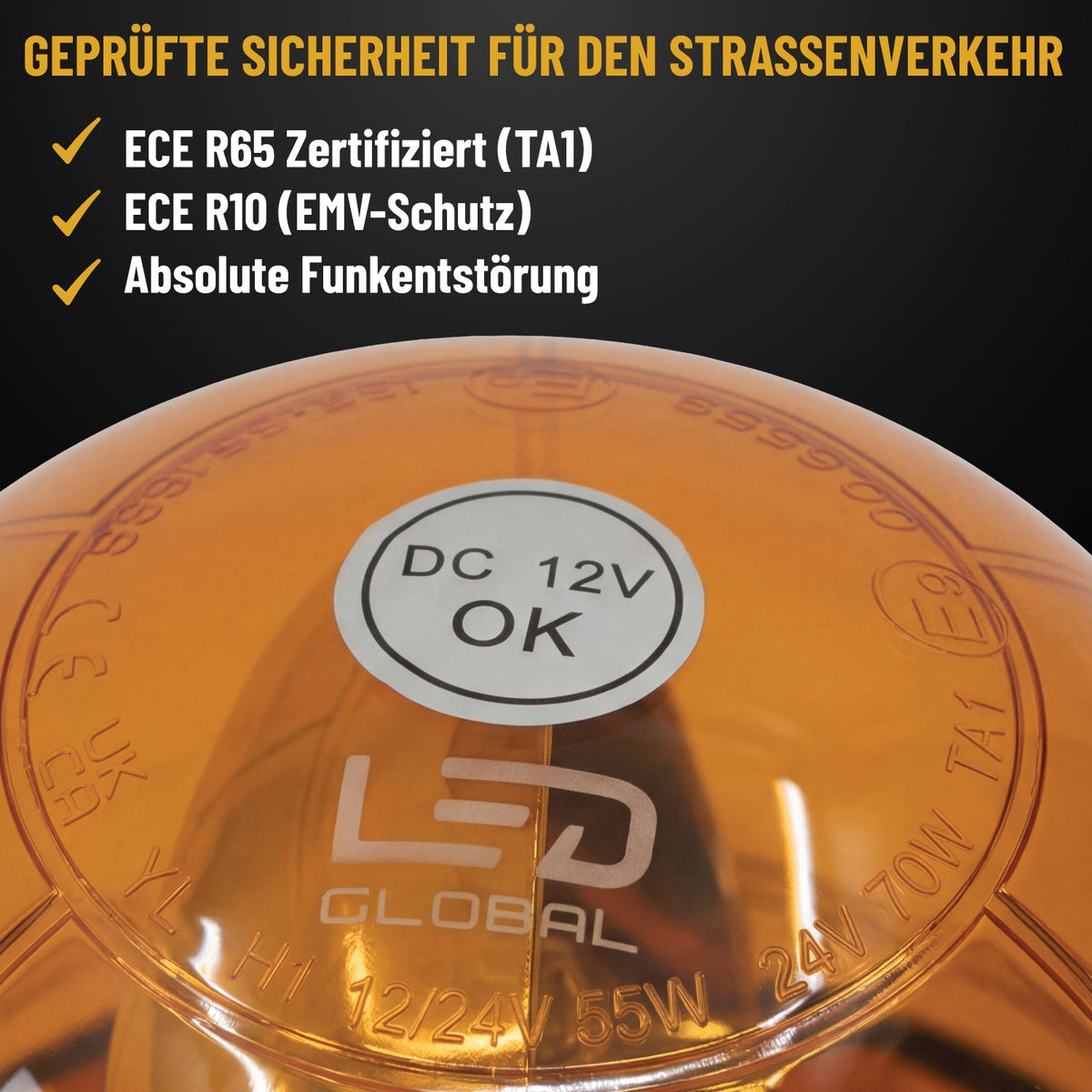

| ECE Approvals | ECE R65 (TA1 - E9*65R00/11*6559*01) |
| EMC / Suppression Rating | ECE R10 (E9-10R-06.1898 Ext.02), CISPR 25 Class 3, CE, UKCA |
| Protection Rating (IP) | IP67 |
| Operating Temperature Range (°C) | -30°C to +60°C |
| Housing / Base Material | Polycarbonate (PC) with UV resistance |
| Lens Material | Polycarbonate (PC) with UV resistance |

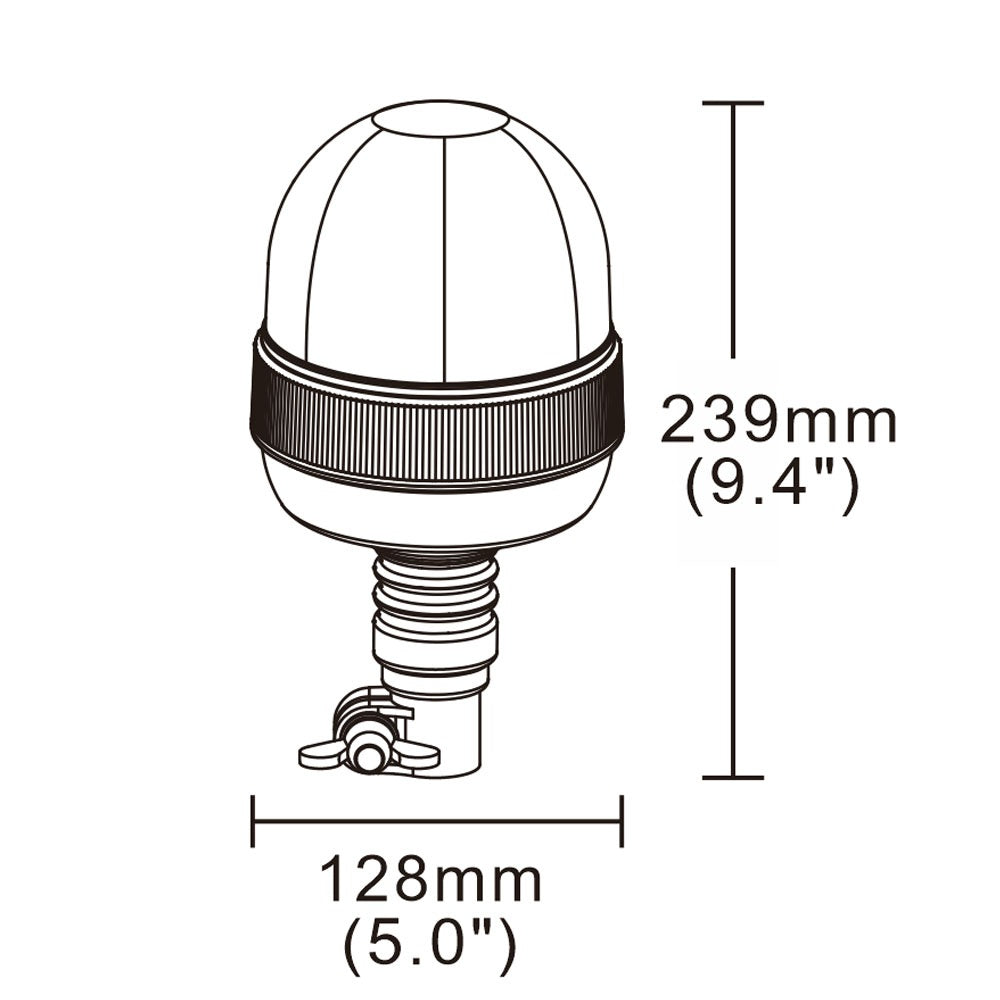

| Height (mm) | 239 mm |
| Diameter (mm) | 128 mm |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

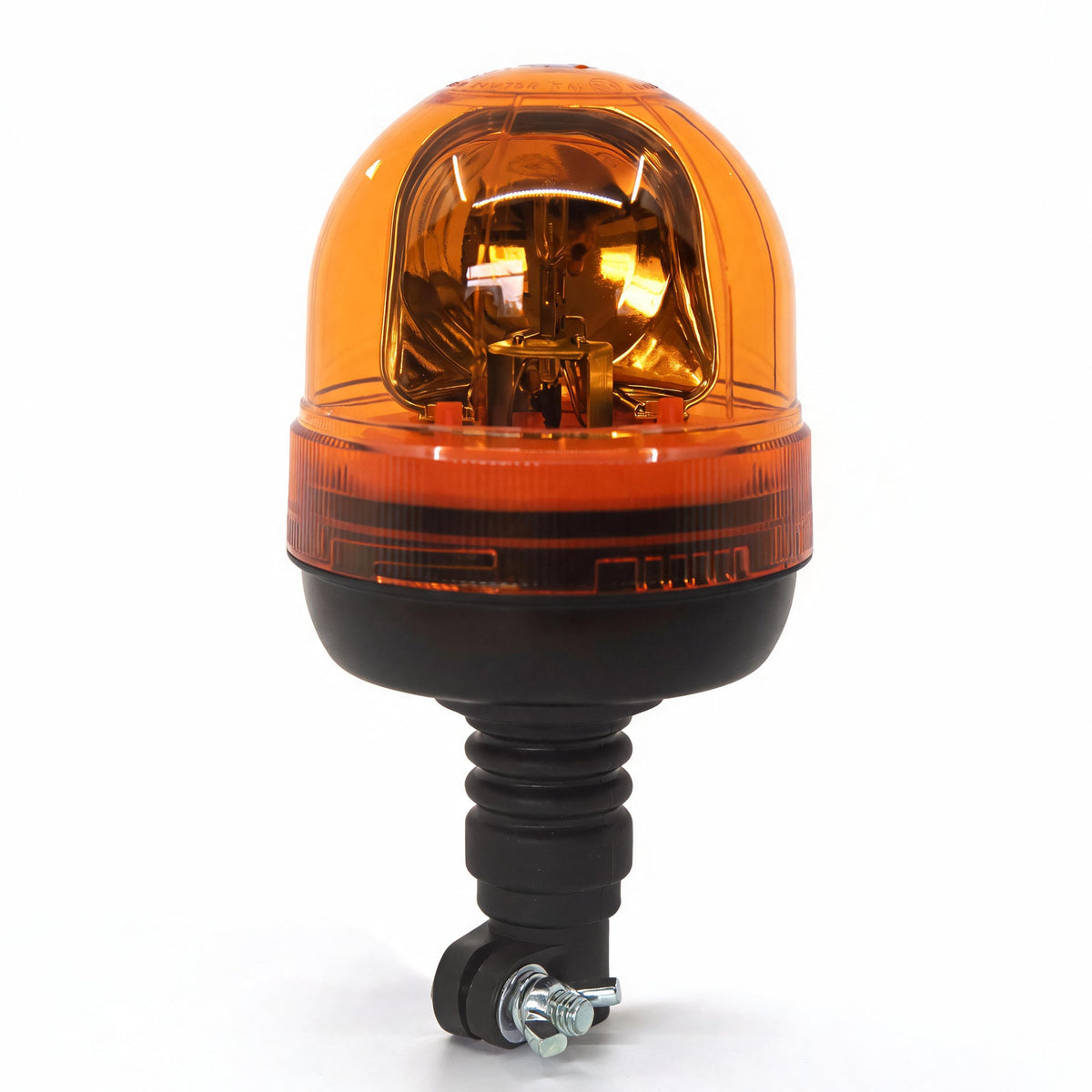

12V halogen rotating beacon with flexible DIN mount

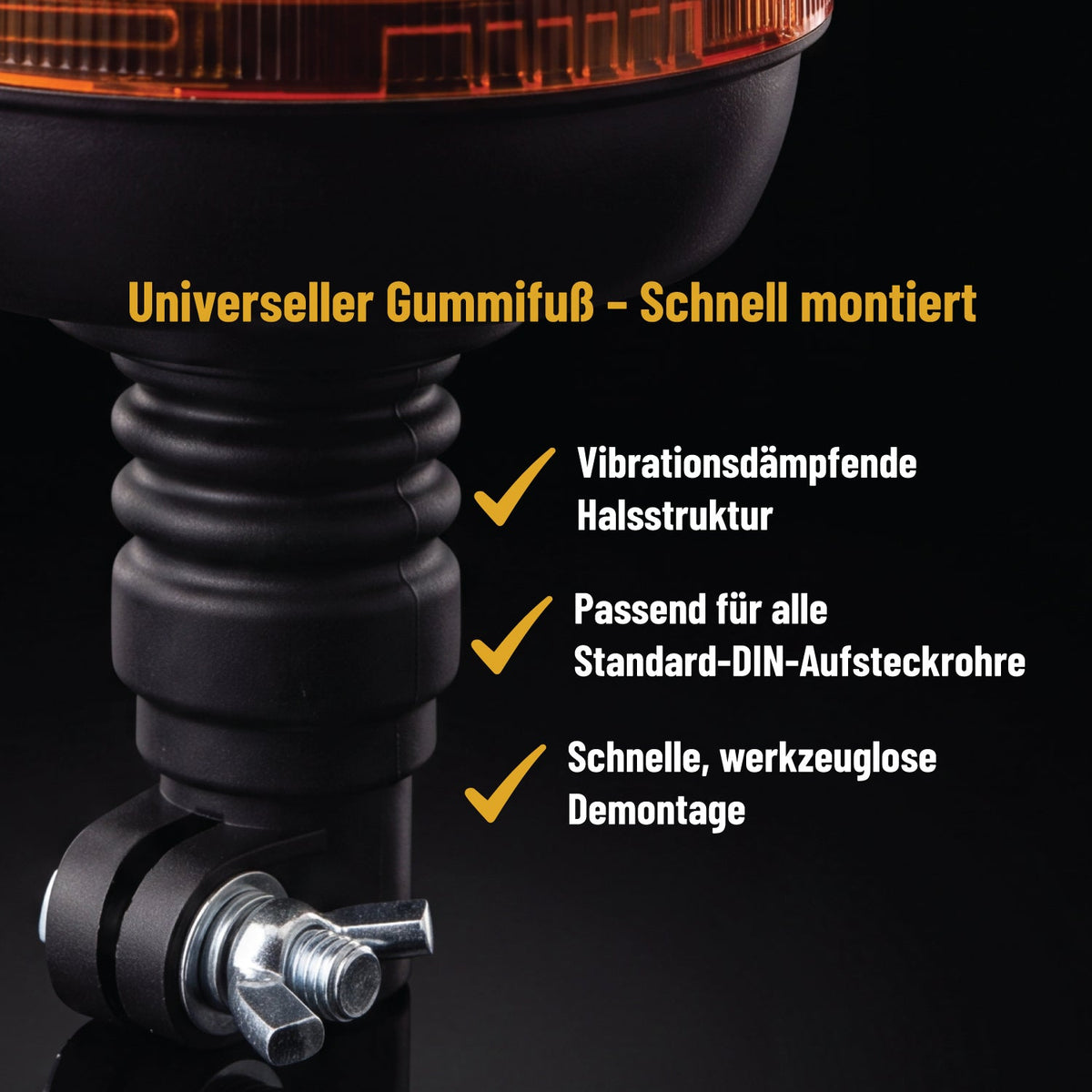

The LG706 provides amber rotating warning light using a 12V H1 55W bulb. It is supplied with a fitted bulb, an additional spare 12V H1 bulb and a user manual. The flexible DIN base fits a compatible mounting pole.
The UV-resistant polycarbonate lens and base are rated IP67. ECE R65 TA1 and ECE R10 approvals and CISPR25 Class 3 suppression are specified. Current draw is 4.6A at 12V; dimensions are 239 mm high and 128 mm in diameter.
