LED Marker Lights
LED marker and outline lights for trucks, trailers, agricultural equipment and construction vehicles — available in amber, red and white, in flush mount, slim, button, oval, rectangular and bracket-mounted formats.
Side, Front and Rear Marker Lights
Marker lights outline the shape and length of a vehicle so other road users can judge its size and position in the dark. The colour convention across Europe is consistent: white to the front, amber along the sides, red to the rear. Getting that wrong is one of the more common reasons a trailer fails a roadworthiness check, so it is worth confirming the position before choosing the colour.
Flush Mount and Slim Marker Lights
Flush mount units sit into a drilled aperture so the lens finishes level with the panel, leaving nothing to catch on loads, curtains or washdown equipment. Slim 6 LED markers take the same approach with a low-profile housing on the surface, in amber, red and white.
Button Marker Lights
Button markers are the smallest format in the range, supplied in pairs, for adding outline points along a long body or trailer where a full-size lamp would be excessive. Available in amber, red and white.
Bracket-Mounted and Oval Marker Lights
Bracket-mounted markers stand proud of the panel on their own mount, which suits frames, rails and posts where there is no flat face to mount against. Oval versions give a wider illuminated area from the same bracket arrangement.
Rectangular Marker Lights

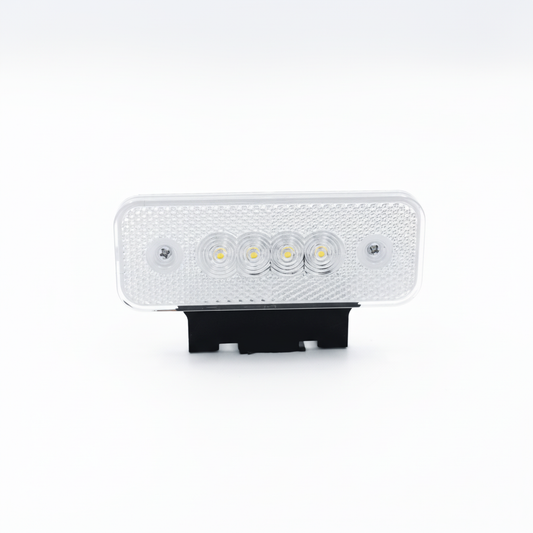

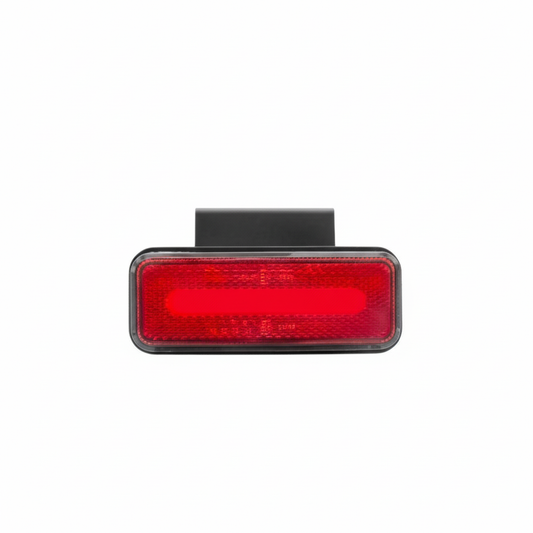

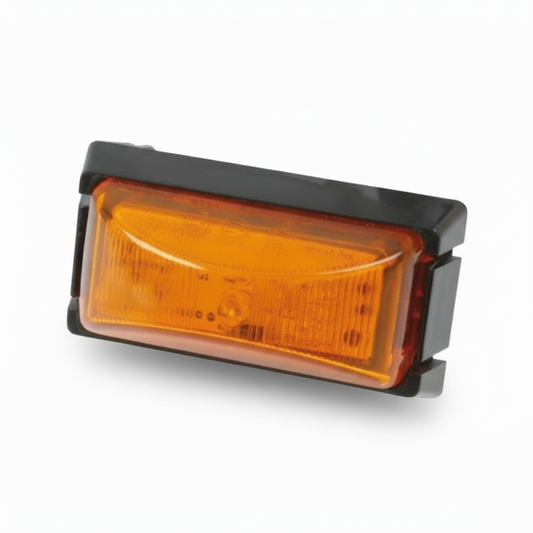

Rectangular markers are the general-purpose option, available as standard units and as 6-diode versions with greater output, in all three colours.
Stalk Lights
Stalk lights mount on a projecting arm to carry the marker clear of the bodywork, supplied as left and right units — the usual solution on wide bodies and agricultural machinery where the outline point needs to sit outboard of the panel.
Build Quality
The marker light range is manufactured in Europe using Osram diodes, giving consistent output and a long service life in a component that is typically fitted in numbers and awkward to replace once a body is finished.
Choosing a Marker Light
- White to the front, amber to the sides, red to the rear
- Flush mount for a clean finish, surface or bracket mount for retrofit
- Button markers for adding outline points along a long body
- Stalk lights where the marker must sit outboard of the panel
- 6-diode versions where greater output is needed
Check the individual product pages for dimensions, voltage and approval details before ordering.
