Tractor Work Lights

Direct-fit LED work lights for tractor bonnet, cab and built-in mounting positions — designed to drop into the original lamp aperture and connect to the existing loom, with OEM cross-reference numbers listed so you can confirm the fit before ordering.

Direct-Fit LED Work Lights for John Deere, Massey Ferguson, Deutz-Fahr and Valtra

Fitments in this range cover John Deere 6030, 7030, 7R and 8R series, Massey Ferguson S Series, Deutz-Fahr Agrotron and Valtra, among others. Each product page lists the applicable models and the OEM part numbers the lamp cross-references, so an existing part number off the old lamp or the parts book is usually the quickest way to identify the right unit.

Bonnet Work Lights

Round and built-in bonnet lights replace the original lamps at the front of the machine, matching the existing aperture and bracket so no new holes or panel modification are needed. Typical output is 3200 lumen from 40W using CREE XTE or Osram LEDs.

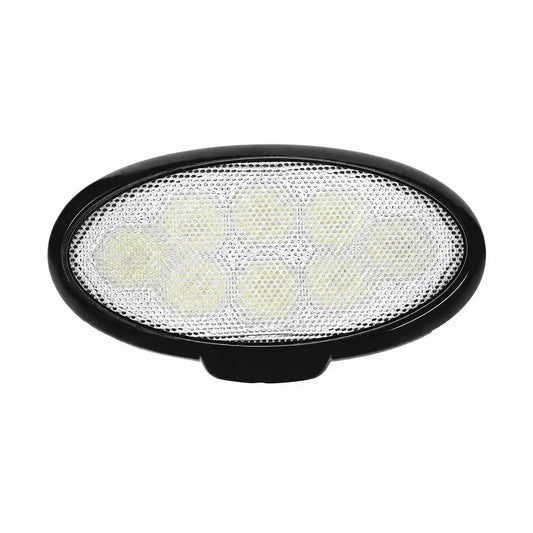

Cab Insert and Cab Lights

Cab insert lamps fit the moulded apertures in the cab roof, from 20W units for smaller apertures up to 60W. They give the wide flood pattern needed for close work around the machine — loading, hitching and headland turns — rather than distance throw.

Built-In and Standard Mount Work Lights

Built-in units sit flush within the panel for a factory appearance, while standard bracket-mounted lamps suit machines where the original fitting used an external mount. Output runs from 40W up to 90W.

Plug and Play Connectors

Most lamps are supplied with a plug-and-play connector matched to the original harness — DT, H9, H11, 9005 and 9006 depending on the application — so the lamp connects directly without cutting or splicing into the tractor loom. The connector type is listed on each product page and is worth checking alongside the model fitment.

Specification and Approvals

Lamps in this range run on 9–32V or 10–30V, covering 12V and 24V machines, and are built in diecast aluminium with polycarbonate lenses. Sealing is IP68 or IP69K for pressure washing, with a service life above 50,000 hours and operating ranges down to -40°C. Units carry ECE R10 approval with CISPR25 Class 3 or Class 4 EMC suppression, which matters on modern tractors running GPS guidance, ISOBUS and telemetry — poorly suppressed lamps are a common cause of signal interference.

Choosing a Tractor Work Light

• Check the model fitment and OEM cross-reference before ordering
• Confirm the connector type matches your existing harness
• Bonnet, cab insert, built-in and standard mount positions
• 20W to 90W, with 3200–5500 lumen typical
• CISPR25 Class 3/4 suppression for machines with GPS and ISOBUS

These are LED Global replacement products. Original equipment names, model references and part numbers are used for identification purposes only.
