LED Work Light Bars
Off-road LED work bars for broad work-area illumination on tractors, harvesters, loaders and construction plant — from 72W to 240W, in straight and curved formats, all running on 9–32V for 12V and 24V machines.
Off-Road Work Bars from 72W to 240W
Output scales predictably across the range: 72W gives 5,760 lumen, 120W gives 9,600 lumen, 180W gives 14,400 lumen and 240W gives 19,200 lumen. Match the output to the working area rather than reaching for the largest bar by default — a 240W unit on a compact loader mostly lights ground the operator is not working on, while drawing current the alternator has to supply.
These are work bars intended for off-road and work-area use. They are kept separate from our road-approved LED driving bars with DRL, which are the correct choice if the bar needs to be used on public roads.

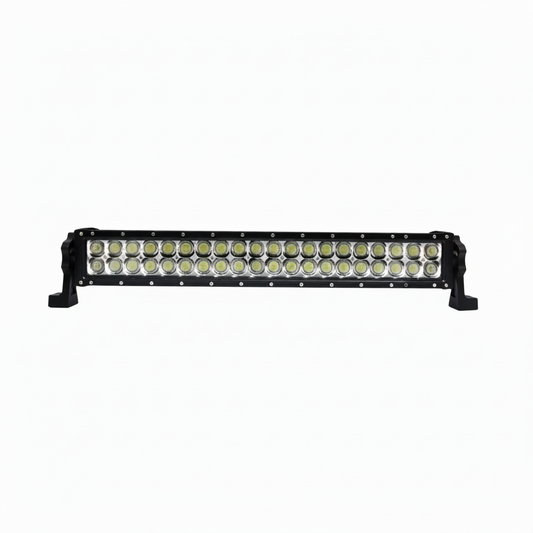

Straight and Curved Bars

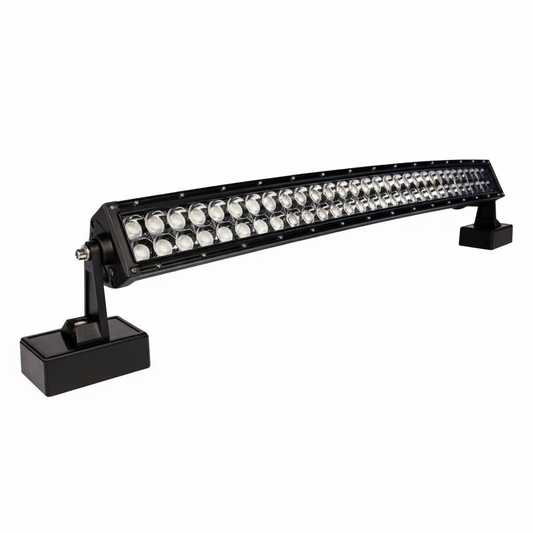

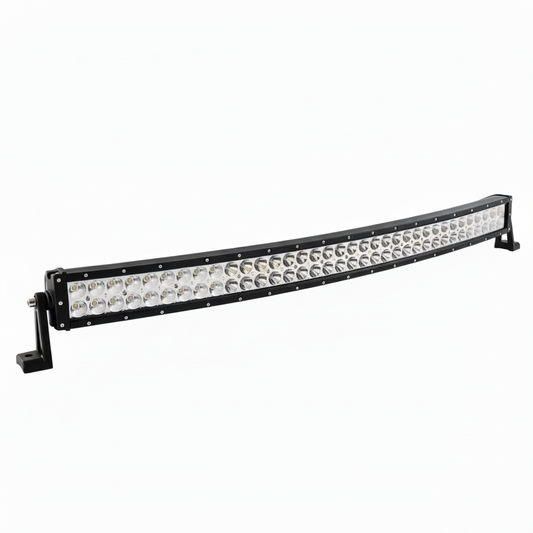

Straight bars suit flat mounting on a cab roof, bonnet or bull bar. Curved bars follow the profile of a cab roofline or bar and spread light slightly wider at the edges, which helps when the working area extends beyond the machine rather than straight ahead. Both 180W and 240W options are available curved.
Combination Beam Pattern
Every bar in this range uses a combination beam, mixing spot optics in the centre with flood at the outer edges. That gives usable distance down the field or site while still lighting the ground immediately around the machine — the practical choice when a machine carries one bar rather than a matched pair of spot and flood units.
Build and Approvals
All bars use 3W CREE XTE LEDs at 6000K in a diecast aluminium housing with a PMMA lens, rated IP68 for washdown and permanent outdoor mounting, with a service life above 50,000 hours. Each carries ECE R10 approval with CISPR25 Class 4 suppression, covering electromagnetic compatibility — worth having on machines running GPS guidance and ISOBUS. Note that R10 covers EMC only and is not a road-use approval for the beam pattern.
Choosing a Work Bar
- 72W / 5,760lm to 240W / 19,200lm — match output to the working area
- Straight for flat mounting, curved to follow a cab roofline
- Combination beam gives both distance and close coverage
- 9–32V covers 12V and 24V machines
- For road use, see the road-approved LED driving bars with DRL
Check the individual product pages for dimensions, mounting details and full specifications before ordering.
