Headlights
New Holland Tractor Full LED Headlight with Emark (Right) - LG922REU
Specifications
| SKU | LG922REU |
|---|---|
| EAN | 4255929204497 |
| Fitment side | Right |
| Upper wide flood module | 30 W / 3,000 lm |
| Lower high beam | 45 W / 4,500 lm |
| Lower low beam | 35 W / 3,500 lm |
| Voltage | 9–32V DC |
| Cable length | 400 mm |
| Protection | IP69K |
| ECE approvals | R148, R149, R10 |
| EMC | CISPR25 Class 4 |
| Other conformity | CE, RoHS |
| Operating temperature | −40°C to +80°C |
| Housing | Diecast aluminium alloy |
| Lens | Polycarbonate |

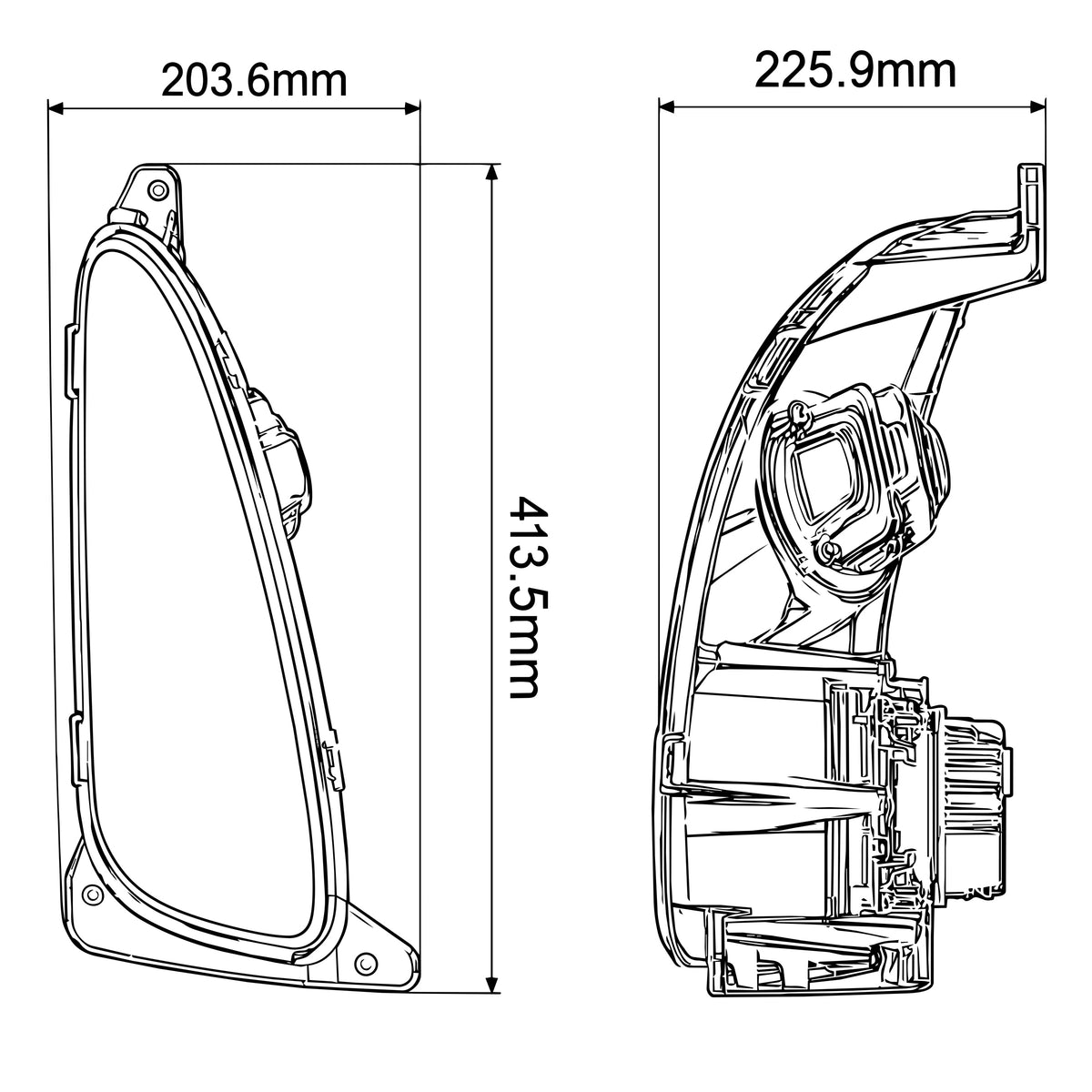

| Width | 203.6 mm |
| Overall height | 413.5 mm |
| Depth | 225.9 mm |
| Mounting | Integrated module mounting points |
| Included | 1 × right-side headlamp with connection leads |
| OEM reference | 82029729 |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
New Holland LED combination headlight — right side
The LG922REU is a right-side replacement headlight for selected New Holland tractors. Its upper module provides a 30W wide flood beam with 3,000 lumens. The lower module provides 45W high beam with 4,500 lumens and 35W low beam with 3,500 lumens.
It operates on 9–32V DC and combines a diecast aluminium housing, polycarbonate lens, IP69K protection and CISPR25 Class 4 suppression. The integrated mounting points fit the corresponding tractor headlamp location. Supplied as one right-side unit with connection leads.
Fitment
Compare the original lamp shape, mounting points and both connectors before fitting. Brand and model names identify compatibility; this is an aftermarket replacement.
Compatible New Holland models
- T5000 Series: T5030, T5040, T5050, T5060
- T6000 Series: T6010 Delta, T6010 Plus, T6020 Delta, T6020 Elite, T6020 Plus, T6030 Delta, T6030 Elite, T6030 Plus, T6040 Elite, T6050 Delta, T6050 Elite, T6050 Plus, T6060 Elite, T6070 Elite, T6070 Plus
- T7500 Series: T7510, T7520, T7530, T7540, T7550
- TLA Series: TL100A
- TSA Series: TS100A, TS110A, TS115A, TS125A, TS130A, TS135A
- TVT Series: TVT135, TVT145, TVT155, TVT170, TVT190, TVT195
