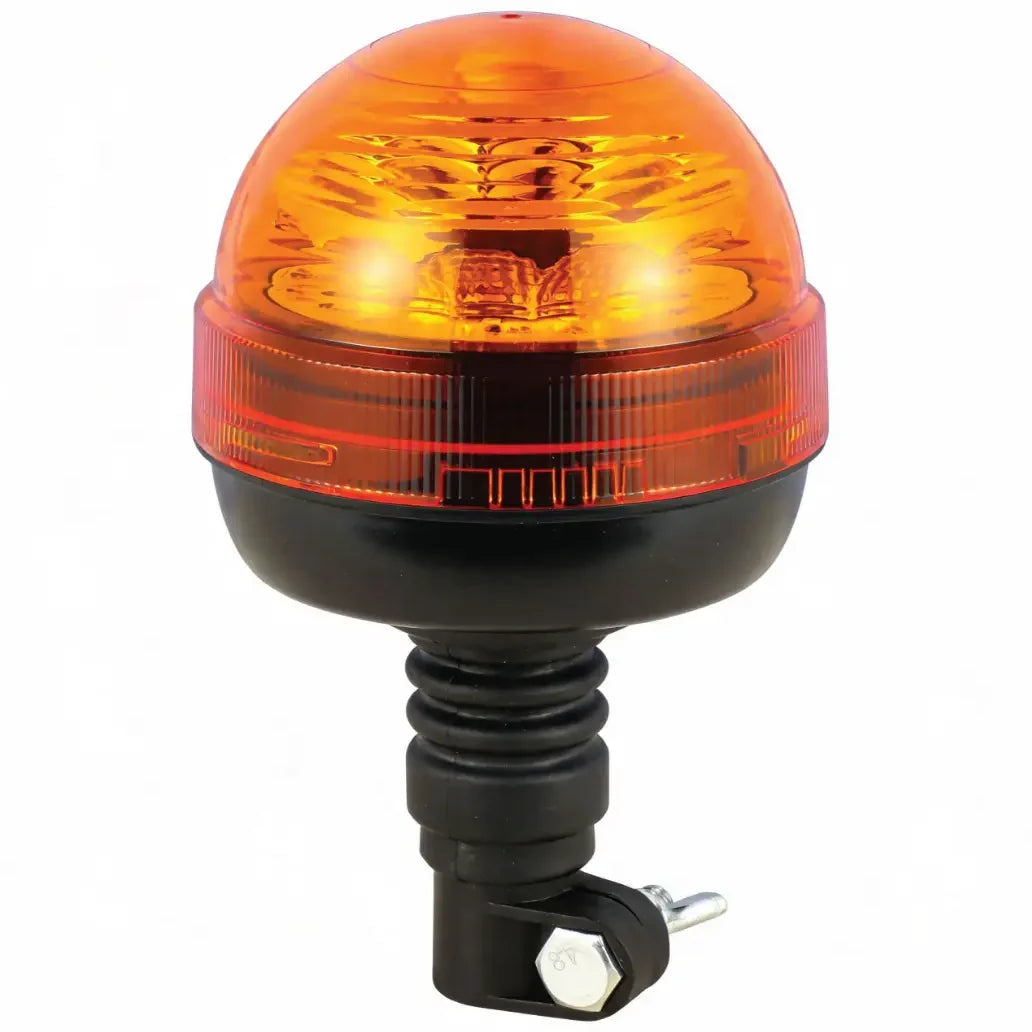

Orange Pole-Mounted Flashing Beacon Light 12V/24V – LG707
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG707 |
| EAN / Barcode | 4255929220404 |
| Product Type | Beacon |
| Mounting / Base Type | Flexi din. Pole mounted, high quality flexible rubber stem |
| Light Function / Color | Amber |
| Lens Color | Amber |

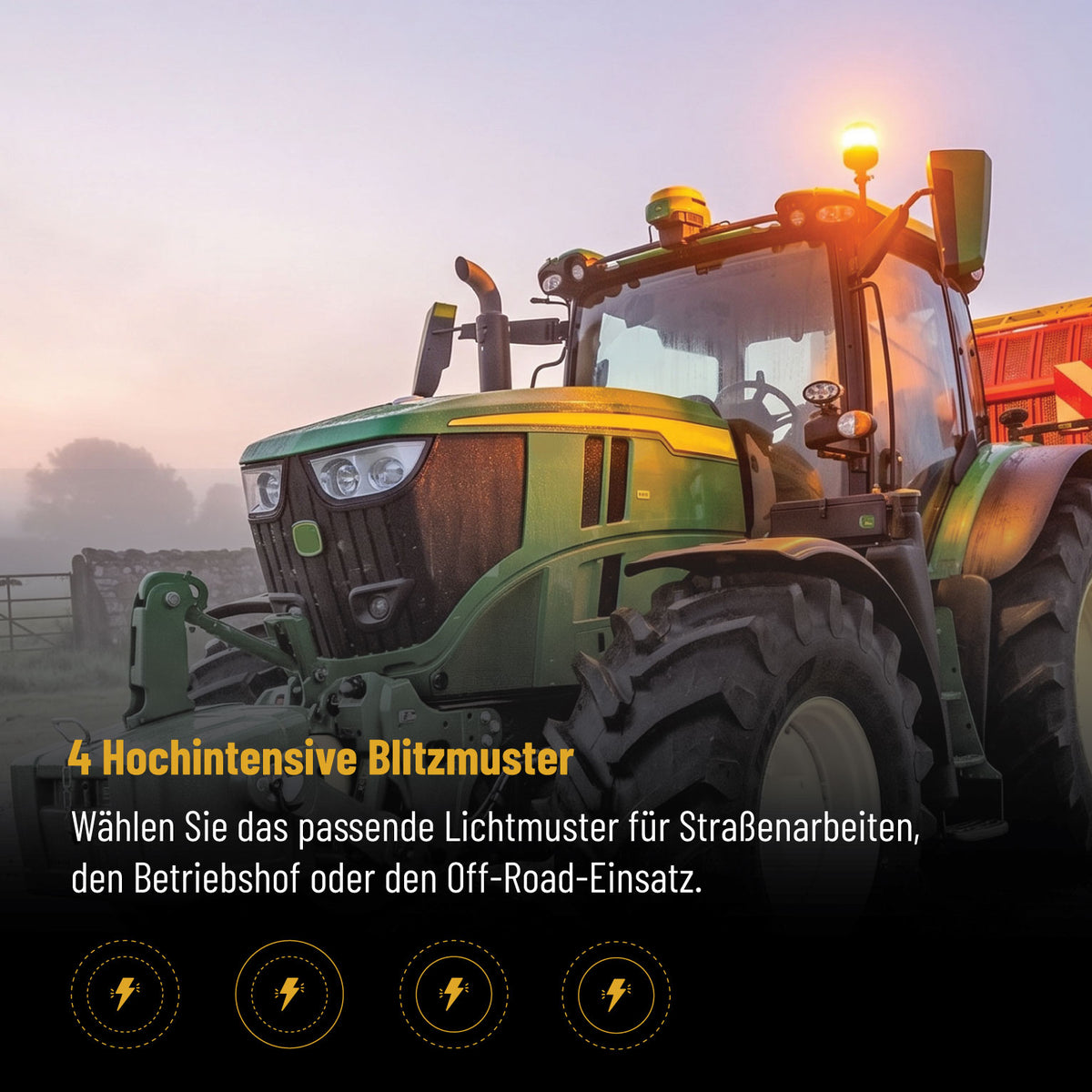

| Number of Flash Patterns | 4: Rotating, single flash, double flash, quad flash (ECE R65) |
| Operating Voltage | DC 12-24V |
| Power | 12LED*1W |
| Max current: | 0.95A@12V；0.42A@24V |
| ECE Approvals | CE, UKCA, ECE R10, ECE R65 TA1; R65: E9 00.6860; R10: E9 06.23345 |
| EMC | CISPR 25 Class 3 |

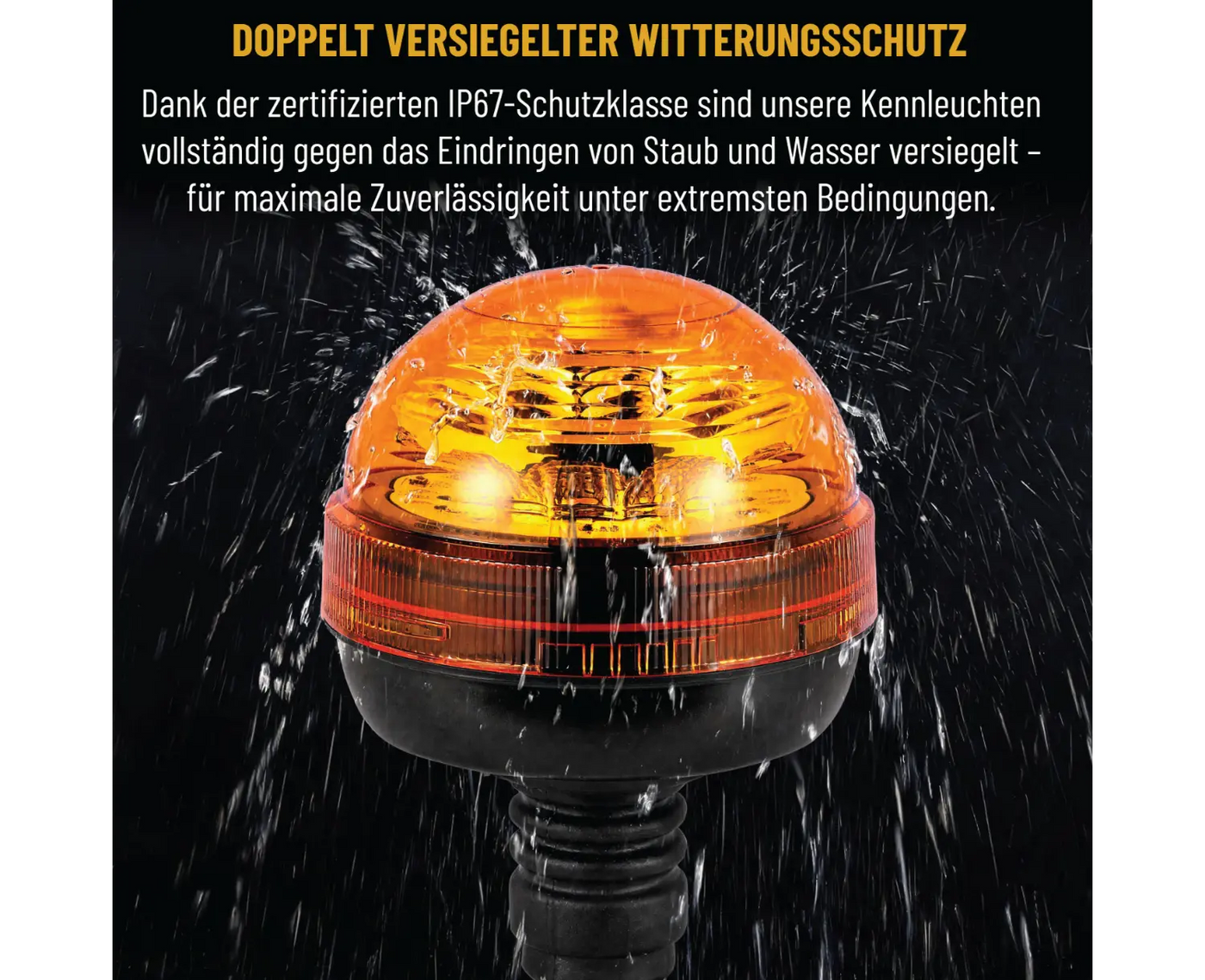

| Protection Rating (IP) | IP67 |
| Operating Temperature Range (°C) | -30°C to +60°C |
| Housing / Base Material | Polycarbonate with UV resistance |
| Lens Material | Polycarbonate with UV resistance |

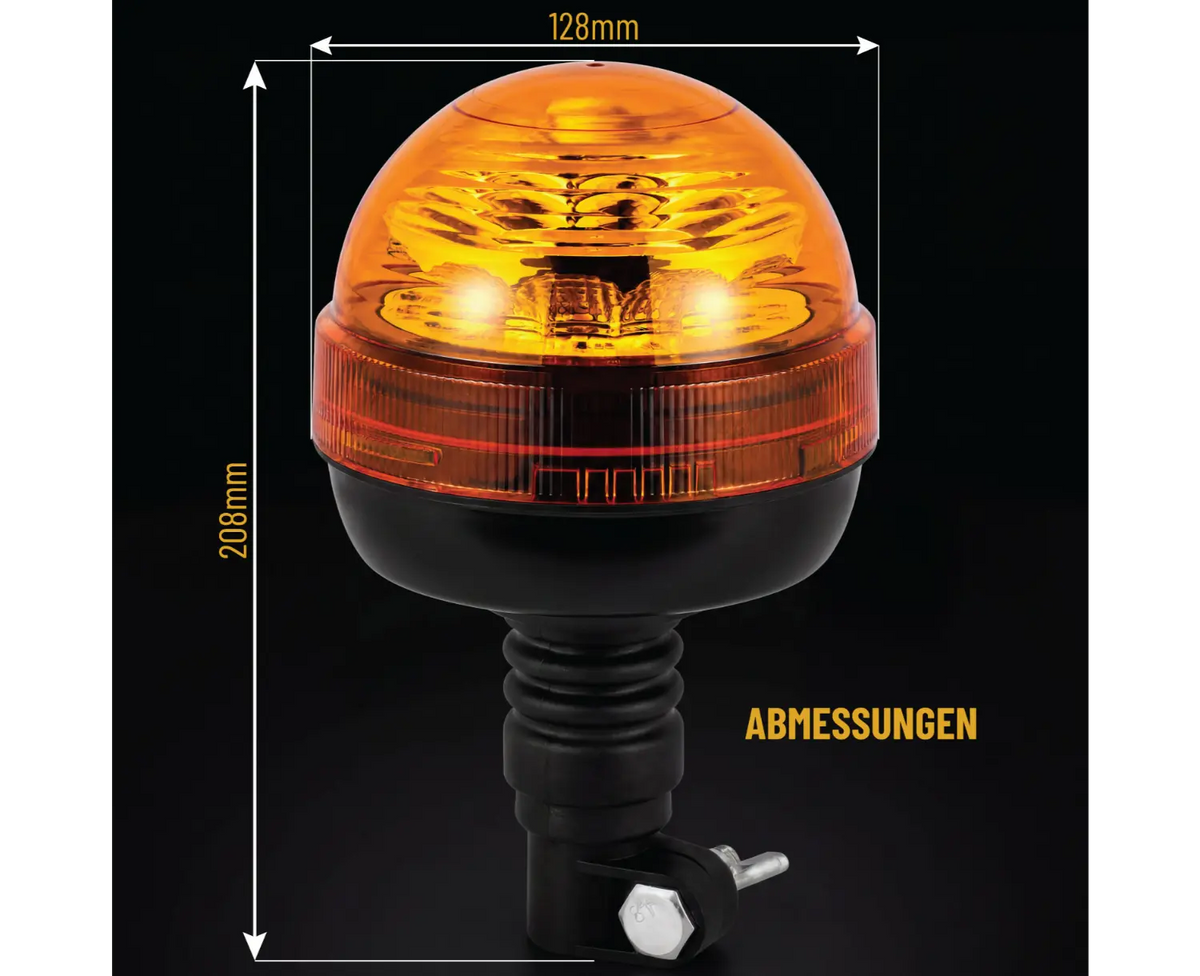

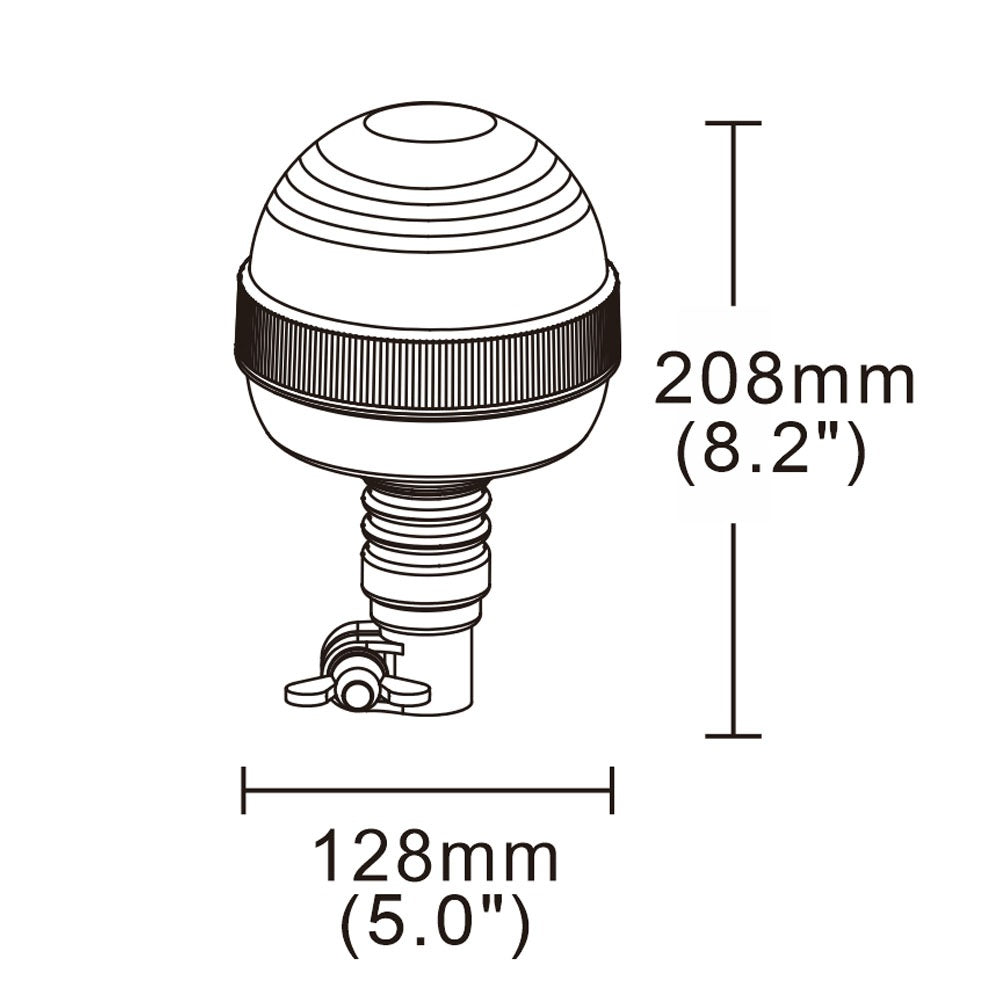

| Height (mm) | 208 mm |
| Diameter (mm) | 128 mm |
| Net weight | 420.5 g |
| Gross Weight | 523.6 g |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
12W amber LED beacon with four flash patterns
The LG707 uses twelve 1W LEDs and a flexible DIN pole-mount base. Four ECE R65 patterns are available: rotating, single flash, double flash and quad flash. It operates on 12–24V DC.

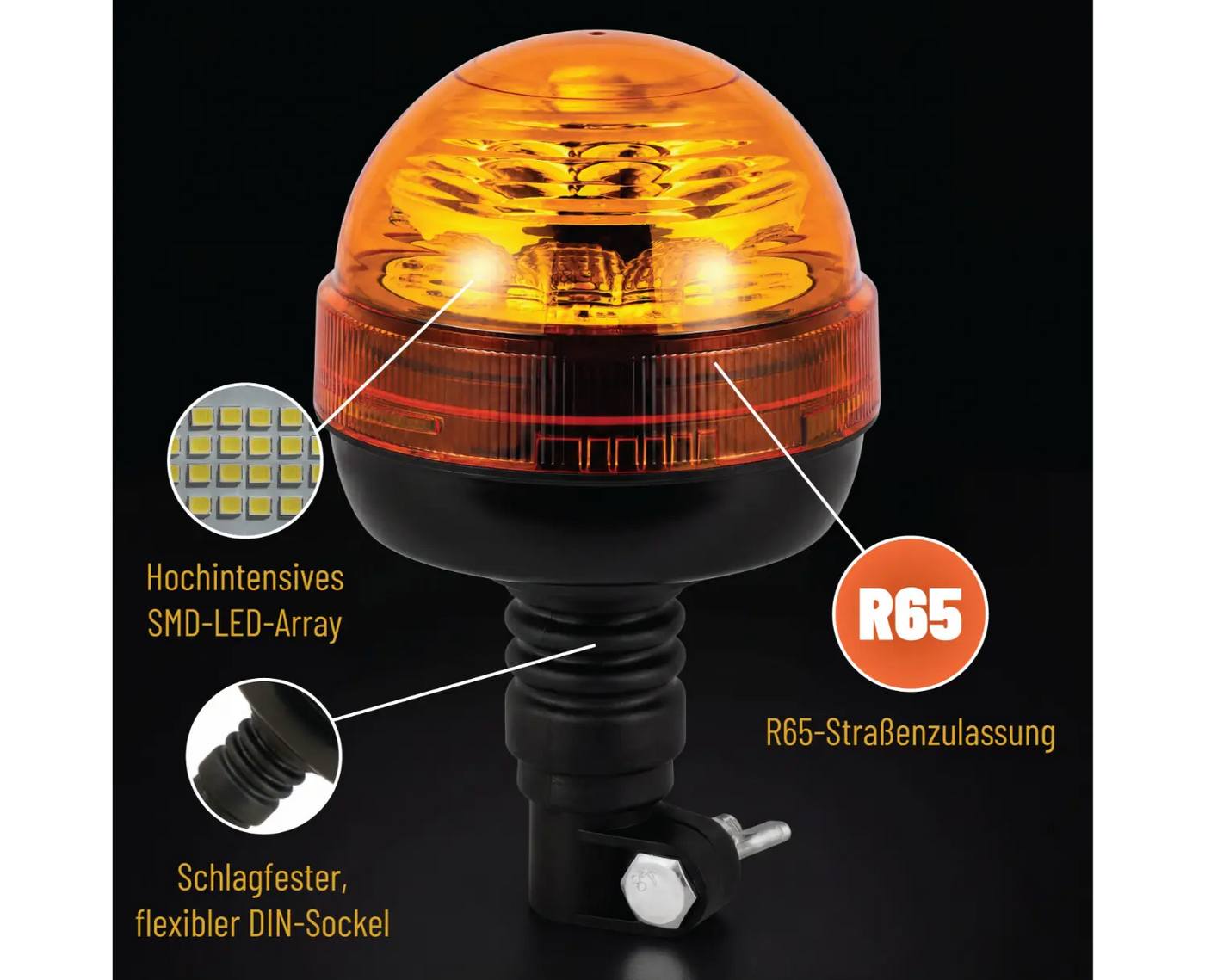

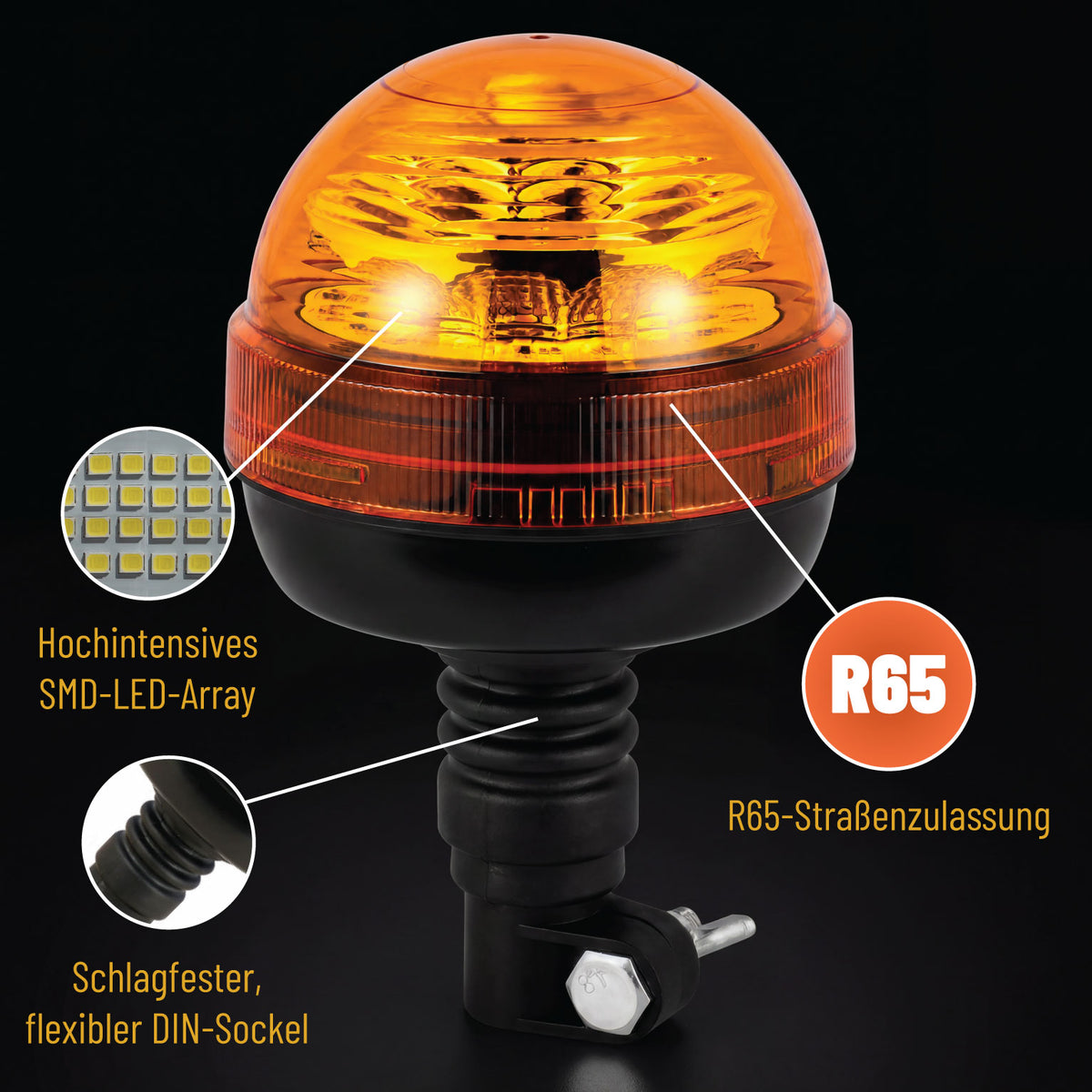

The UV-resistant polycarbonate lens and housing are IP67 rated. ECE R65 TA1 and ECE R10 approvals, CISPR25 Class 3 suppression and reverse-polarity protection are specified. The flexible rubber stem helps absorb contact with obstacles. Overall dimensions are 208 mm high and 128 mm in diameter.
