Magnetic LED Mini Warning Light Bar, 310 mm - LG656
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG656 |
| EAN / Barcode | 4255929220176 |
| Product Type | LED Mini Light Bar Warning Beacon |
| Mounting / Base Type | Magnetic Mount |
| Scope of Delivery (Included in Box) | 1x Magnetic LED Mini Bar, 4.5m Cable with Controller and Cigarette Plug |
| Ideal Applications | Recovery Vehicles, Escort Vehicles, Commercial Vans, Construction & Agricultural Equipment |
| Light Function / Color | Amber Flashing & Rotating |
| Lens Color | Clear |
| Housing Color | Black Base with Clear Cover |
| Number of Flash Patterns | 8 |
| Names of Flash Patterns | 1. Alternating (Side to Side) - Octa, 2. Alternating (Front to Back) - Octa, 3. Rotating (Clockwise), 4. Rotating (Counter Clockwise), 5. Quick/side to side, 6. Quick/quad, 7. Single (ECE R65), 8. Steady on |
| Theoretical Power (Watts) | 72W (72x 1W LEDs) |
| Current Draw (Amps @ 12V / 24V) | 1.18A @ 12V / 0.84A @ 24V |
| Operating Voltage Range | DC 12-24V |
| Connection Type / Cable Length | Cigarette Plug (3m cable with controller + 1.5m cable with cigarette plug) |
| ECE Approvals | ECE R65 TA1 (E9 00.1851) |
| EMC / Suppression Rating | ECE R10 (E9 06.11372), CISPR 25 Class 3, CE, UKCA |
| Protection Rating (IP) | IP66 / IP67 |
| Operating Temperature Range (°C) | -30°C to +60°C |
| Housing / Base Material | Polycarbonate (PC) with UV resistance |
| Lens Material | Polycarbonate (PC) with UV resistance |

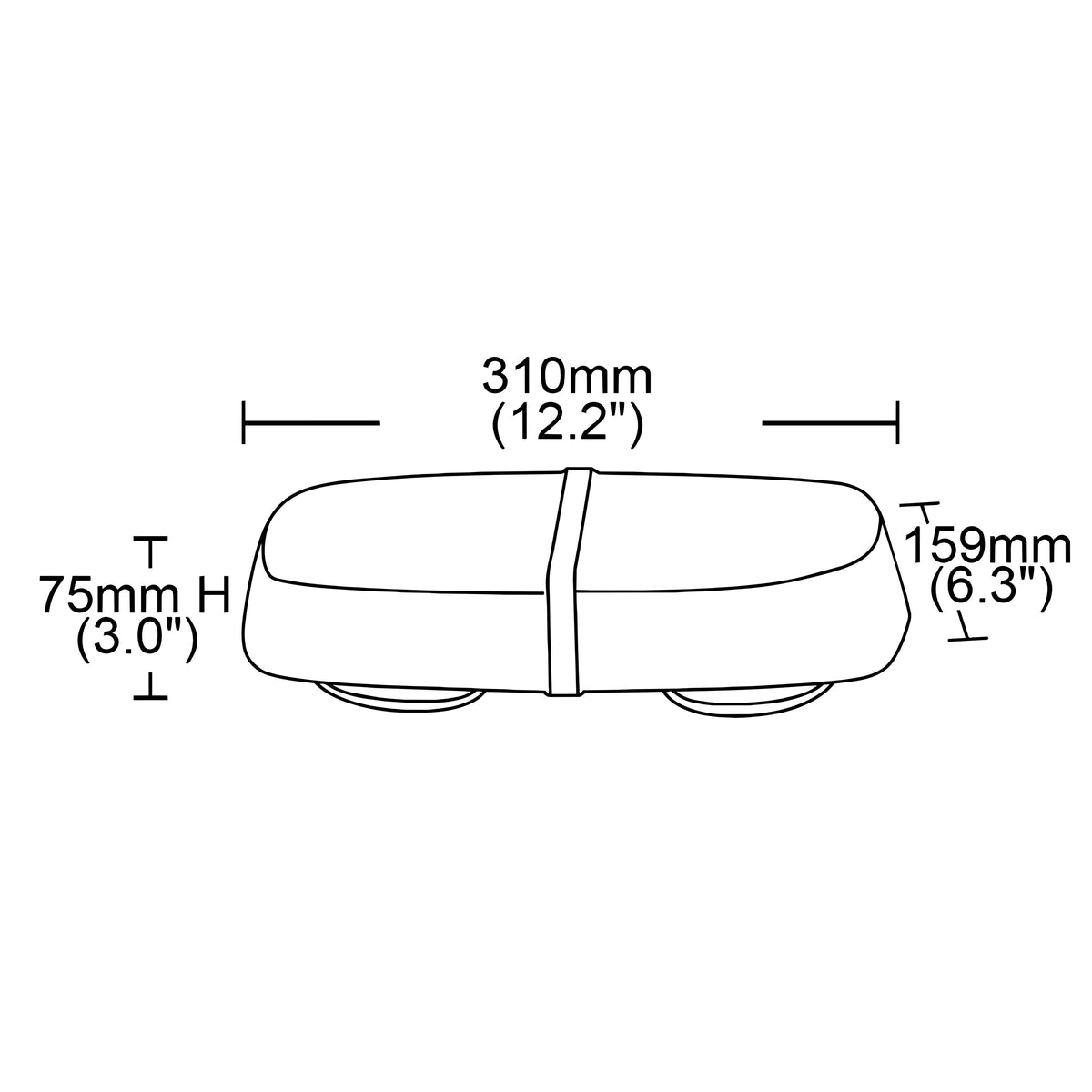

| Height (mm) | 75 mm (with magnetic base) |
| Length / width | Length: 310 mm, Width: 159 mm |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

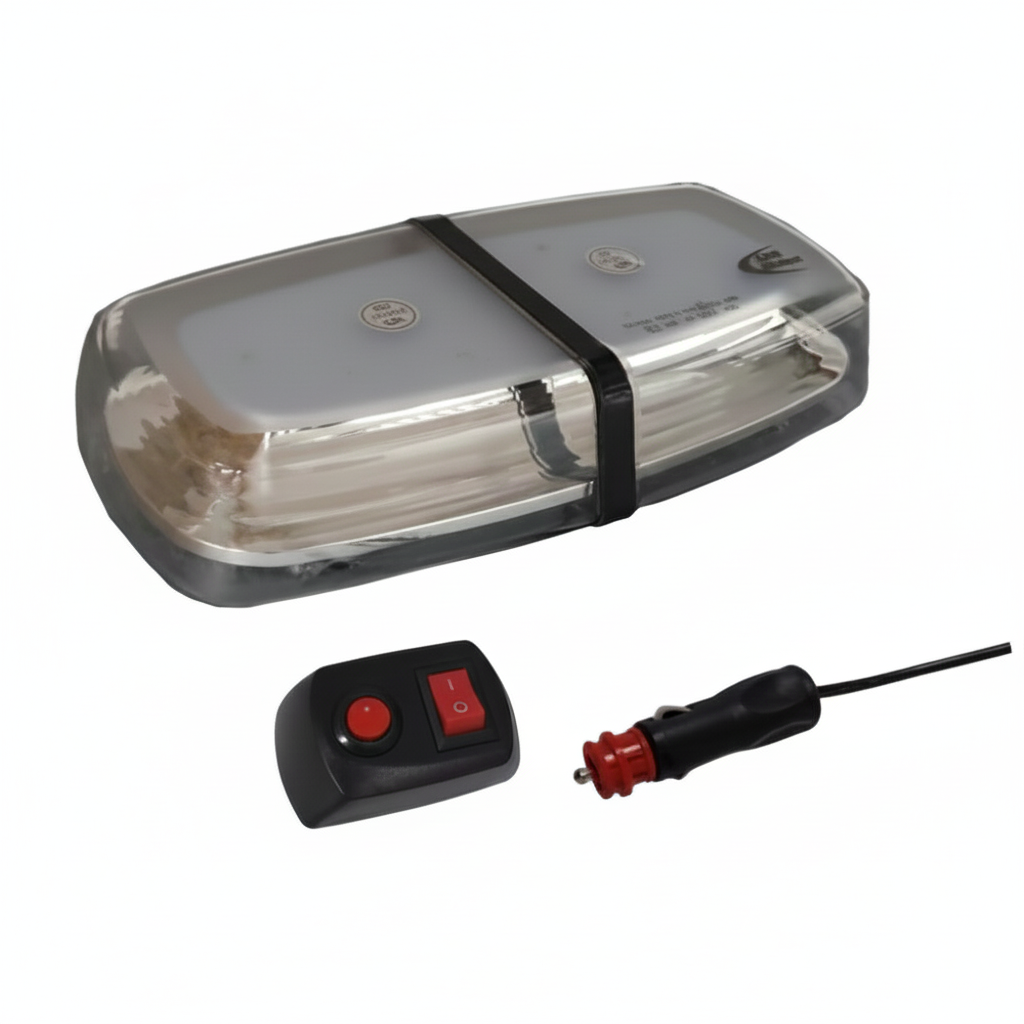

Magnetic LED mini warning bar with eight patterns
The LG656 uses 72 × 1W LEDs behind a clear UV-resistant polycarbonate cover to produce amber warning light. Its low-profile magnetic base allows attachment to a suitable steel mounting surface. Dimensions are 310 × 159 × 75 mm including the magnetic base.
Eight selectable modes include alternating flashes, clockwise/counter-clockwise rotation, single flash and steady light. The single-flash mode is identified as ECE R65 in the specification. A 4.5 m total cable combines an integrated controller and cigarette-lighter plug. It operates on 12–24V DC and features memory, reverse-polarity protection, IP66/IP67 protection and CISPR25 Class 3 suppression. The 72W figure is theoretical LED power; specified current draw is 1.18A at 12V and 0.84A at 24V.
