9-inch LED Driving Light with Boost Function – LG986
Specifications
| Part number | LG986 |
|---|---|
| EAN / barcode | 4255929208242 |
| Operating voltage | 10–30 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -30°C to +65°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; adjustable bolt-on bracket |
| Other conformity / EMC | CE, RoHS, CISPR 25 Class 3 |
| Light functions | ECE driving mode; off-road Boost mode; white or amber position light |
| LED configuration | OSRAM LEDs |
| Power rating / consumption | 144 W nominal LED rating |
| Luminous flux | Effective: Boost 5,226 lm / ECE 1,629 lm; raw 11,000 lm |
| Beam pattern / range | 1 lux: ECE 335 m / Boost 768 m (manufacturer chart) |
| Connection / cable | 4-pin DT; 600 mm cable + 350 mm extension |
| Approvals | ECE R148, R149, R10 |
| Width / length | 232.76 mm |
| Height | 217.63 mm housing, excluding bracket |
| Depth | 83.5 mm |
| Wire functions | Black: ground (-); red: driving (+); white: white position (+); blue: amber position (+) |
| Included | 1 light, mounting bracket(s), screws and DT connector |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

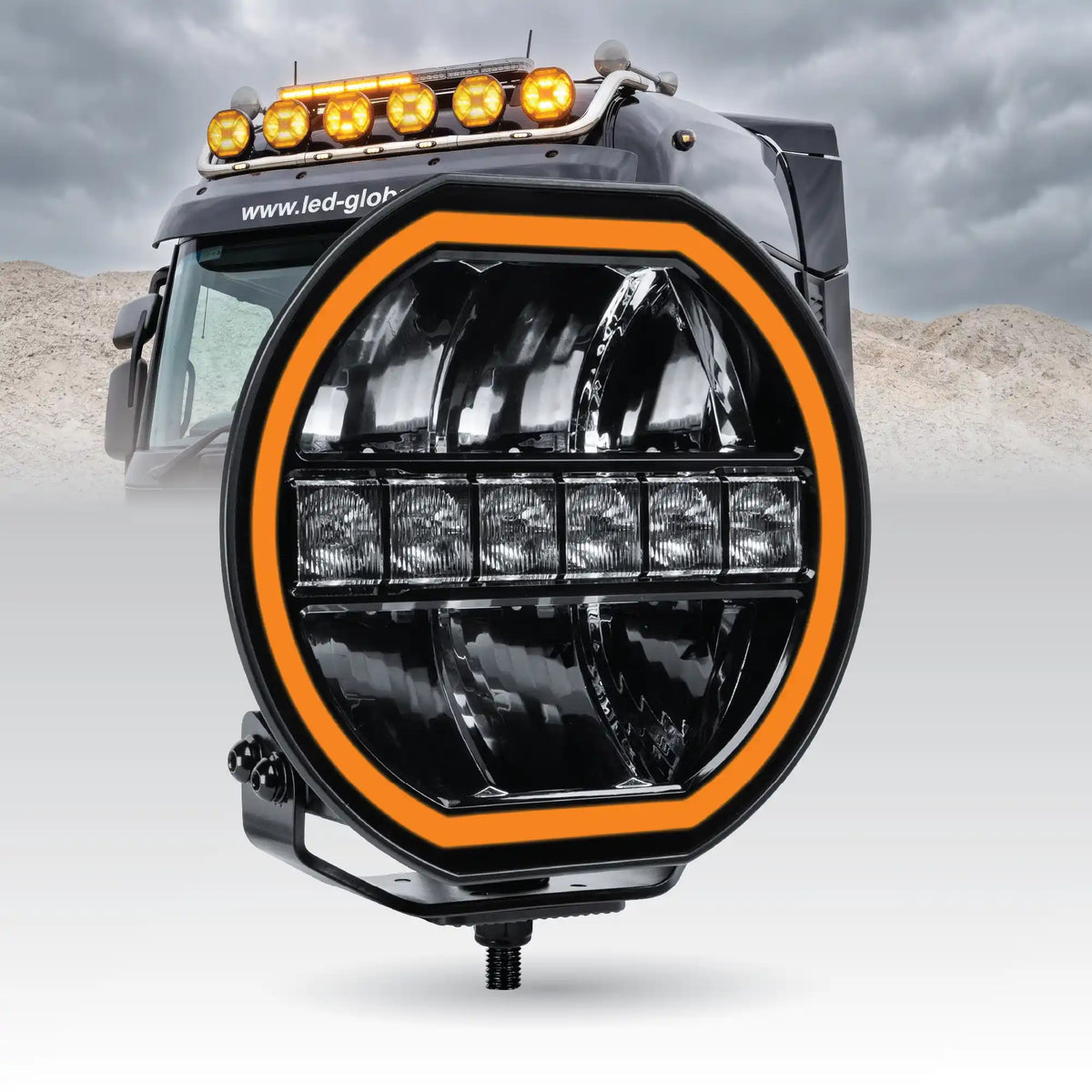

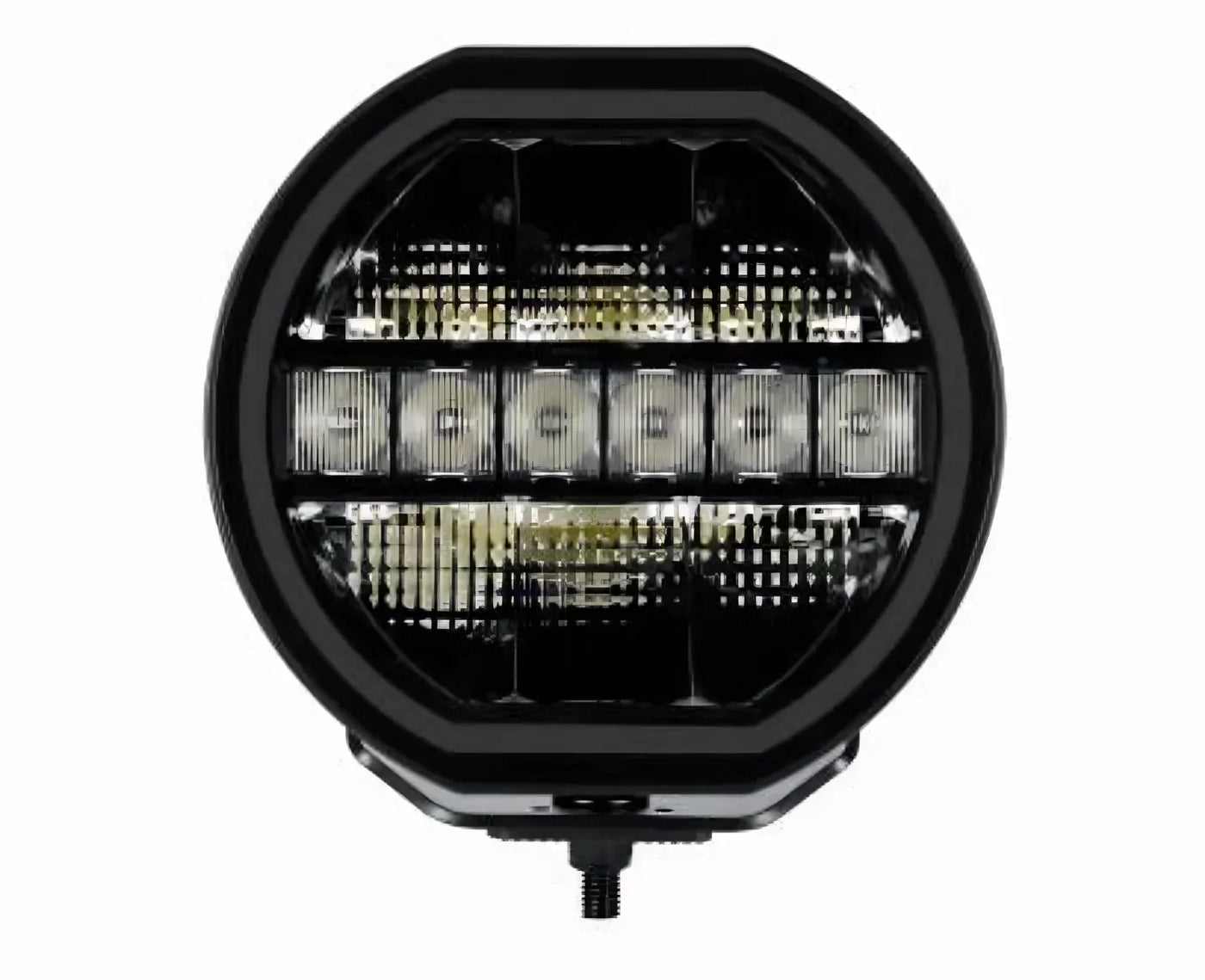

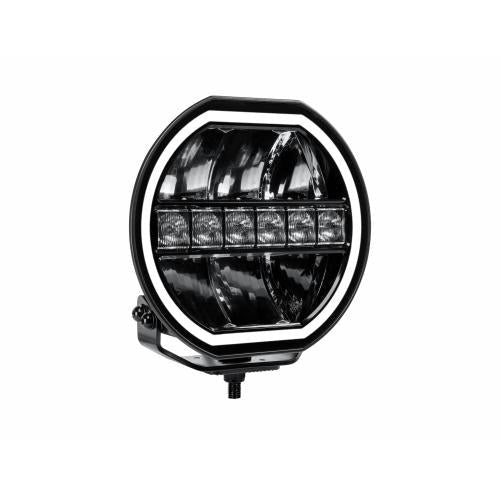

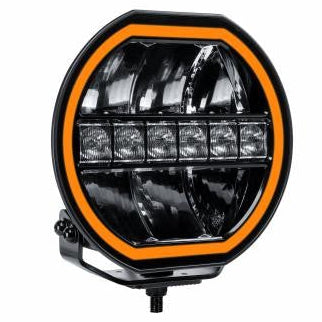

9-inch LED Driving Light with Boost Function – LG986

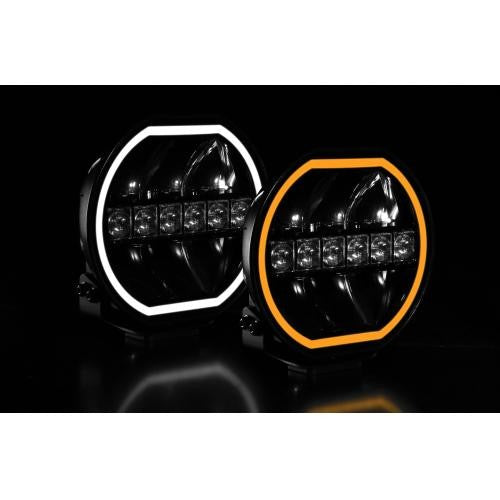

The LG986 offers an ECE driving mode and a separate off-road Boost mode, with selectable white or amber position lighting. The effective light output is 1,629 lumens in ECE mode and 5,226 lumens in Boost mode; the nominal LED rating is 144 W.
The supplied photometric chart shows 1 lux at 335 m in ECE mode and 768 m in Boost mode. These beam-chart values describe the manufacturer’s test conditions; output depends on the operating mode and temperature.
The aluminium housing and PC lens are sealed to IP68/IP69K. A stainless steel bracket and 4-pin DT harness are supplied. Housing dimensions are 232.76 × 217.63 × 83.5 mm; allow extra clearance for the bracket and mounting bolt.
