9-inch Dual-Power LED Driving Light – LG931
Specifications
| Part number | LG931 |
|---|---|
| EAN / barcode | 4255929208082 |
| Operating voltage | 9–36 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -40°C to +60°C |
| Housing | ADC12 die-cast aluminium |
| Lens | Lexan polycarbonate |
| Bracket / mounting | Adjustable stainless steel; M10 bolt / 10.5 mm hole |
| Other conformity / EMC | CE, RoHS |
| Light functions | ECE driving; off-road Boost; dynamic white/amber position lights |
| LED configuration | 12 LMP LEDs: 8 × 10 W + 4 × 20 W |
| Power rating / consumption | 160 W nominal LED rating |
| Luminous flux | Boost: 11,500 lm effective / 14,500 lm raw |

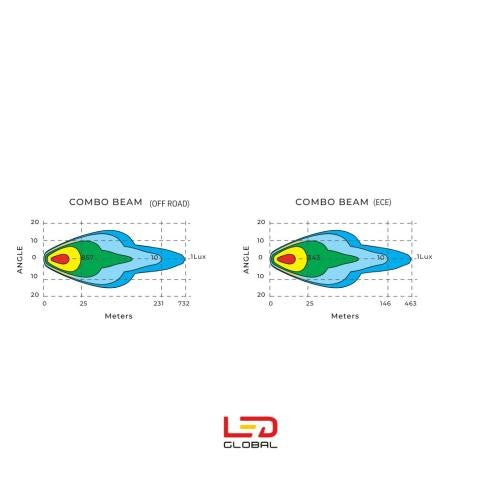

| Beam pattern / range | 25° combo; 1 lux: ECE 463 m / Boost 732 m; peak 536,000 cd |
| Current draw | ECE: 3.6 A at 12 V / 1.8 A at 24 V; Boost: 13.8 A / 6.0 A |
| Position light consumption | 0.6 A at 12 V / 0.3 A at 24 V |
| Connection / cable | 500 mm; 2-pin DTP power connector and function leads |
| Approvals | ECE R10, R148, R149; Ref. 50 |
| Width / length | 220 mm |
| Height | 235 mm with bracket |
| Depth | 85.5 mm |
| Wire functions | Black: ground (-); red: driving (+); white: white position (+); yellow: amber position (+); green: ECE activation (+) |
| Included | 1 lamp, stainless steel bracket, hardware and manual |
| Features | Electronic thermal management; dynamic position lights |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
9-inch Dual-Power LED Driving Light – LG931
The LG931 combines an ECE driving mode with a separate off-road Boost mode. Its 25° combo beam reaches 463 m at 1 lux in ECE mode and 732 m in Boost mode; Boost output is 11,500 effective lumens, compared with 14,500 raw lumens.

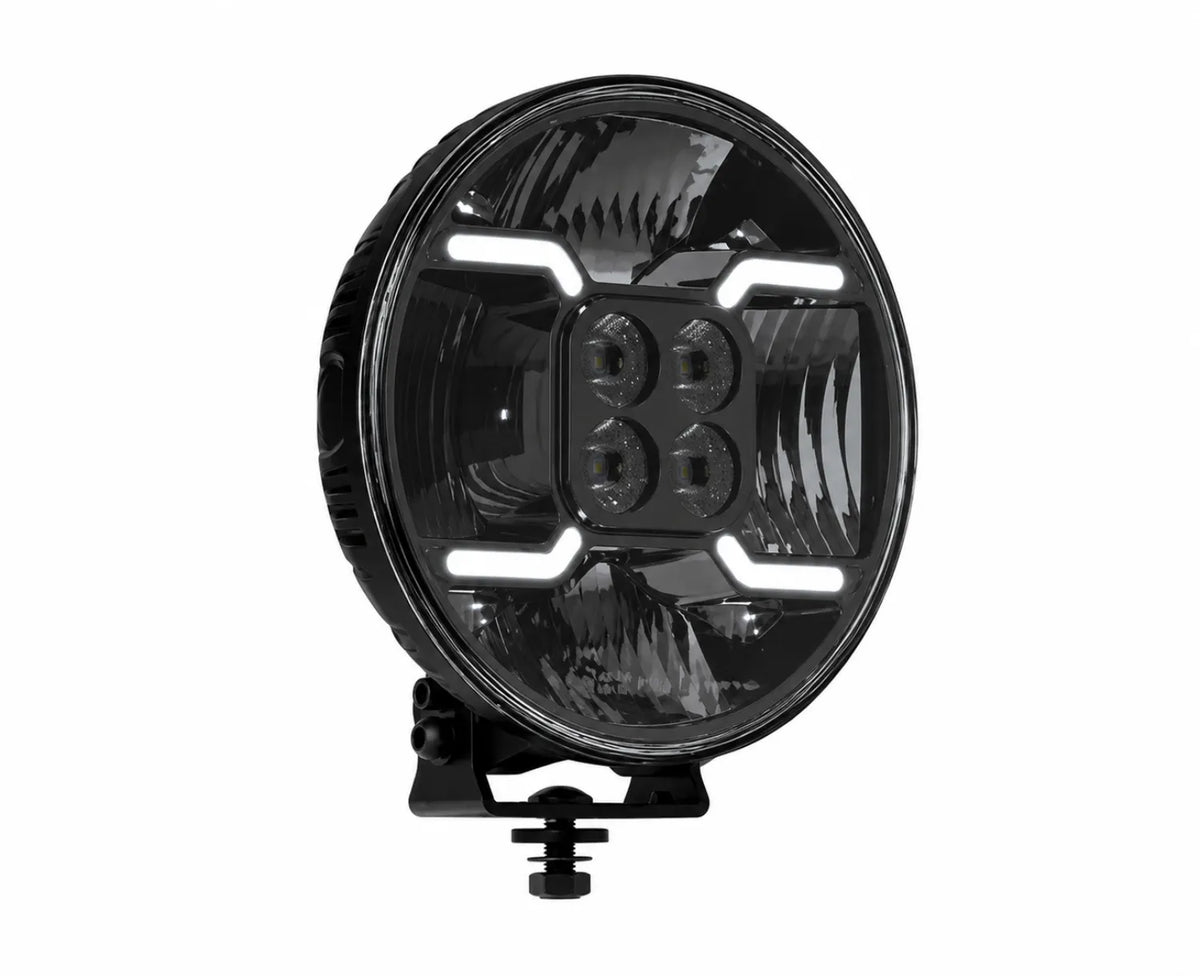

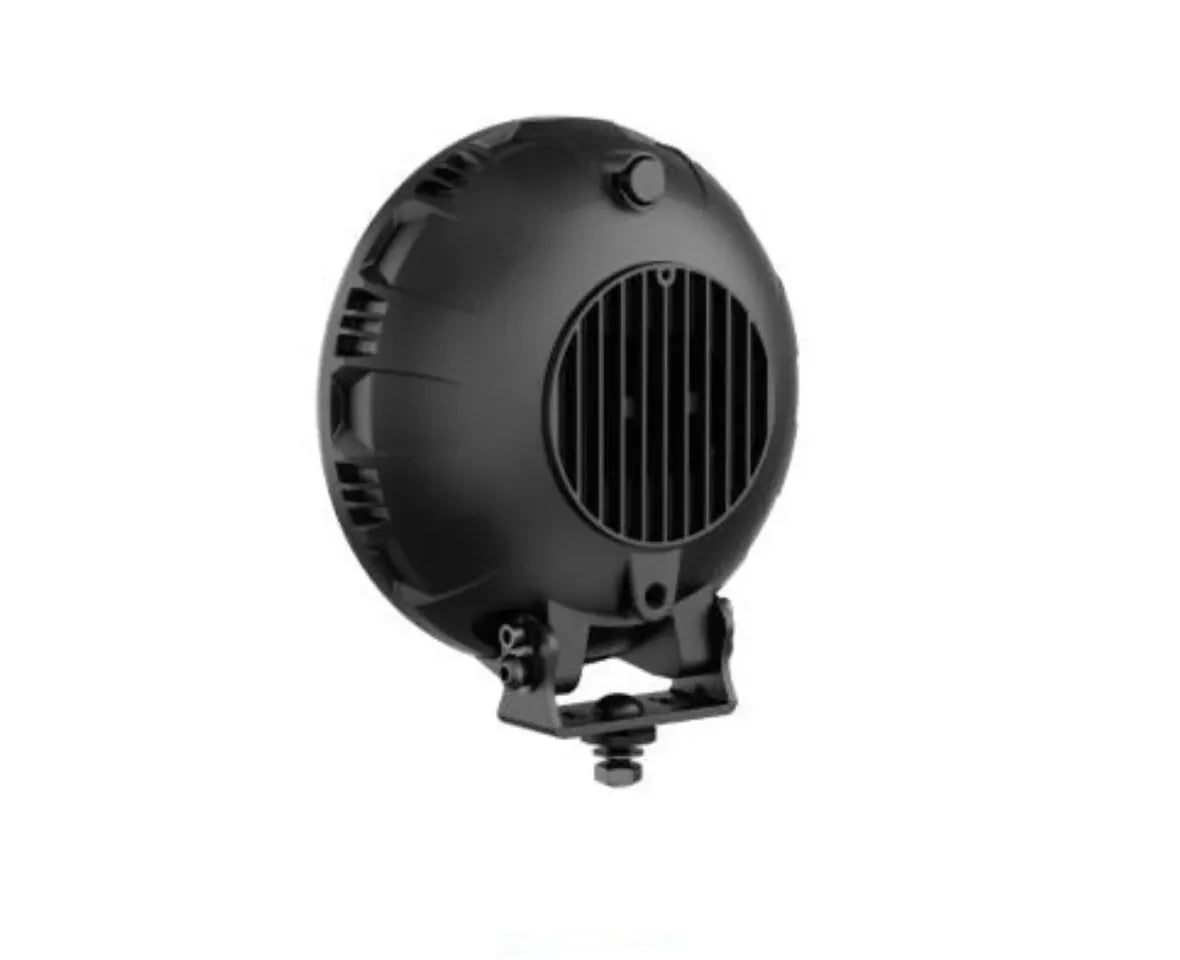

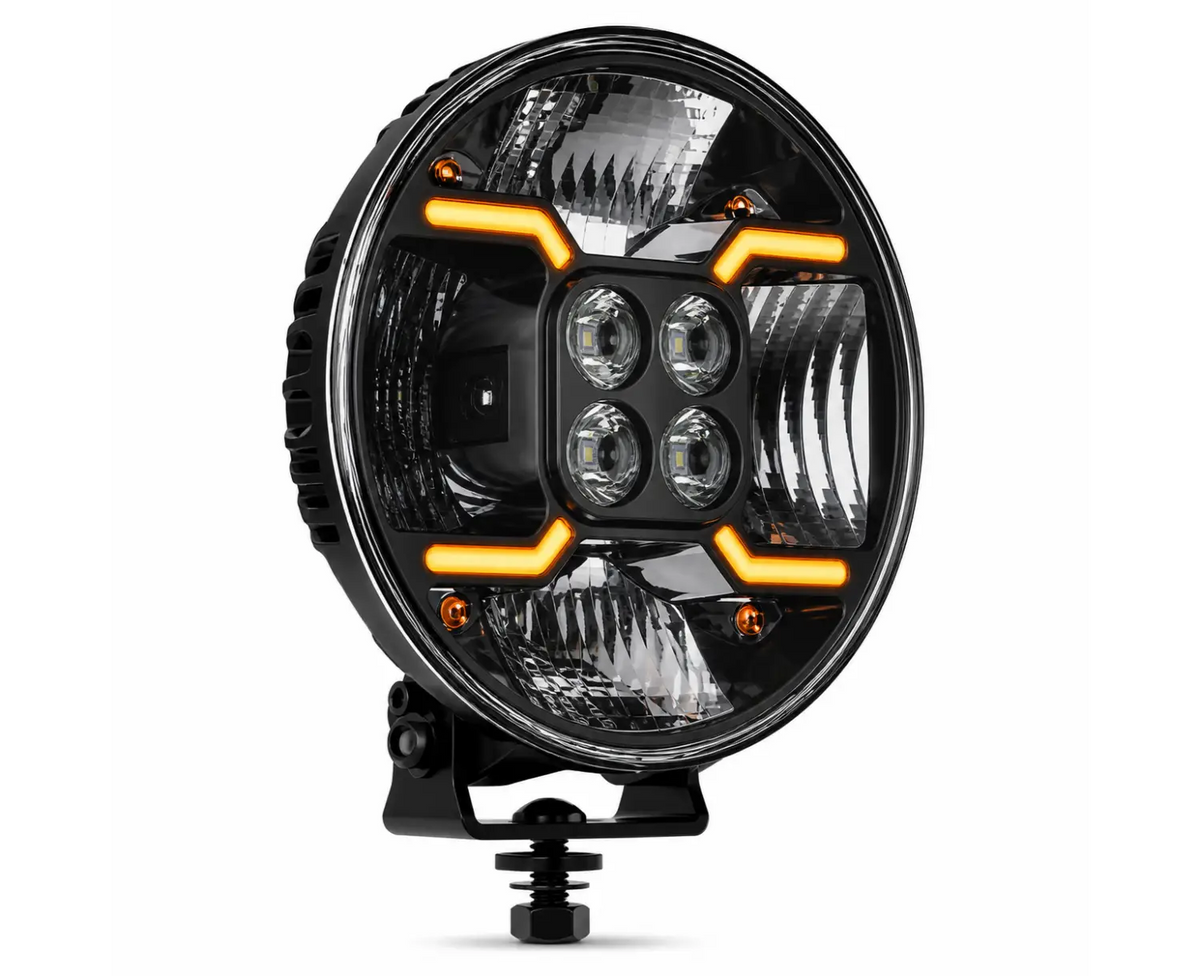

Dynamic white and amber position lights complement the main beam. The ADC12 aluminium housing, Lexan PC lens and stainless steel bracket provide a durable mounting assembly, with IP68/IP69K sealing and electronic thermal management.
The lamp measures 220 mm wide, 235 mm high with its bracket and 85.5 mm deep. Red and black power the Boost beam; adding the green activation wire selects ECE mode.
