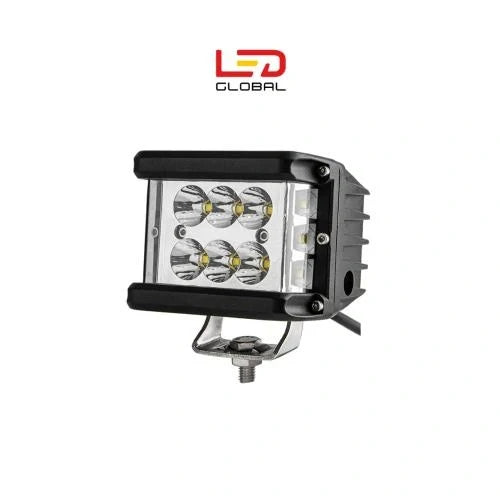

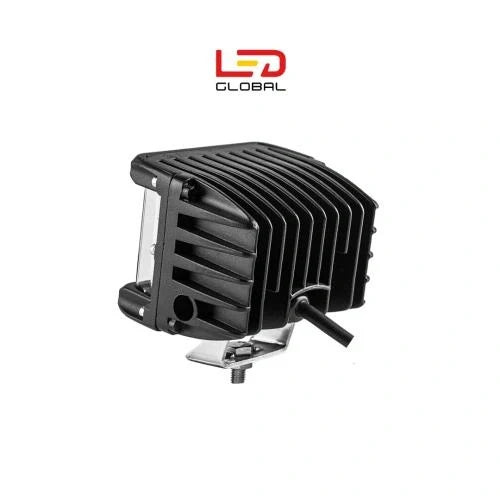

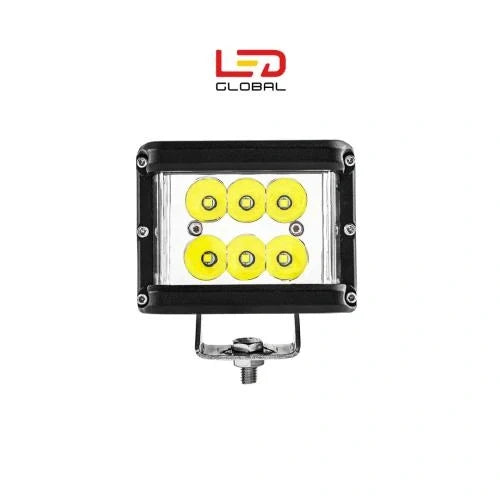

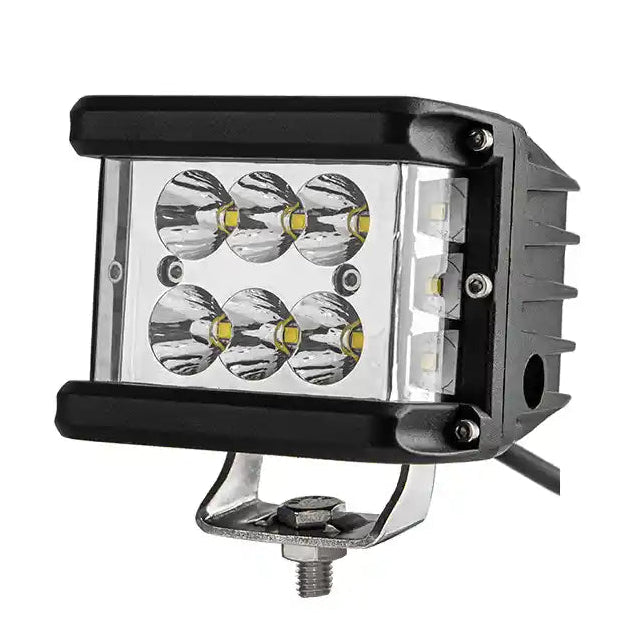

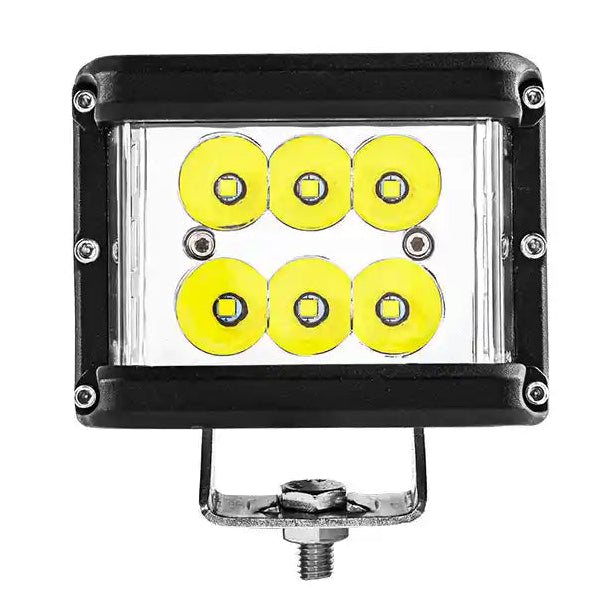

60 Watt LED Spot Work Light - LG809
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG809 |
| EAN / Barcode | 4255929220763 |
| Product Type | LED Work Light |
| Included in Box | 1x Work Light, Stainless Steel Bracket, Screws |

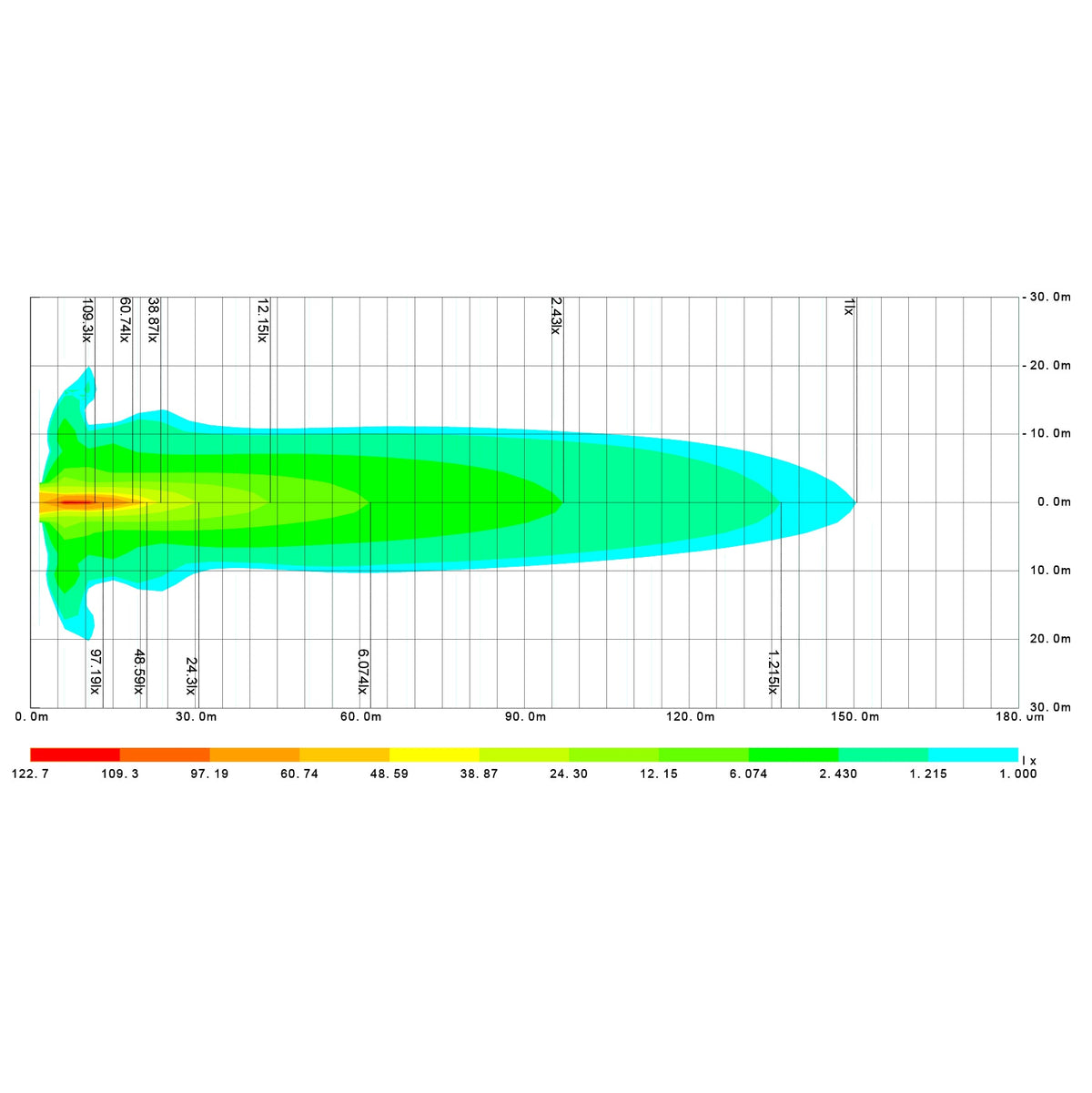

| Beam Pattern | Spot |
| Luminous Flux (Lumens) | 4800 lm |
| Color Temperature (K) | 5300 - 5700K |
| LED Brand/Type | OSRAM |
| Power Consumption (Watts) | 60W |
| Operating Voltage (V) | 10-30 Volt DC |
| Expected Service Life (Hours) | 50,000 hours |
| ECE Approvals | ECE R10 Approved (E9*10R05/01*16954*00) |
| EMC Rating | CISPR25 Class 4 |
| Protection Rating (IP) | IP68 / IP69K |
| Operating Temperature Range (°C) | -40°C to +80°C |
| Shape | Rectangle |

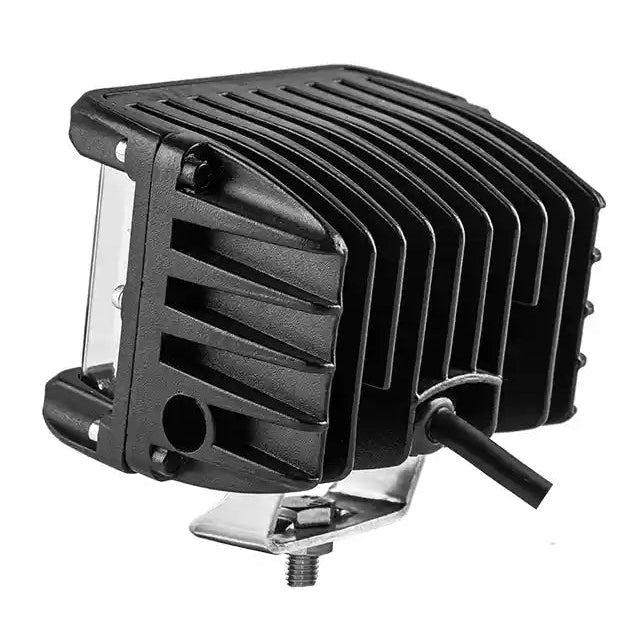

| Housing Material | Diecast Aluminum |
| Lens Material | Polycarbonate |

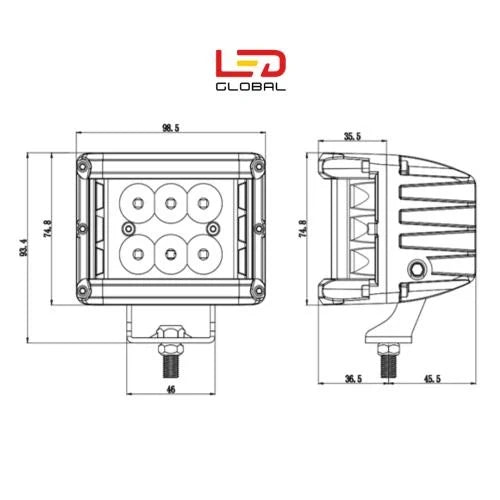

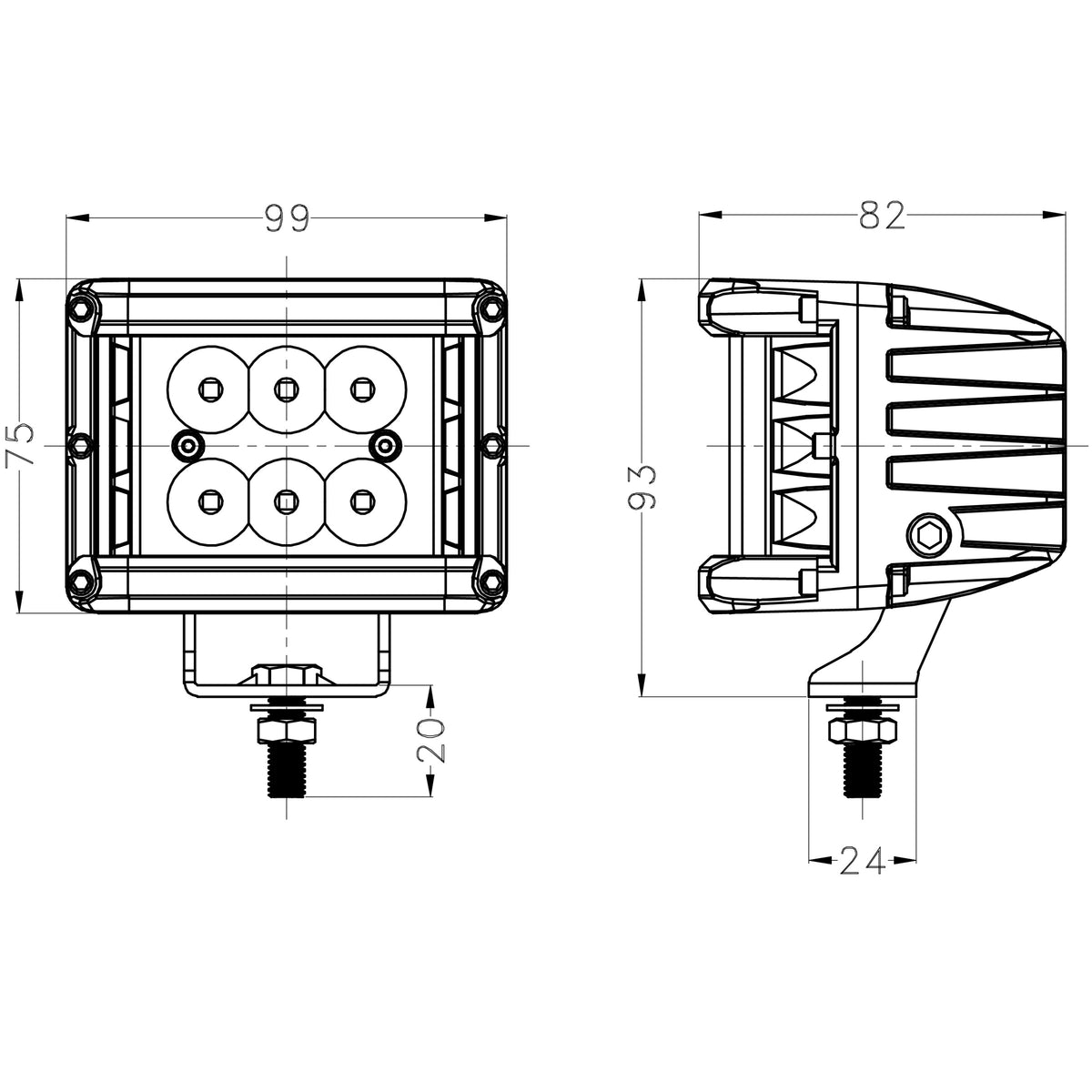

| Width (mm) | 99mm |
| Height (mm) | 75mm |
| Depth (mm) | 82mm |
| Mounting Type | Stainless Steel Bracket |
| Wiring | Black Line: Negative Pole (Ground) |
| Wiring | Red Line: Positive Pole (Power) |
| Connection Type | DT male & female connector |
| Overall height | 93 mm (including bracket; excluding mounting bolt) |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
60W LED spot work light with 4,800 lumens
The LG809 uses OSRAM LEDs to provide a focused spot beam at 5300–5700K. It operates on 10–30V DC and includes a stainless steel mounting bracket and screws.
The diecast aluminium housing and polycarbonate lens are rated IP68/IP69K. ECE R10 approval and CISPR25 Class 4 suppression help limit electromagnetic interference. A DT male and female connector and red positive/black ground wiring support installation. Expected service life is 50,000 hours.
