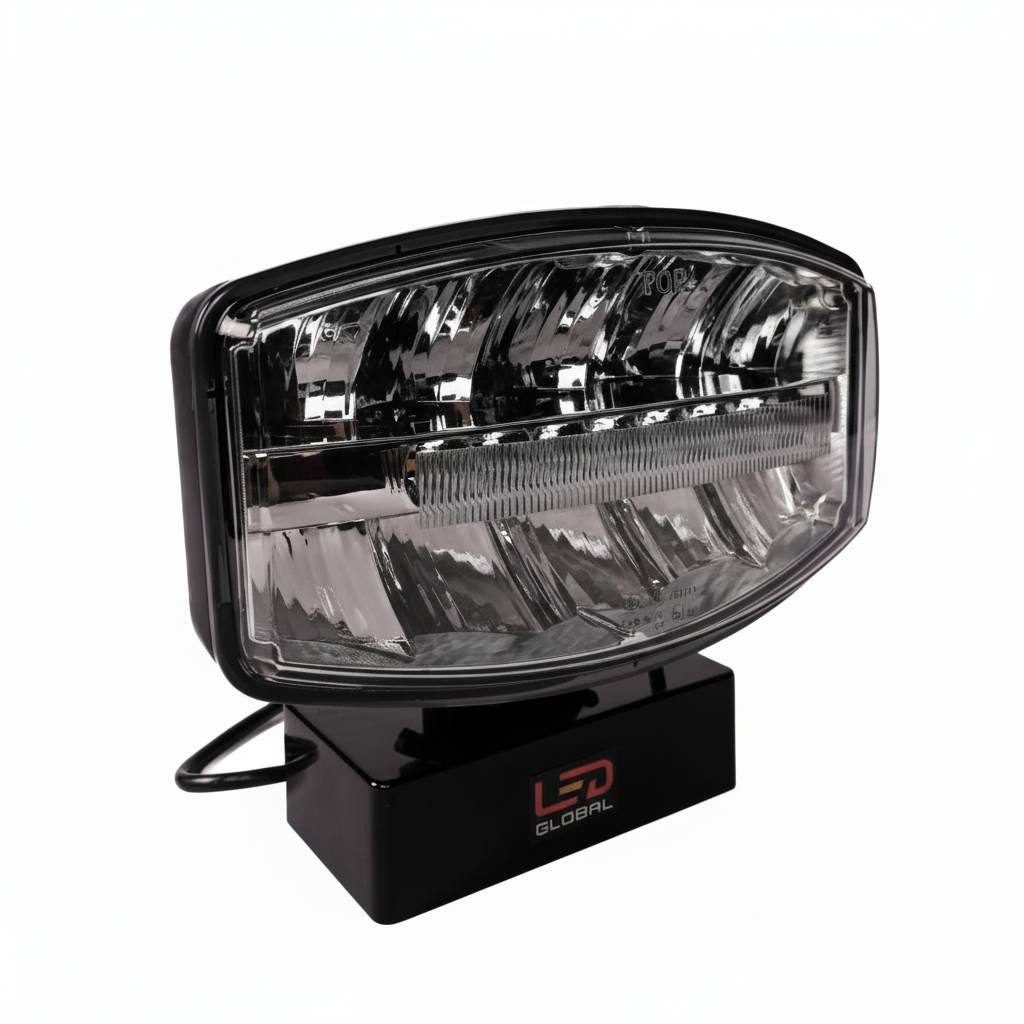

60 Watt Jumbo LED Driving Spot Light with 2 Colour Options Position Light - LG888
Specifications
| SKU | LG888 |
|---|---|
| EAN | 4255929221449 |
| Nominal model power | 60 W |
| LED configuration | 12 × 4 W high beam; 7 × 0.5 W position |
| Effective luminous flux | 2,100 lm |
| Raw luminous flux | 3,000 lm |
| Voltage | 10–30V DC |
| Functions | High beam; white / amber position light |
| Cable length | 400 mm |
| Protection | IP66 / IP69K |
| ECE approvals | R149, R148, R10 |
| EMC | CISPR25 Class 5 |
| Other conformity | CE, RoHS |
| Operating temperature | −40°C to +80°C |
| Housing | Graphene thermoplastic |
| Lens | Polycarbonate |
| Bracket | Adjustable stainless steel |

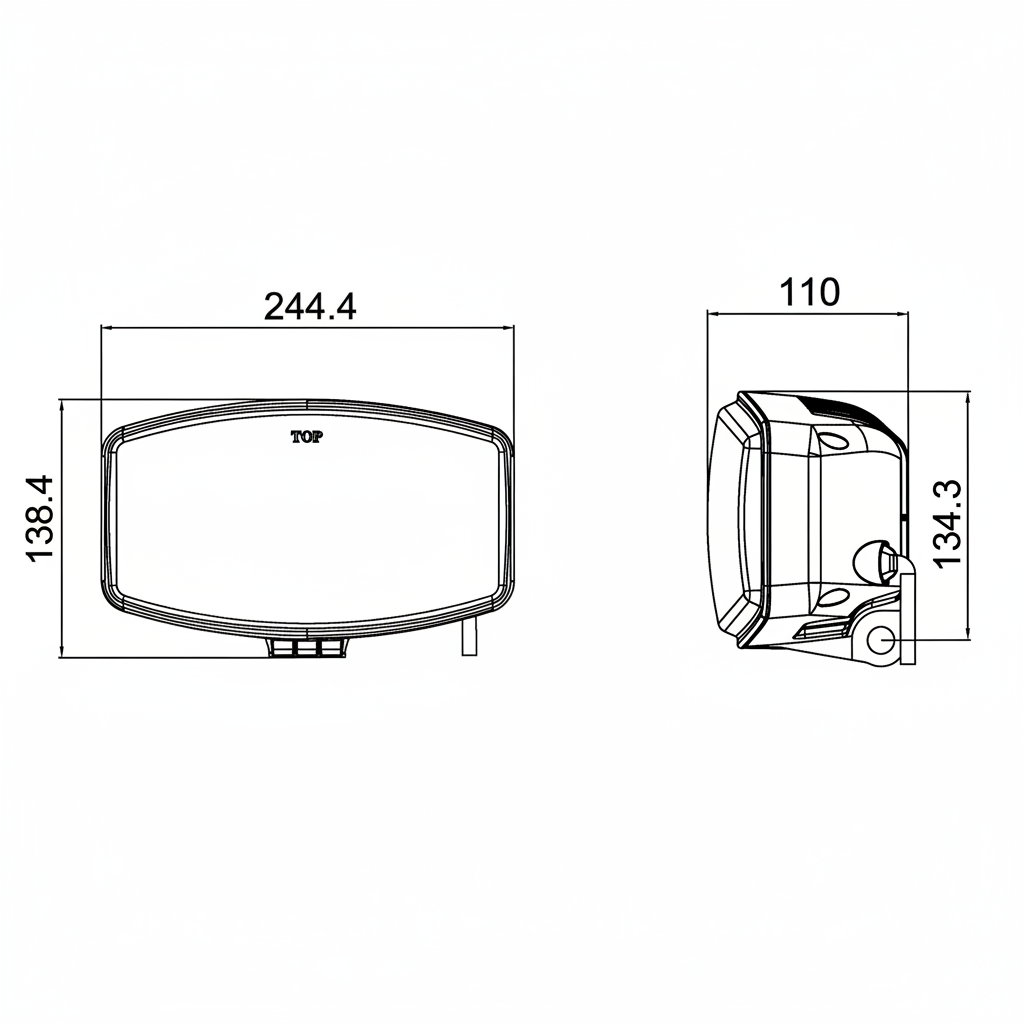

| Width | 244.4 mm (drawing) |
| Height shown in drawing | 138.4 mm |
| Depth | 110 mm |
| Wiring | Black: negative; red: high beam +; blue: white position +; yellow: amber position + |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

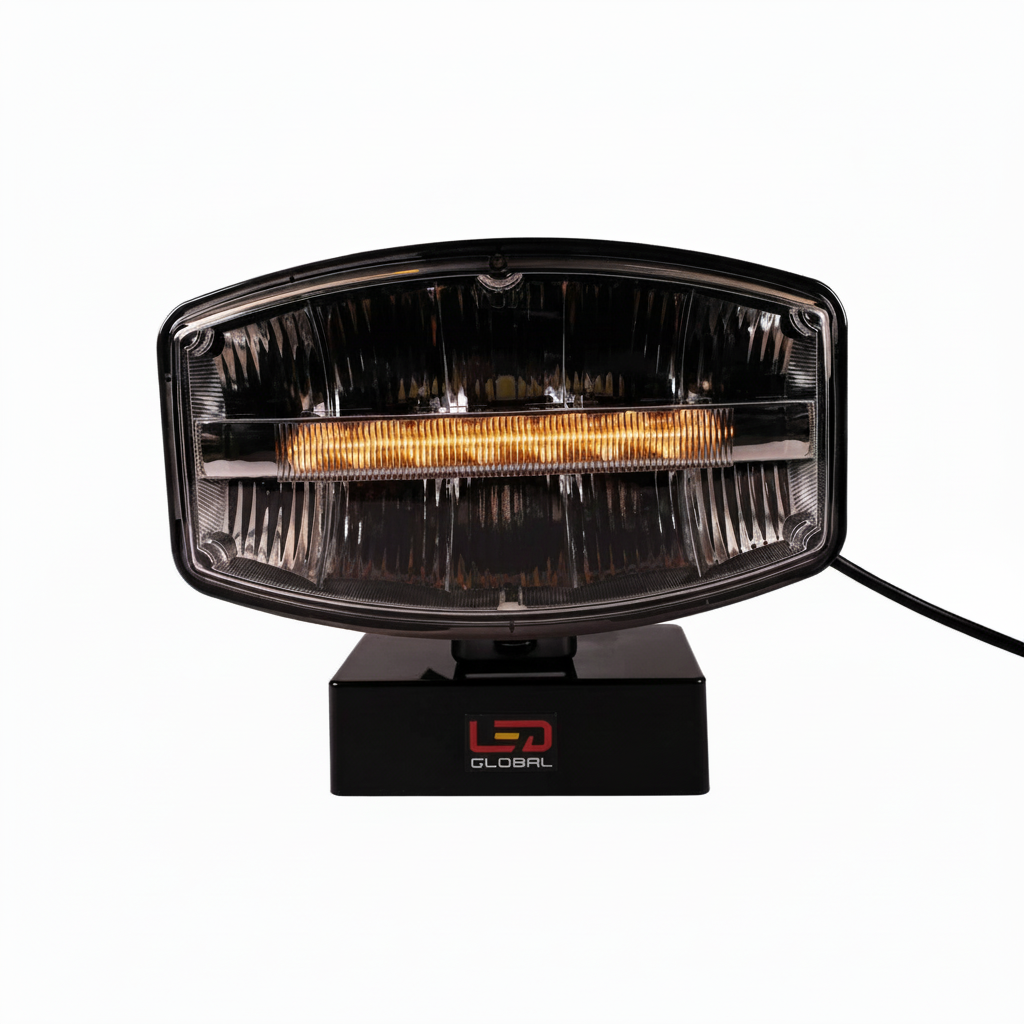

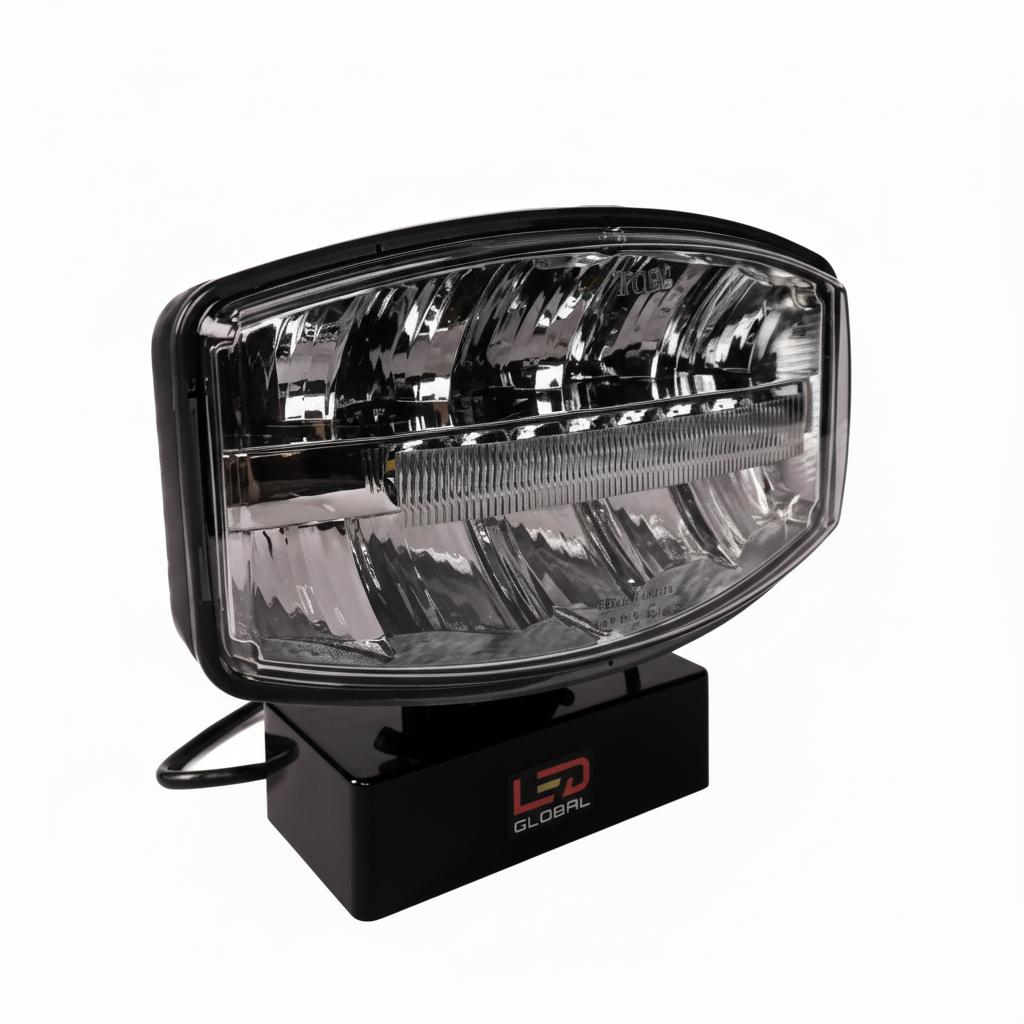

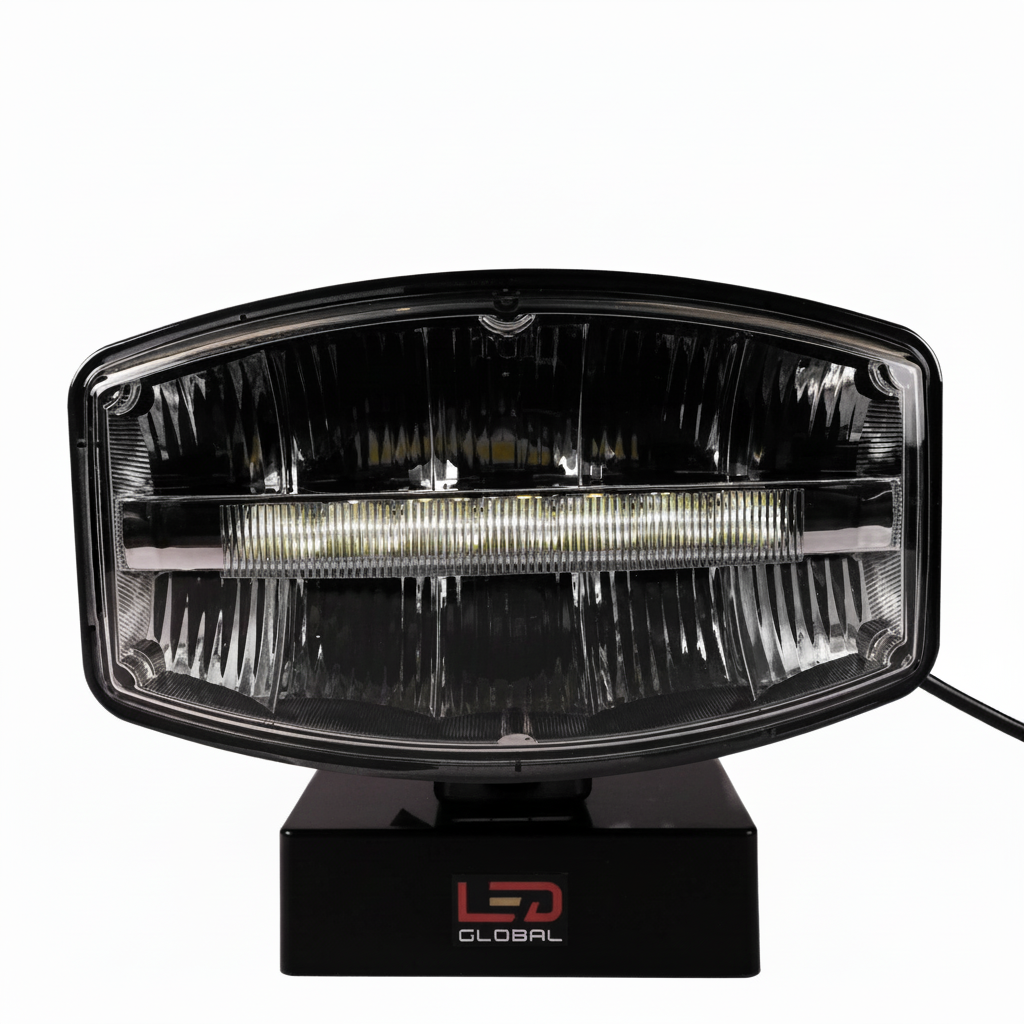

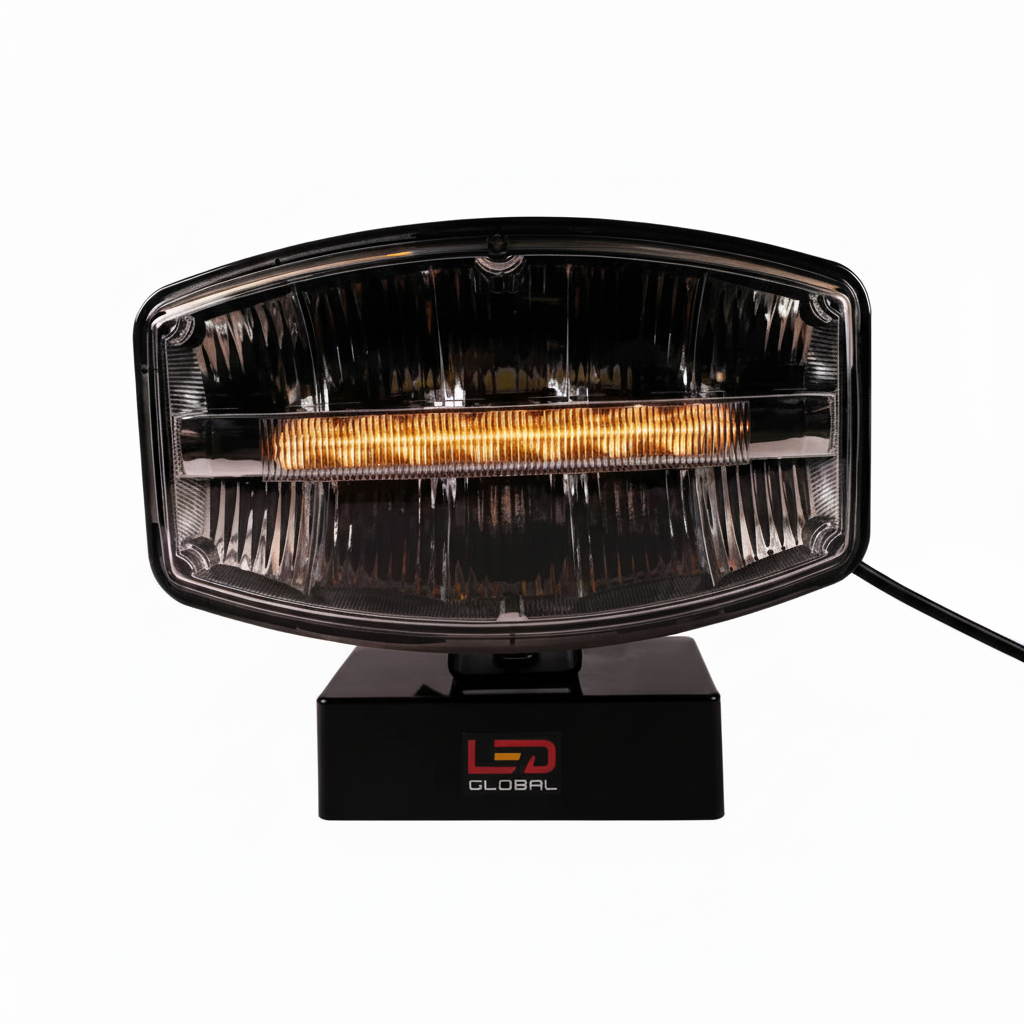

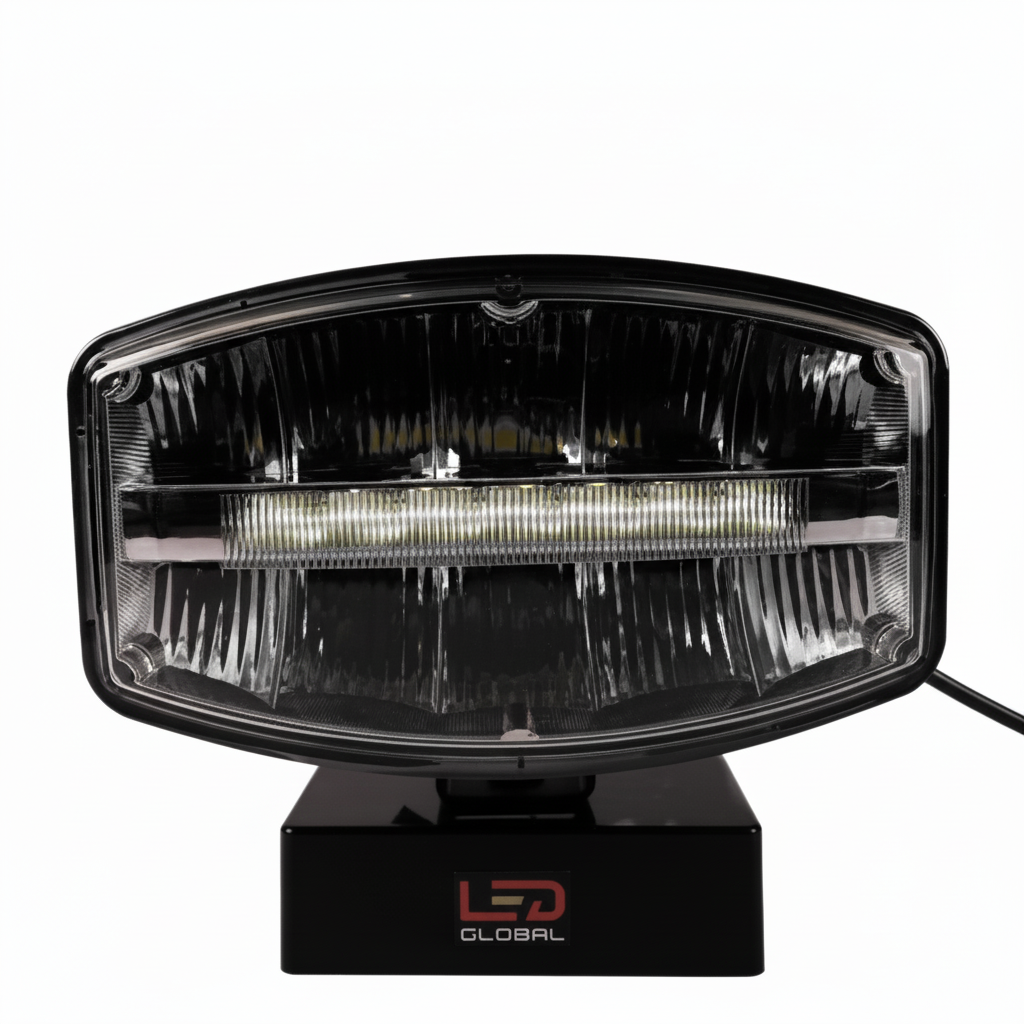

Oval LED spotlight with white and amber position light
The LG888 combines a high-beam spotlight with separate white and amber position-light functions. The updated specification lists 2,100 effective lumens and 3,000 raw lumens. Its 10–30V DC supply suits 12V and 24V vehicle systems.

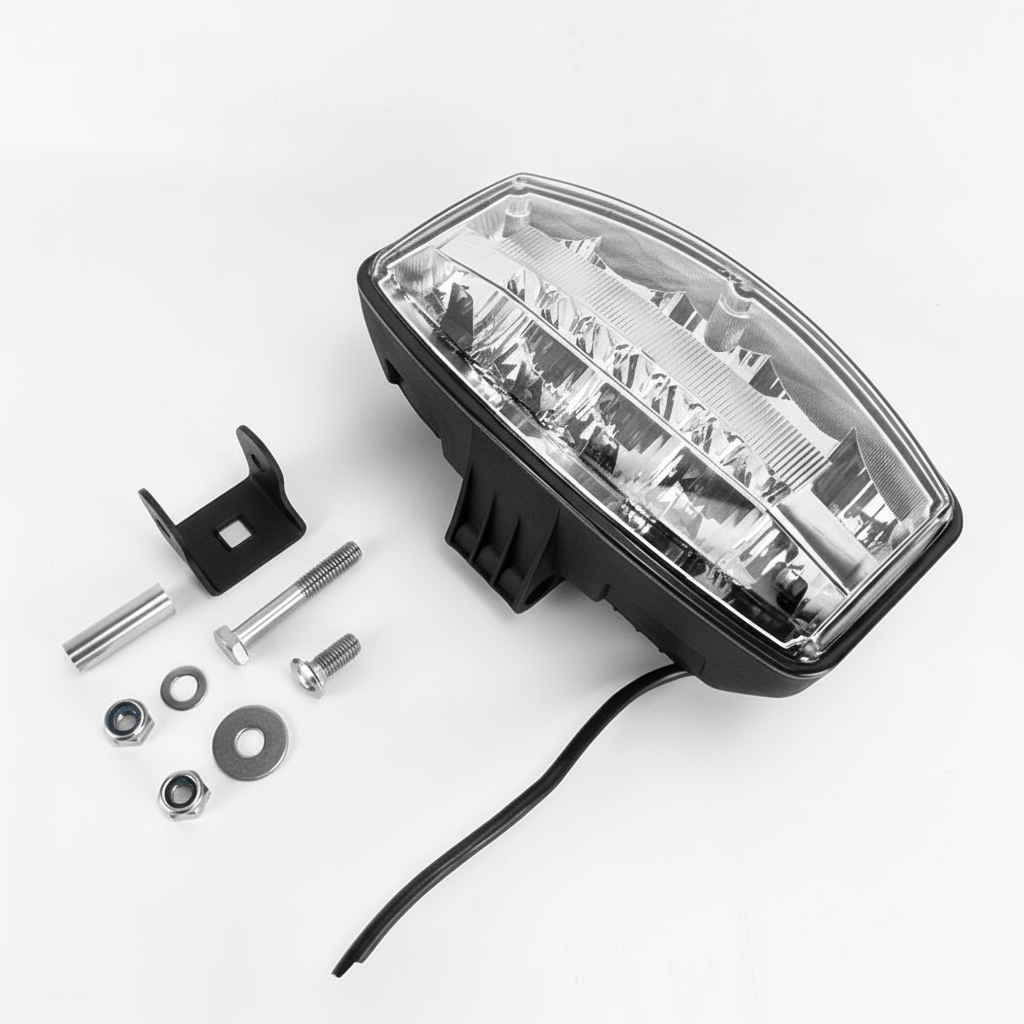

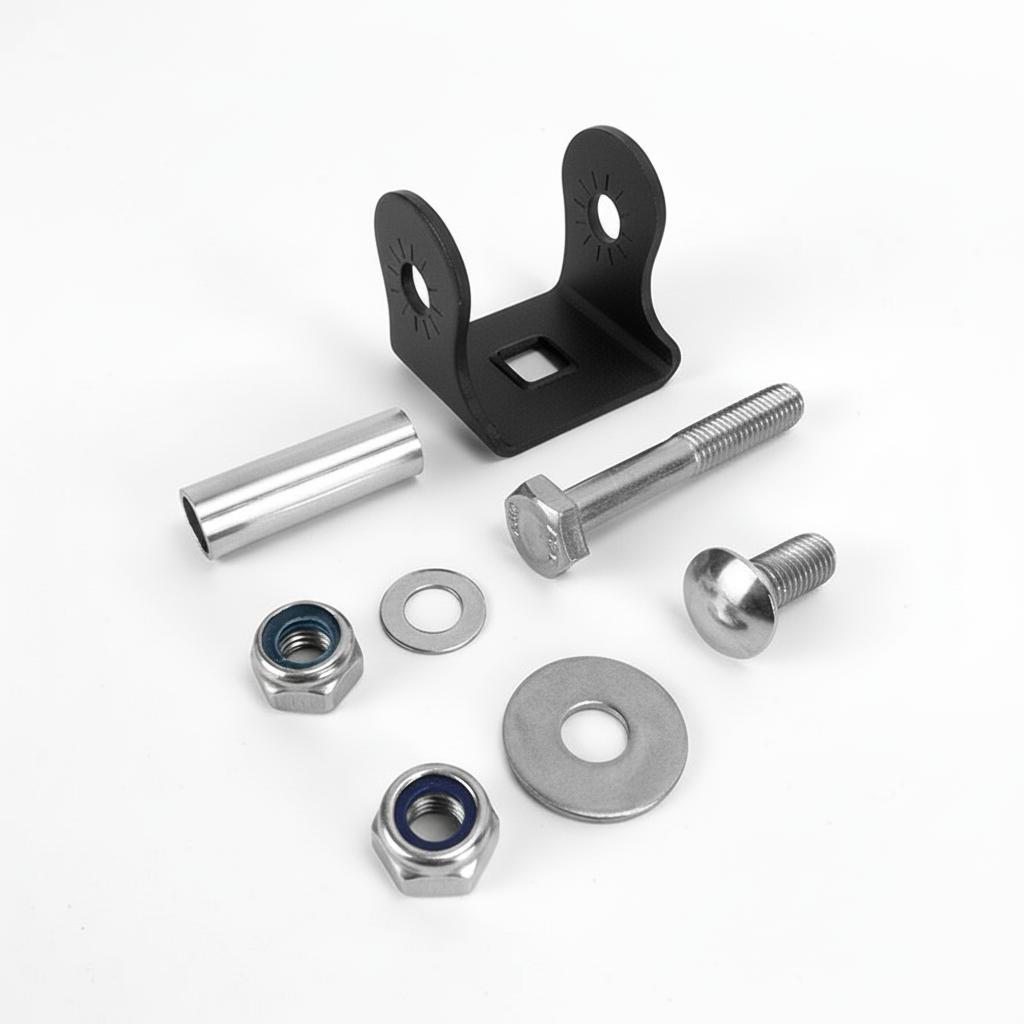

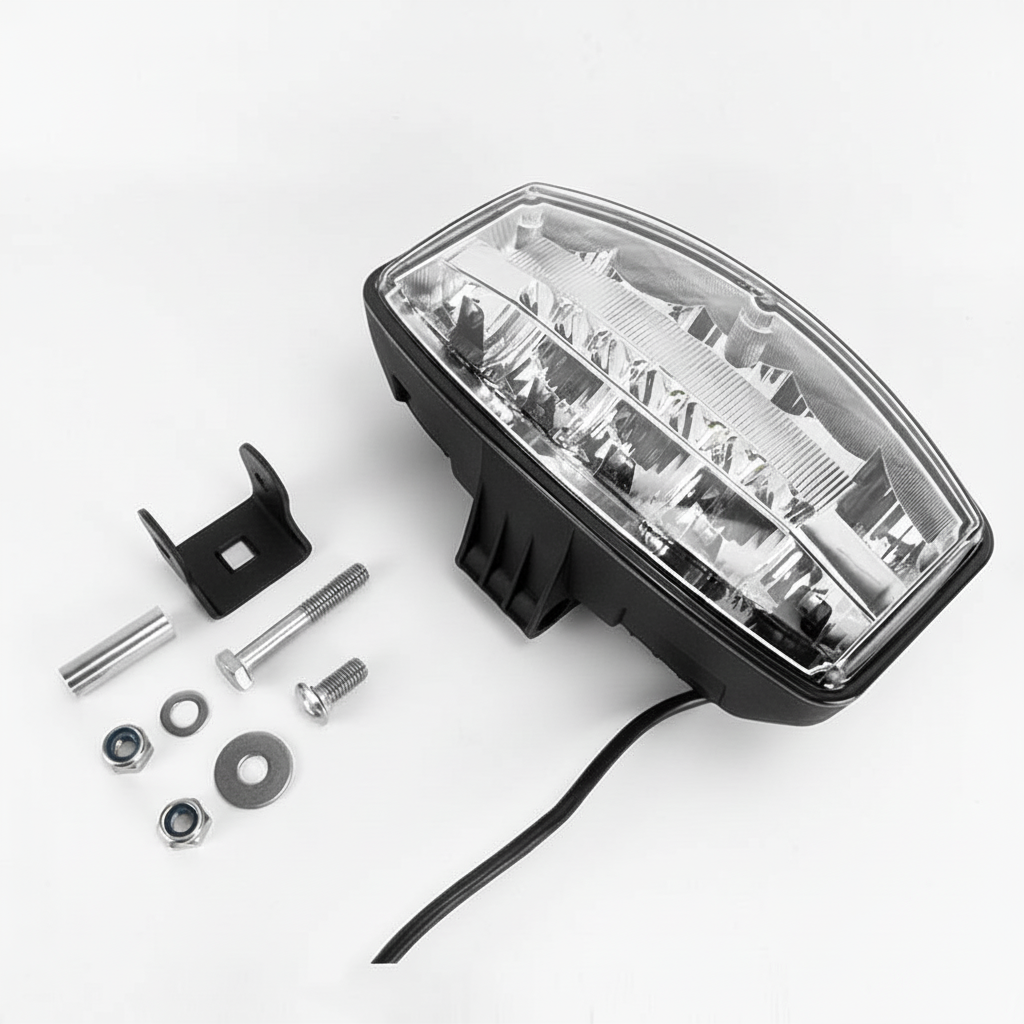

The corrosion-resistant graphene thermoplastic housing, polycarbonate lens and adjustable stainless steel bracket provide a compact mounting arrangement. IP66/IP69K protection and CISPR25 Class 5 suppression are specified. Supplied with a mounting bracket, hardware and a 400 mm cable.
