Driving Spot Light
60 Watt 7 LED Driving Light with Dual Colour Position Light - LG876
Specifications
| SKU | LG876 |
|---|---|
| EAN | 4255929221333 |
| Rated LED power | 60 W (4 × 10 W + 4 × 5 W) |
| Effective luminous flux | 4,800 lm |
| Raw luminous flux | 6,000 lm |
| Voltage | 9–36V DC |
| Colour temperature | 5700K |
| Beam | 30° combo; 1 lux at 406 m |
| Main light current | 4.0 A at 12V / 2.0 A at 24V |
| Position light current | 0.06 A at 12V / 0.03 A at 24V |
| Position light | White / amber |
| Protection | IP68 / IP69K |
| ECE approvals | R112 (Ref. 37.5), R7, R10 |
| Other conformity | CE, RoHS |
| Operating temperature | −40°C to +60°C |
| Housing | ADC12 diecast aluminium |
| Lens | Lexan polycarbonate |

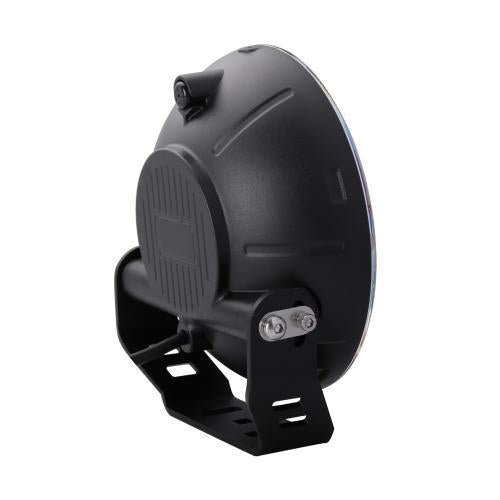

| Bracket | Adjustable SUS304 stainless steel U-bracket |
| Diameter | 180 mm |
| Height including bracket | 190 mm |
| Depth | 67.5 mm |
| Mounting hole | 10.5 mm |
| Wiring | Black: ground; red: driving light +; white: white position light +; yellow: amber position light + |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

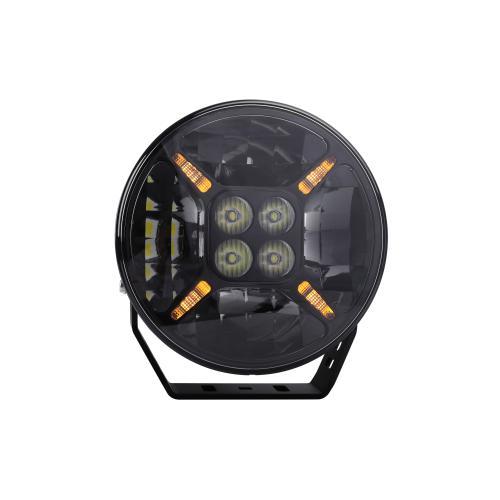

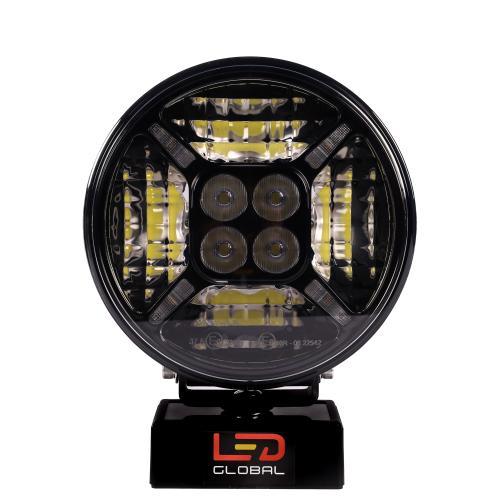

60W 7-inch LED driving light with dual-colour position light
The LG876 delivers 4,800 effective lumens from eight LEDs, combining a focused centre with wider illumination. Its 30° combo beam reaches 406 m at 1 lux. Separate white and amber position-light functions are integrated into the round housing.
Operating on 9–36V DC, it uses an ADC12 diecast aluminium housing, Lexan polycarbonate lens and adjustable SUS304 stainless steel U-bracket. IP68/IP69K protection, electronic thermal management and TIR/side-reflecting optics support demanding vehicle applications. The supplied kit includes the light, bracket, hardware and installation manual.
The listed ECE approvals do not apply when the amber position-light function is used.
