40 Watt LED Adjustable Mount Oval Work Light - LG847
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG847 |
| EAN / Barcode | 4255929221067 |
| Product Type | LED Work Light |
| Included in Box | 1x Work Light, Swivel Bracket (Bottom or Side Mount) |
| Ideal Applications | Massey Ferguson Tractors |
| Beam Pattern | Diffused Flood |
| Luminous Flux (Lumens) | 3200 Lumen |
| Color Temperature (K) | 5300-5700K |
| Number of LEDs | 8 LEDs |
| LED Brand/Type | CREE XTE LEDs (5W/PC) |
| Power Consumption (Watts) | 40 Watt |
| Operating Voltage (V) | 10-30 Volt DC |
| Expected Service Life (Hours) | 50,000h+ |
| ECE Approvals | E9-10R05.11636 Ext.01 |
| EMC Rating | CISPR25 Class 4 |
| Protection Rating (IP) | IP68/IP69K |
| Operating Temperature Range (°C) | -40°C to +80°C |
| Shape | Oval |
| Housing Material | Diecast Aluminium |
| Lens Material | Polycarbonate (PC) |

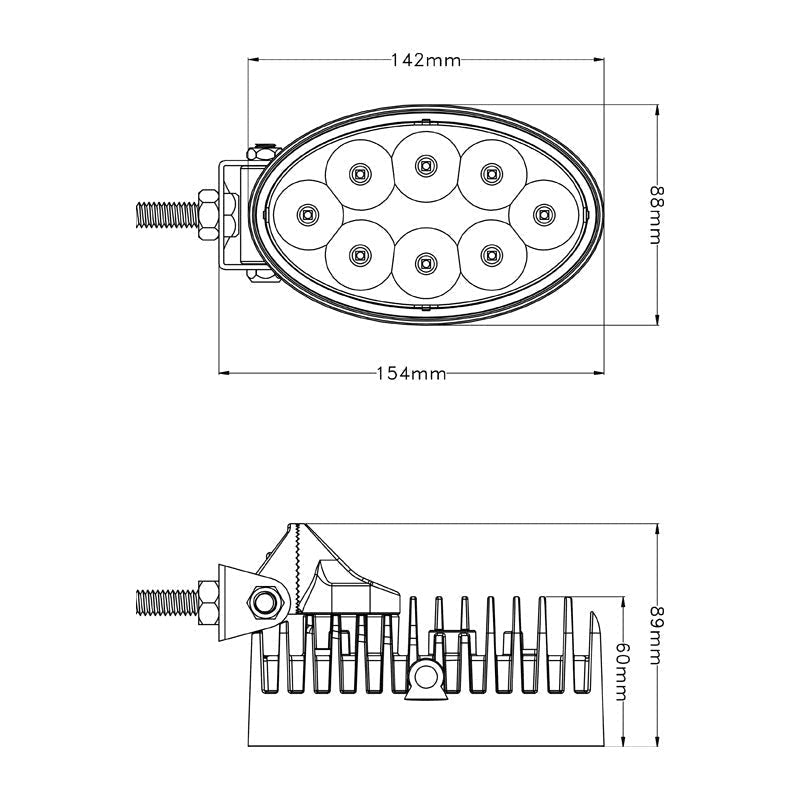

| Width (mm) | 142 mm |
| Height (mm) | 88 mm (housing) |
| Depth (mm) | 60 mm (housing) / 89 mm (overall) |

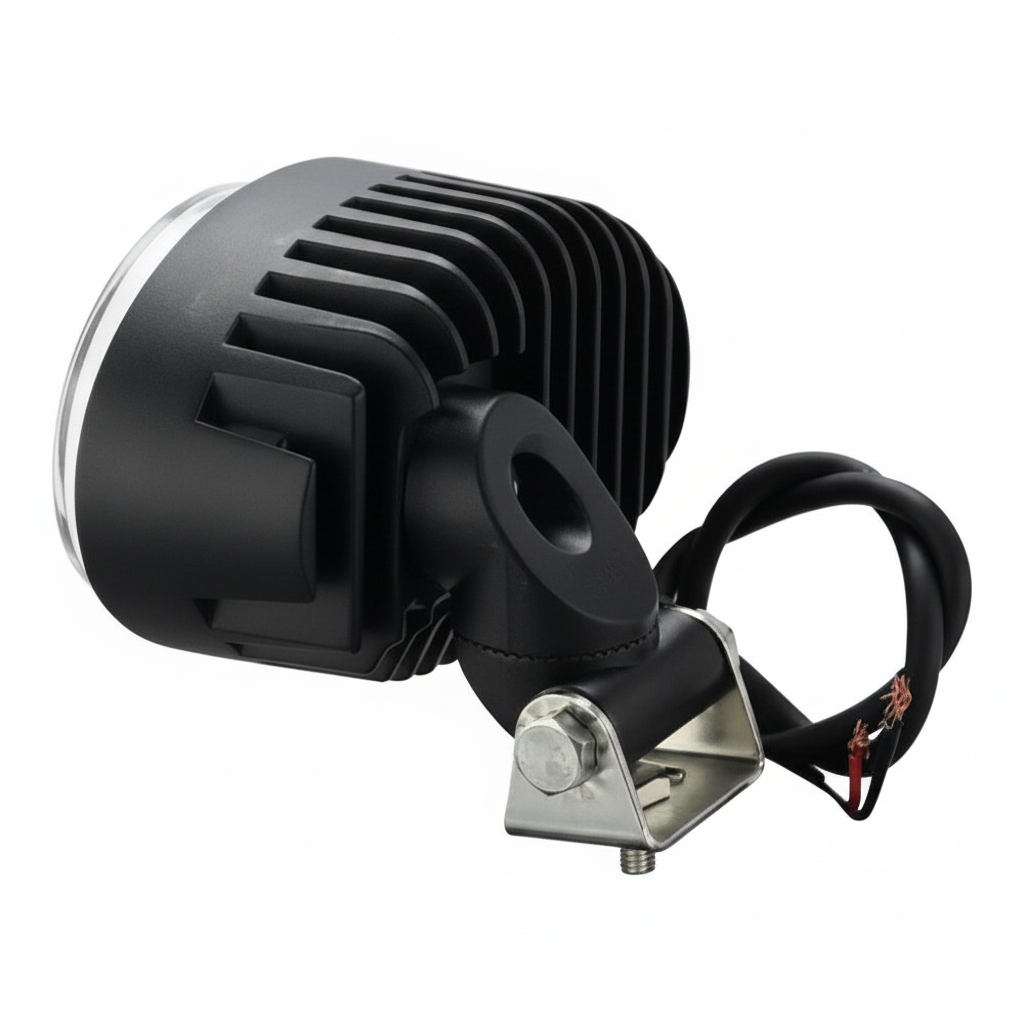

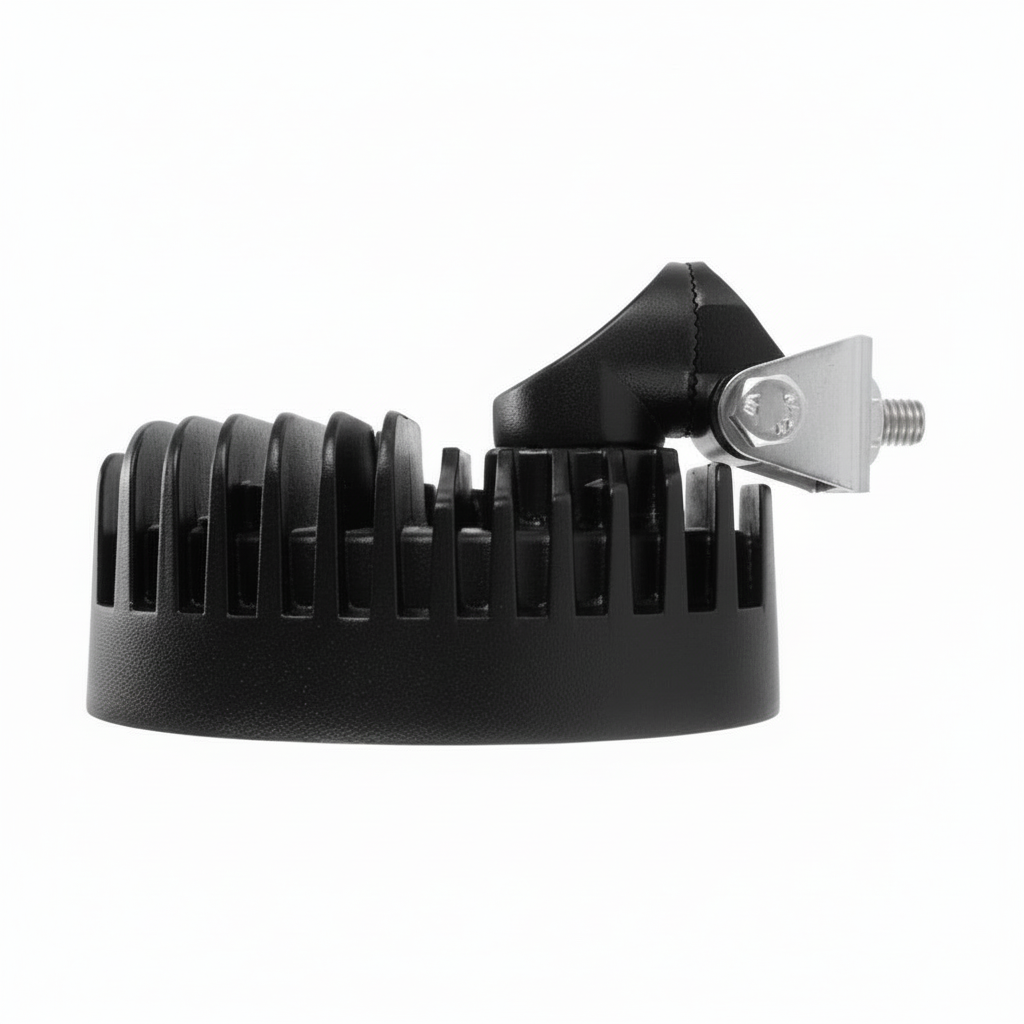

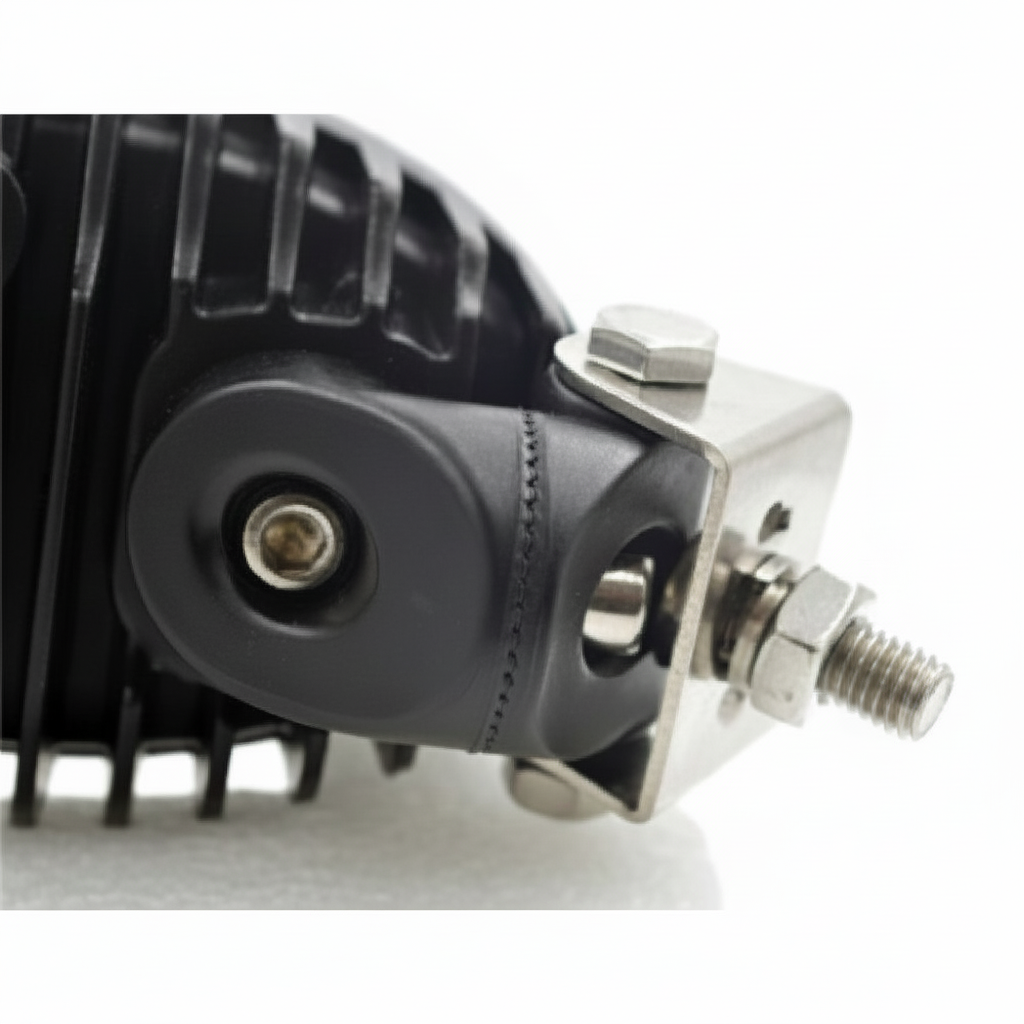

| Mounting Type | 360° Rotatable Swivel Mount Bracket (Bottom or Side Mount) |
| Wiring | Red, Positive |
| Wiring | Black, Ground |
| Connection Type | DT male & female connector |
| Overall width | 154 mm (with mounting hardware) |

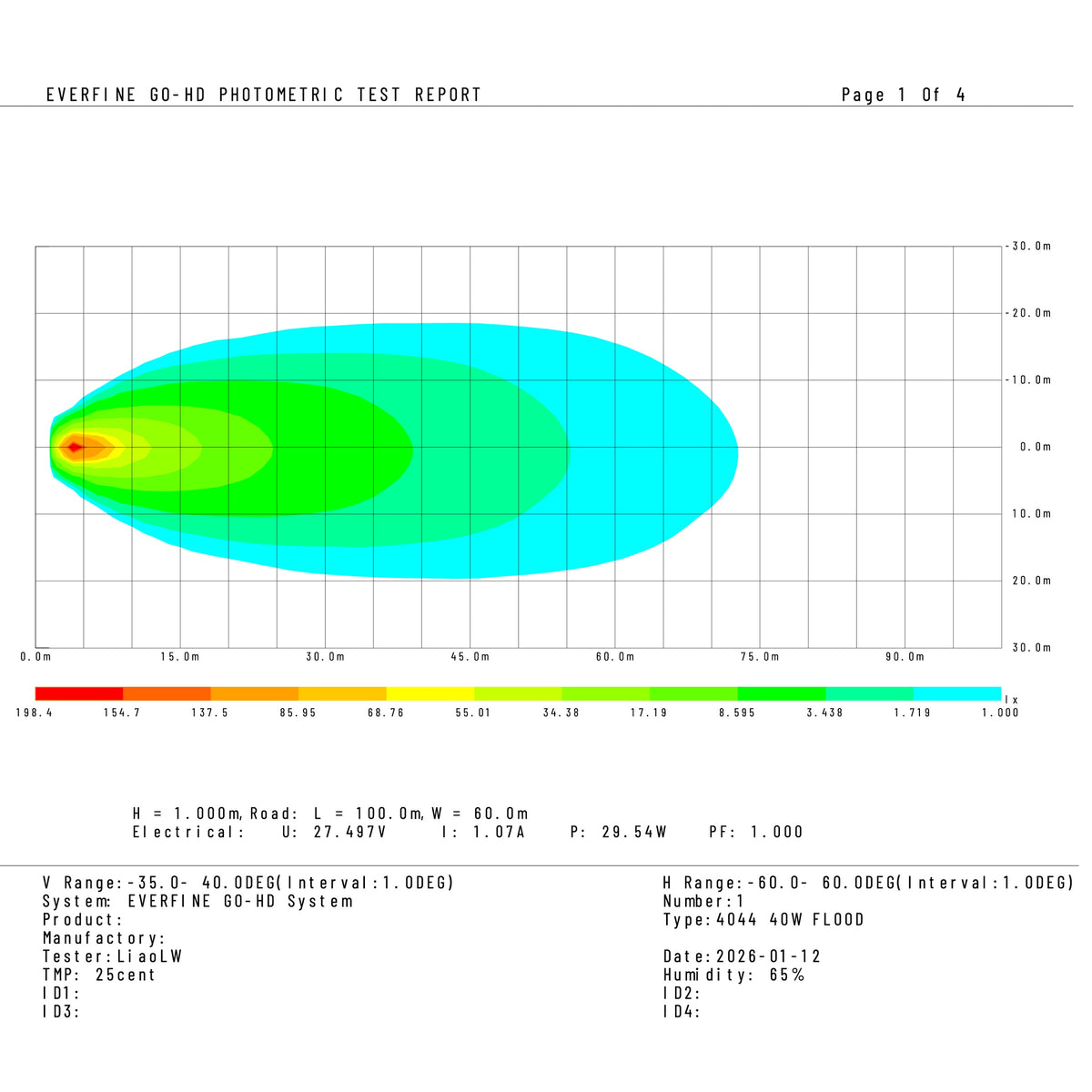

| Illuminance | 50 m @ 12 lux / 186 m @ 1 lux |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

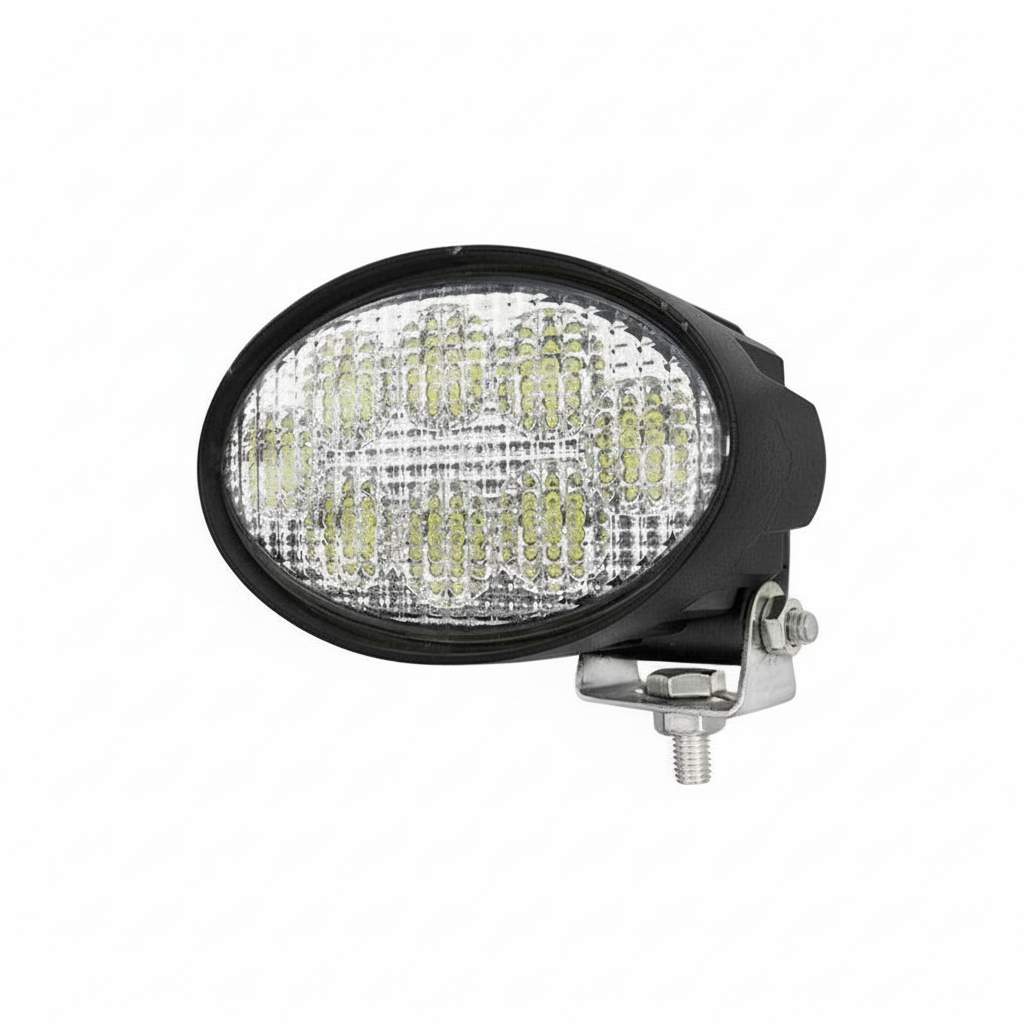

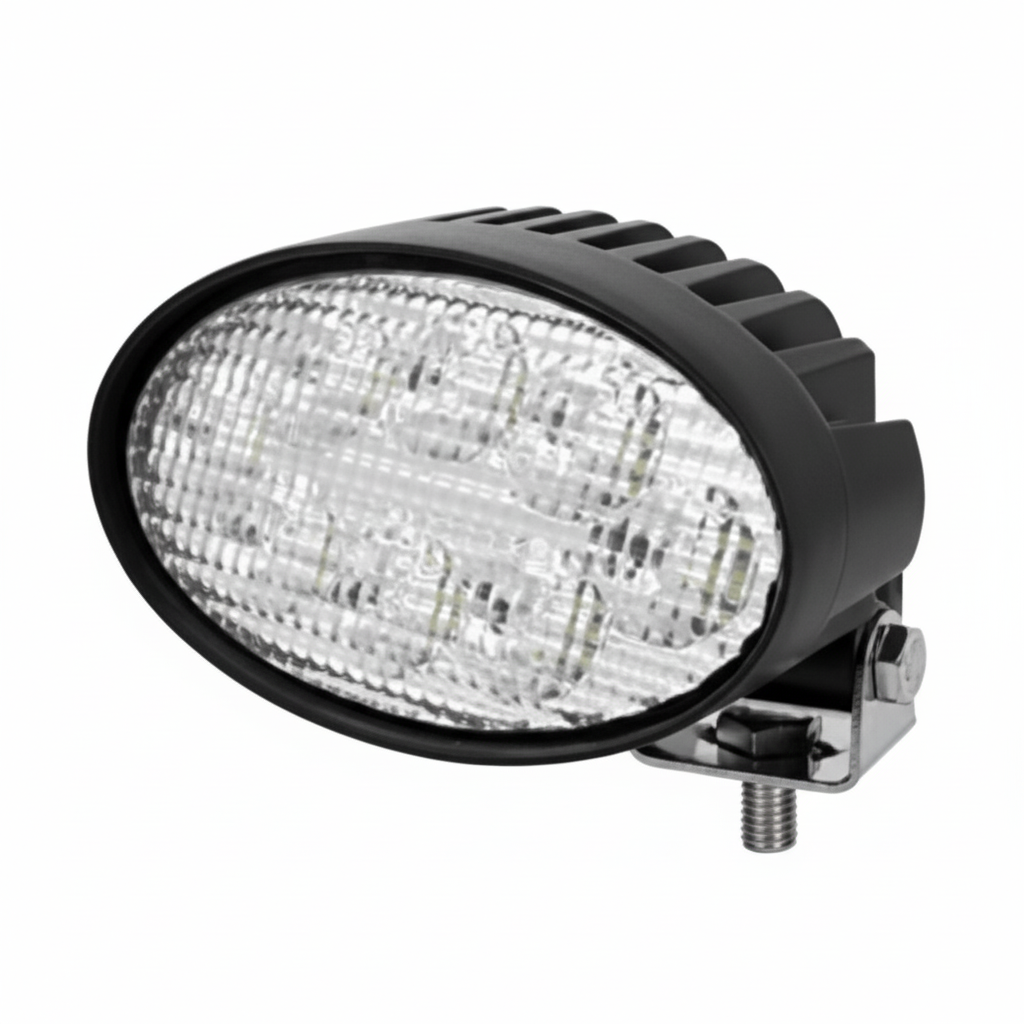

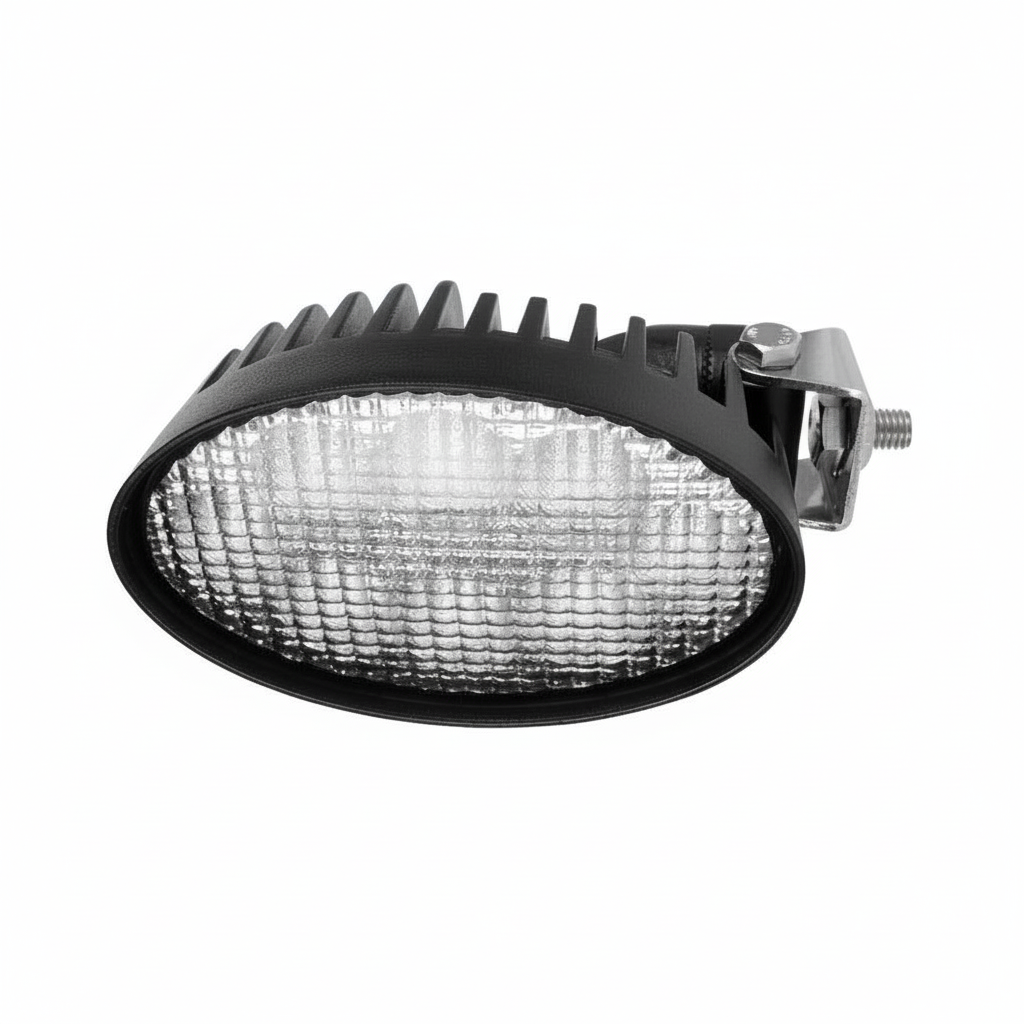

40W oval LED work light with 360° adjustable mounting
The LG847 provides 3,200 lumens of diffused flood illumination from eight CREE XTE LEDs. Its 360° swivel bracket supports bottom or side mounting, making it easier to aim the beam around the working area. Operating voltage is 10–30V DC and colour temperature is 5300–5700K.
The aluminium housing and polycarbonate lens are rated IP68/IP69K. ECE R10 approval, CISPR25 Class 4 suppression and vibration testing to 15G support use on agricultural equipment. Supplied with a work light, swivel bracket and DT male/female connection. OEM references are for identification; compare the dimensions, connector and mounting before installation.
