140W LED Driving Light with Warning Strobe – LG932
Specifications
| Part number | LG932 |
|---|---|
| EAN / barcode | 4255929208099 |
| Operating voltage | 9–36 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -40°C to +60°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; M10 mounting |
| Other conformity / EMC | CE, RoHS |

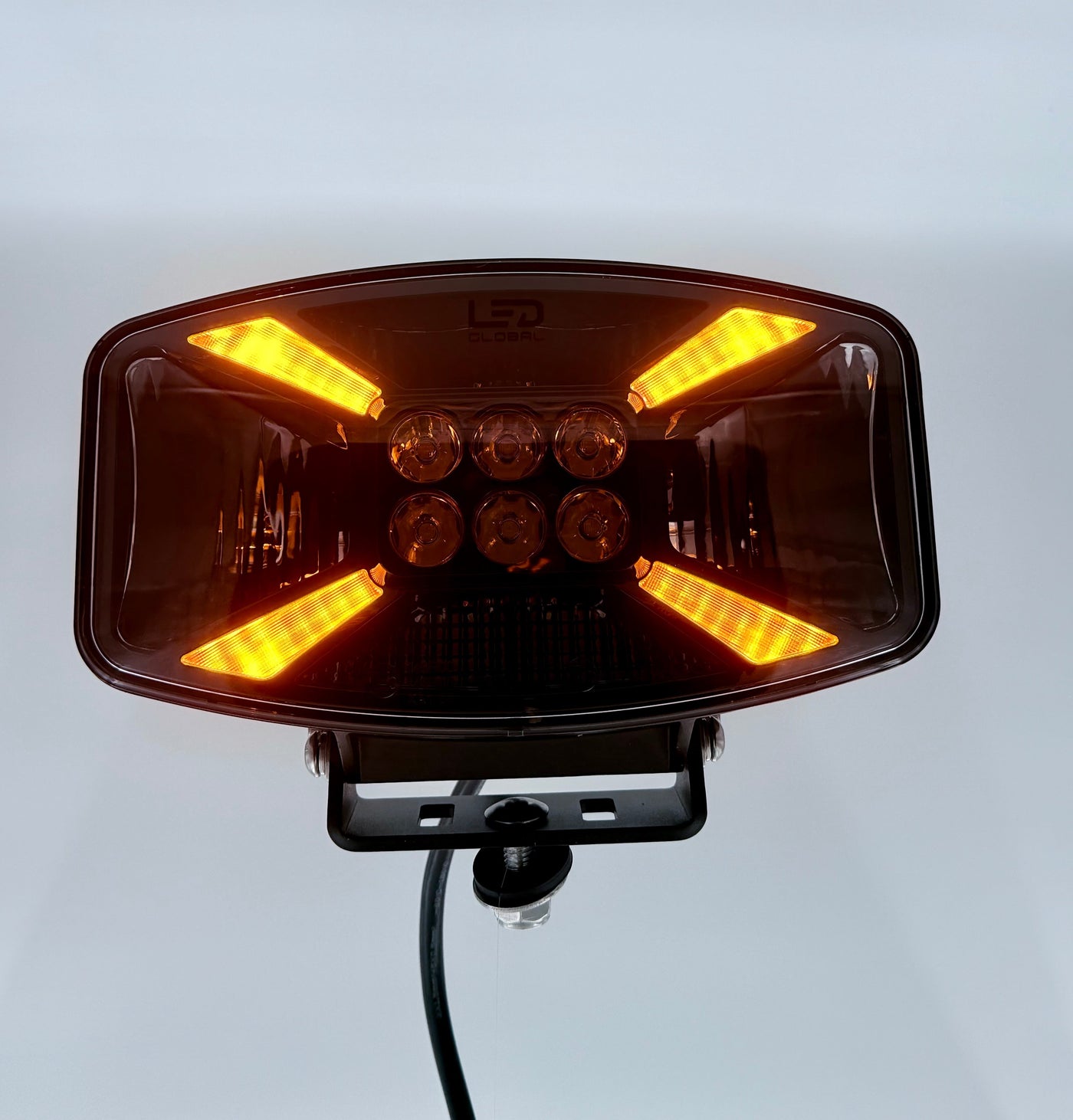

| Light functions | Driving beam; dual-colour position light; amber warning strobe |
| LED configuration | 12 LMP LEDs: 10 × 10 W + 2 × 20 W |
| Power rating / consumption | 140 W nominal LED rating |

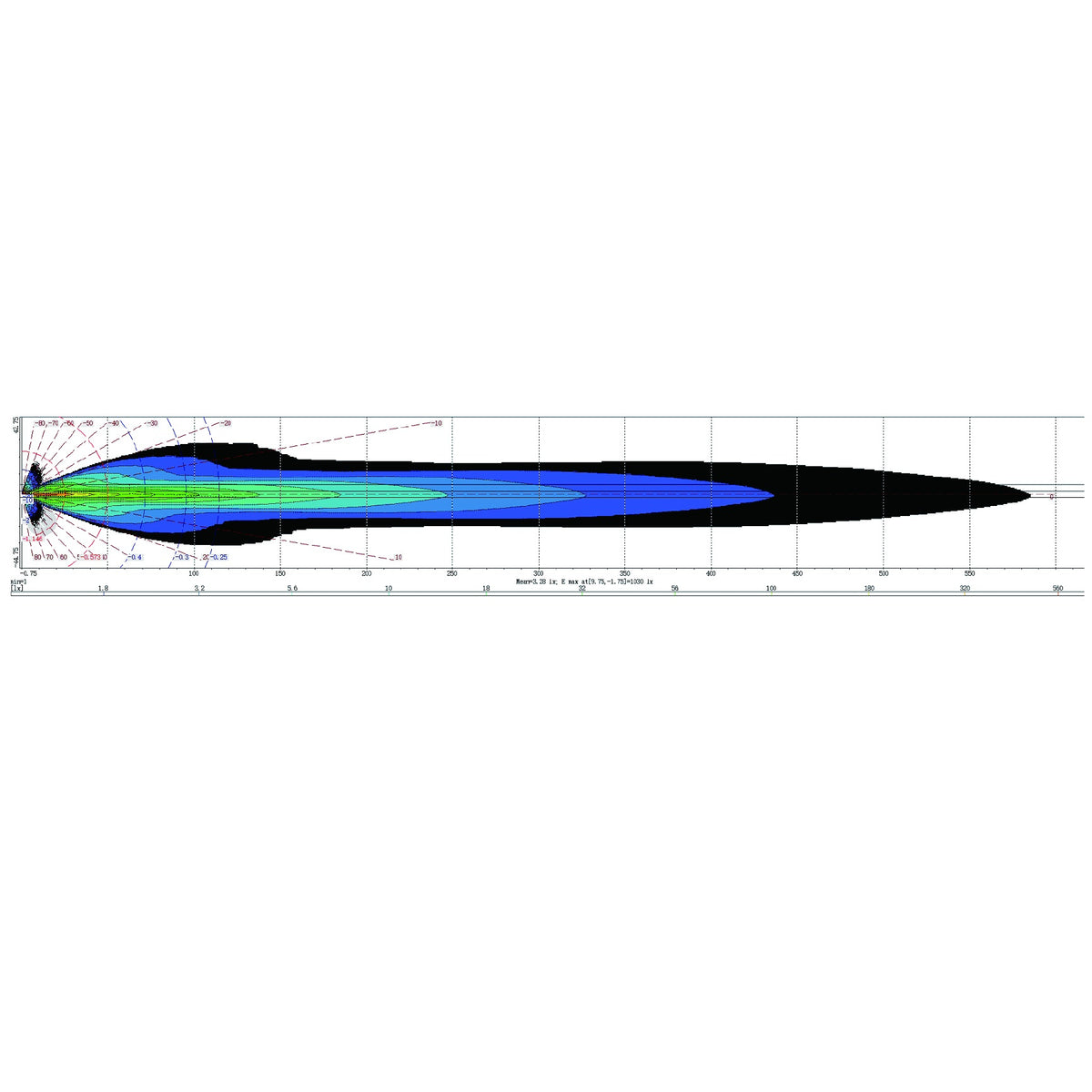

| Beam pattern / range | 25° combo beam |
| Connection / cable | 6-pin DT; 500 mm cable |
| Approvals | ECE R10, R65, R148, R149 |

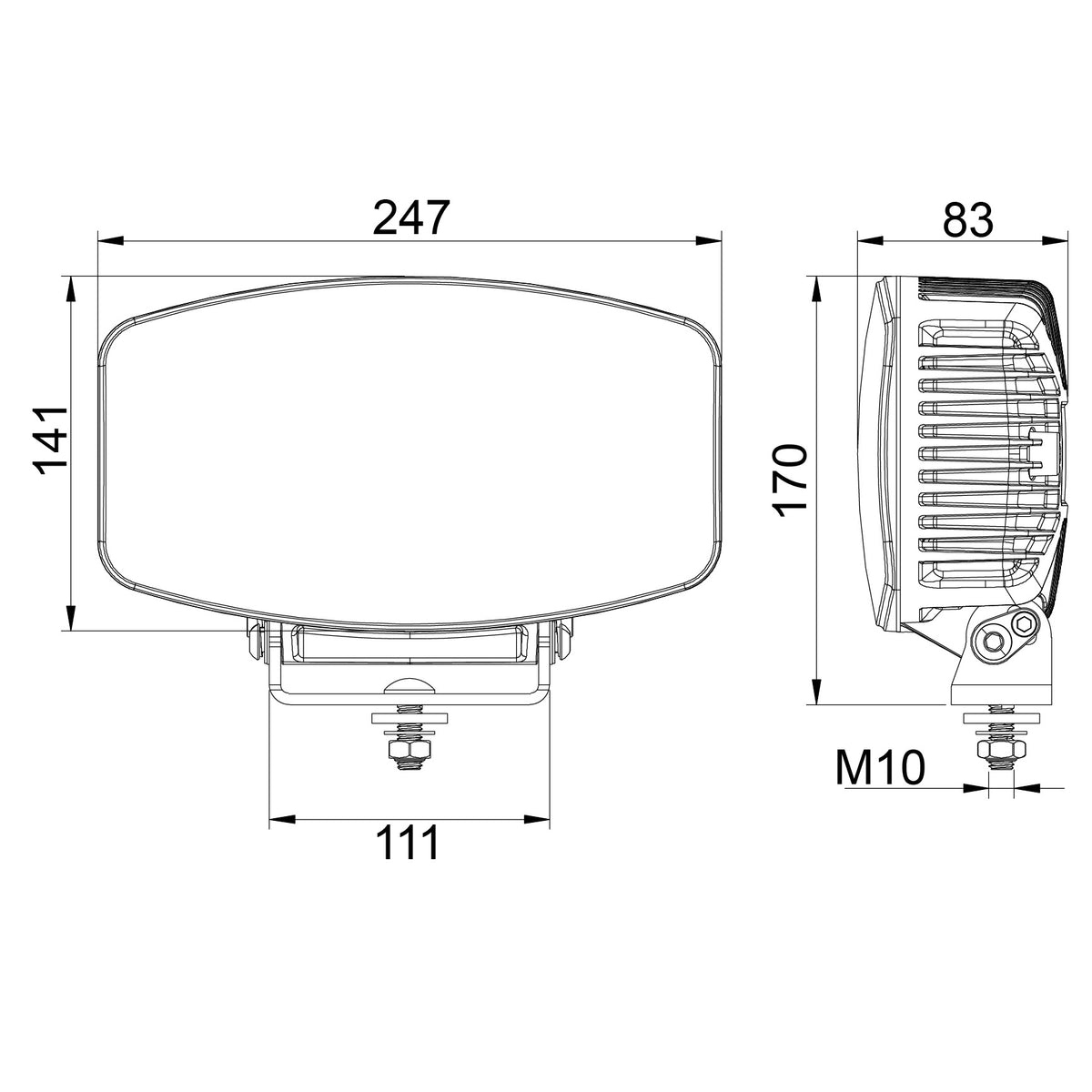

| Width / length | 247 mm |
| Height | 170 mm with bracket; 141 mm housing |
| Depth | 83 mm |
| Included | 1 light, mounting bracket(s), screws and DT connector |
| Wire functions | Black: ground (-); red: driving (+); green: warning (+); blue: signal (+); white: white position (+); yellow: amber position (+); brown: ECE activation (+) |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

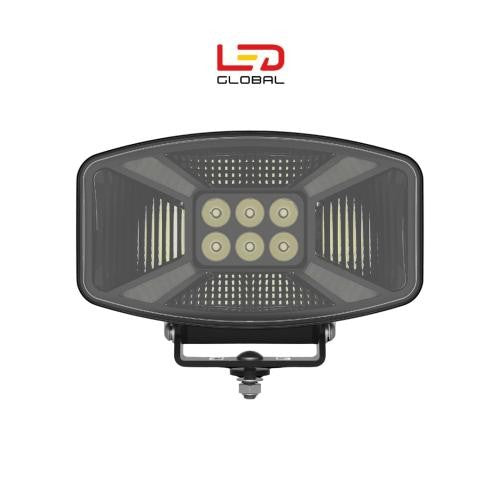

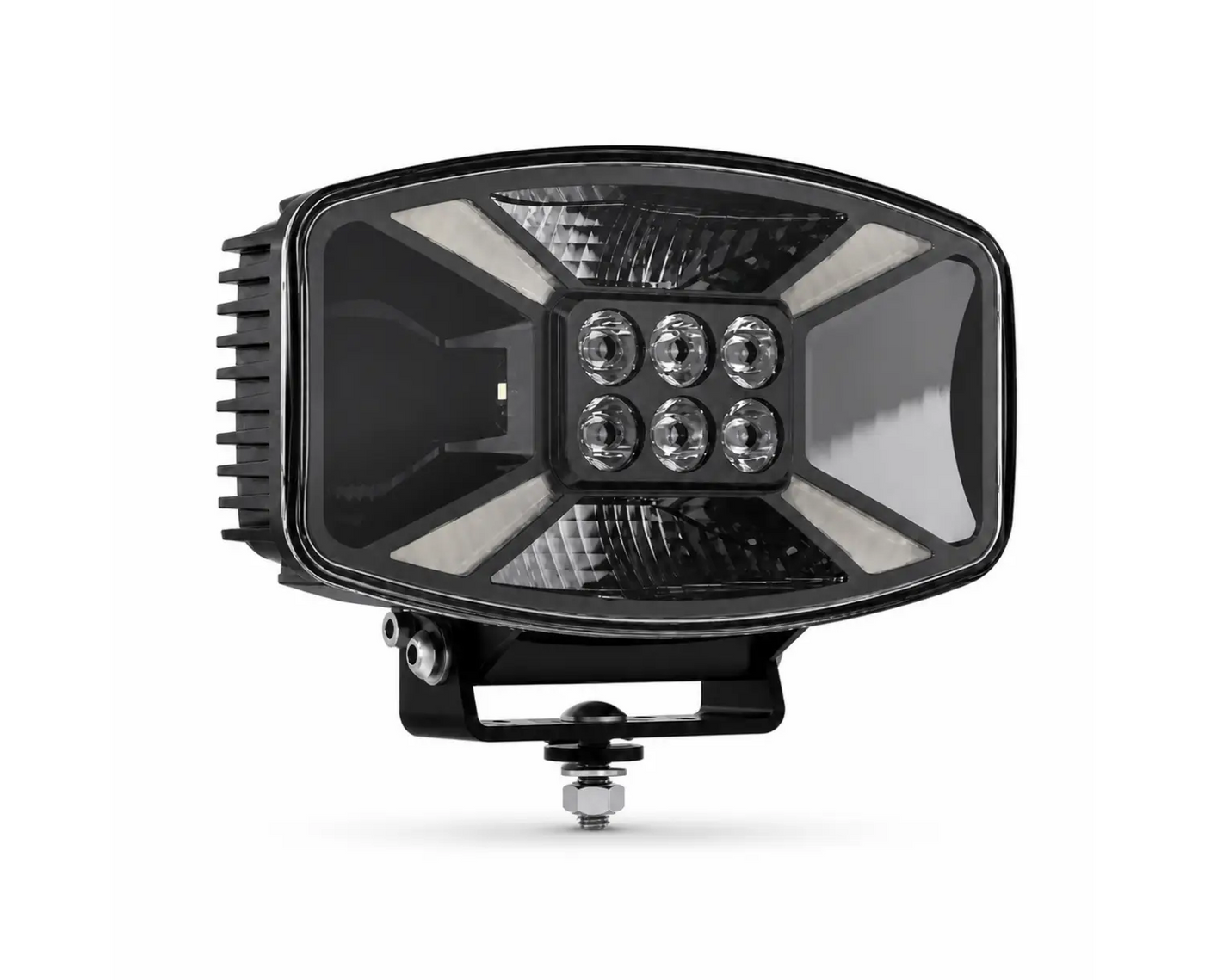

140W LED Driving Light with Warning Strobe – LG932

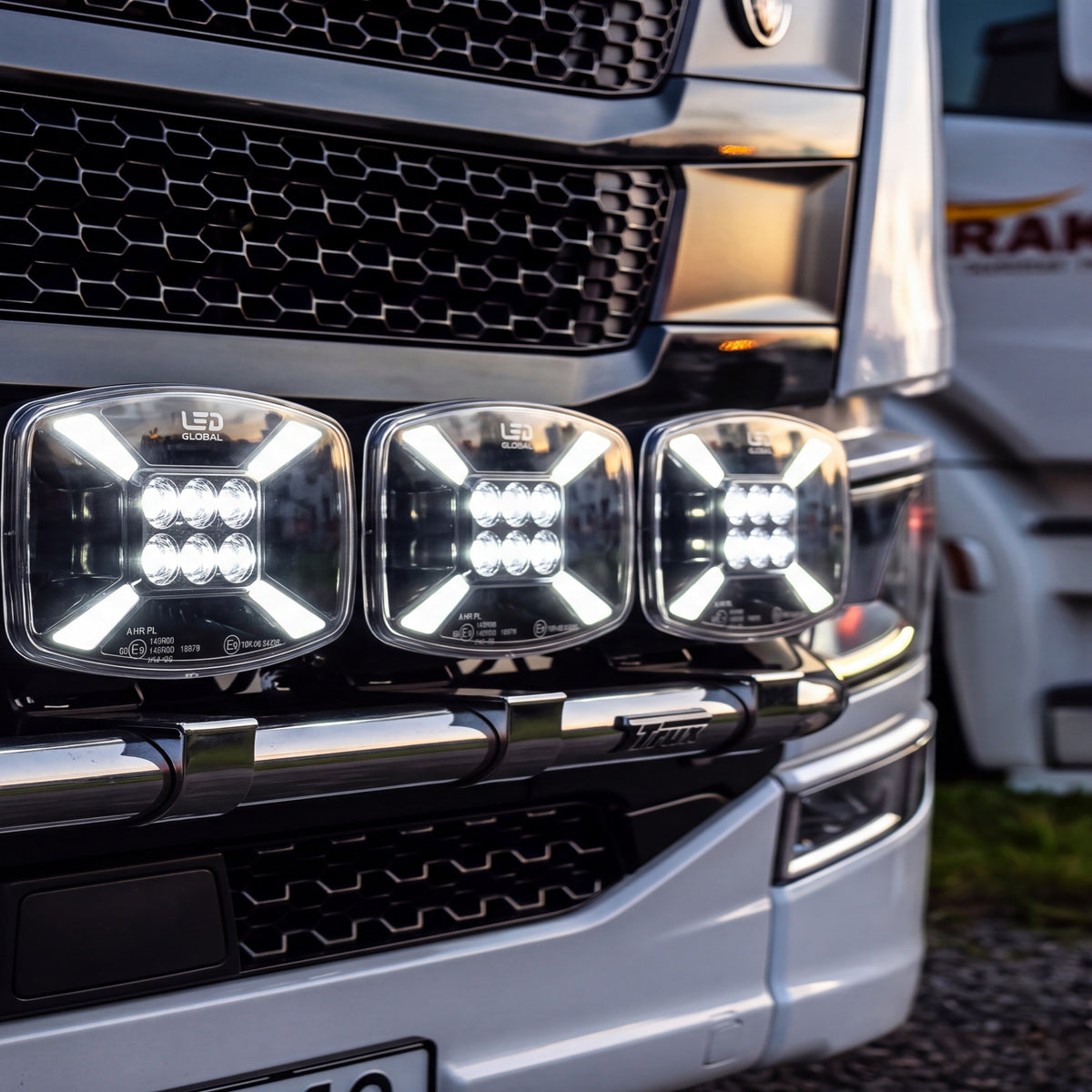

The LG932 combines a 140 W nominal LMP LED array with a 25° combo beam and an integrated amber warning strobe. It is designed for auxiliary lighting on trucks, commercial vehicles and off-road machinery.

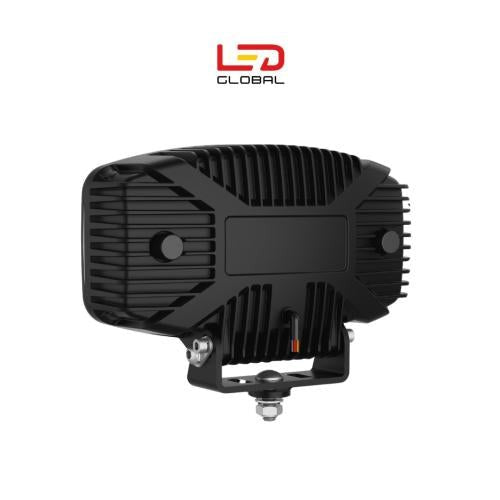

The die-cast aluminium housing and PC lens are sealed to IP68/IP69K. A stainless steel bracket, M10 mounting point and 500 mm cable with a 6-pin DT connector support installation. Overall dimensions are 247 × 170 × 83 mm, with a 141 mm housing height.
Connecting red and black selects full-power off-road driving; adding the brown activation wire selects the ECE driving mode.
