120W 8.5" LED Driving Light with Dual Colour Position Light - LG930
Specifications
| SKU | LG930 |
|---|---|
| EAN | 4255929208075 |
| Rated LED power | 120 W (4 × 20 W + 4 × 10 W Cree) |
| Effective luminous flux | 10,200 lm |
| Raw luminous flux | 12,000 lm |
| Voltage | 9–36V DC |

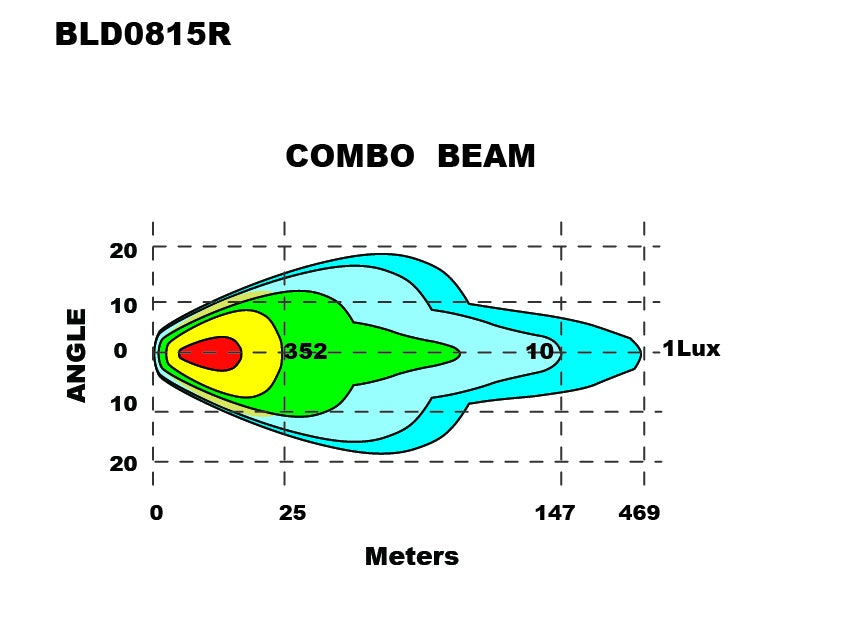

| Beam | Combo; 1 lux at 469 m |
| Main light current | 8.9 A at 12V / 4.3 A at 24V |
| Position light current | 0.06 A at 12V / 0.03 A at 24V |

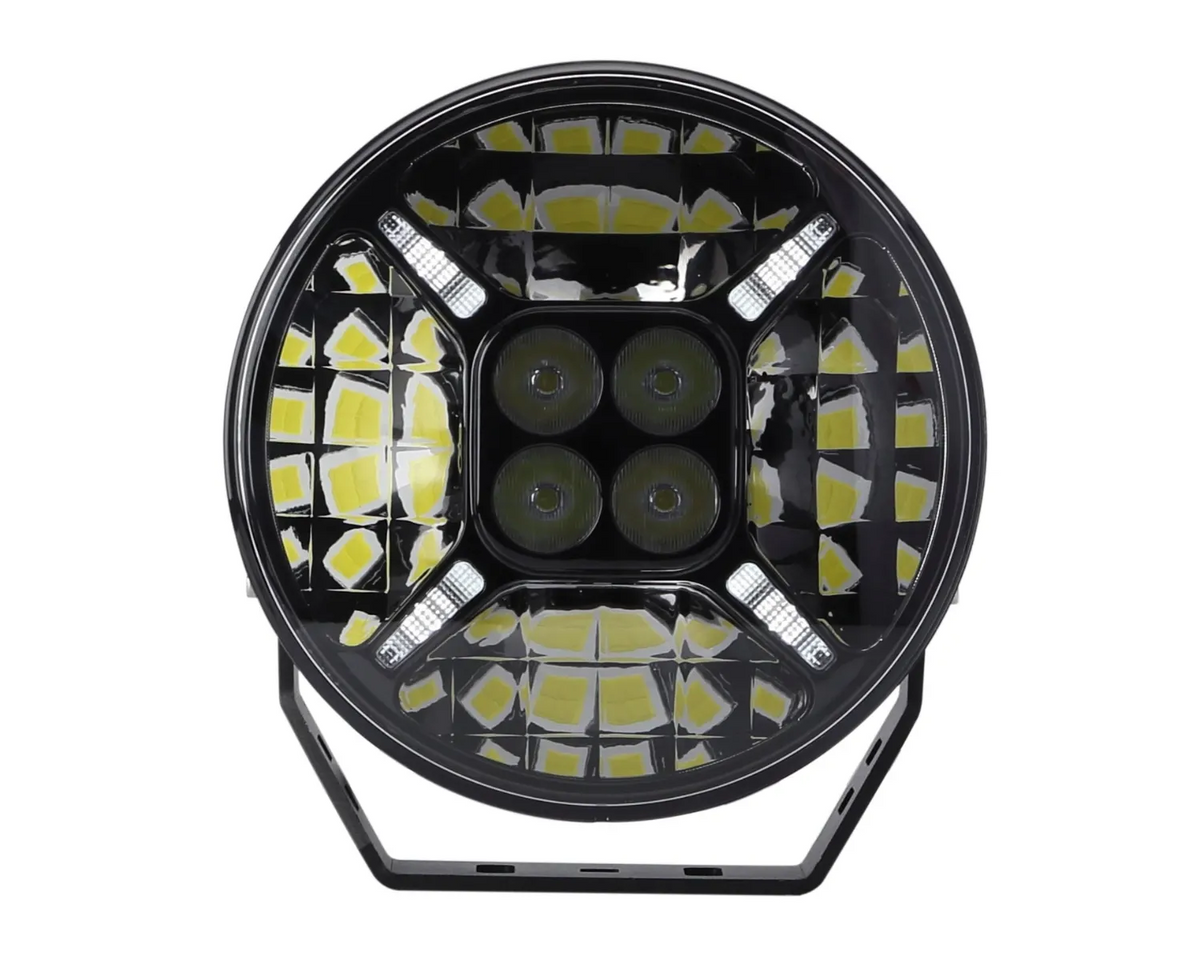

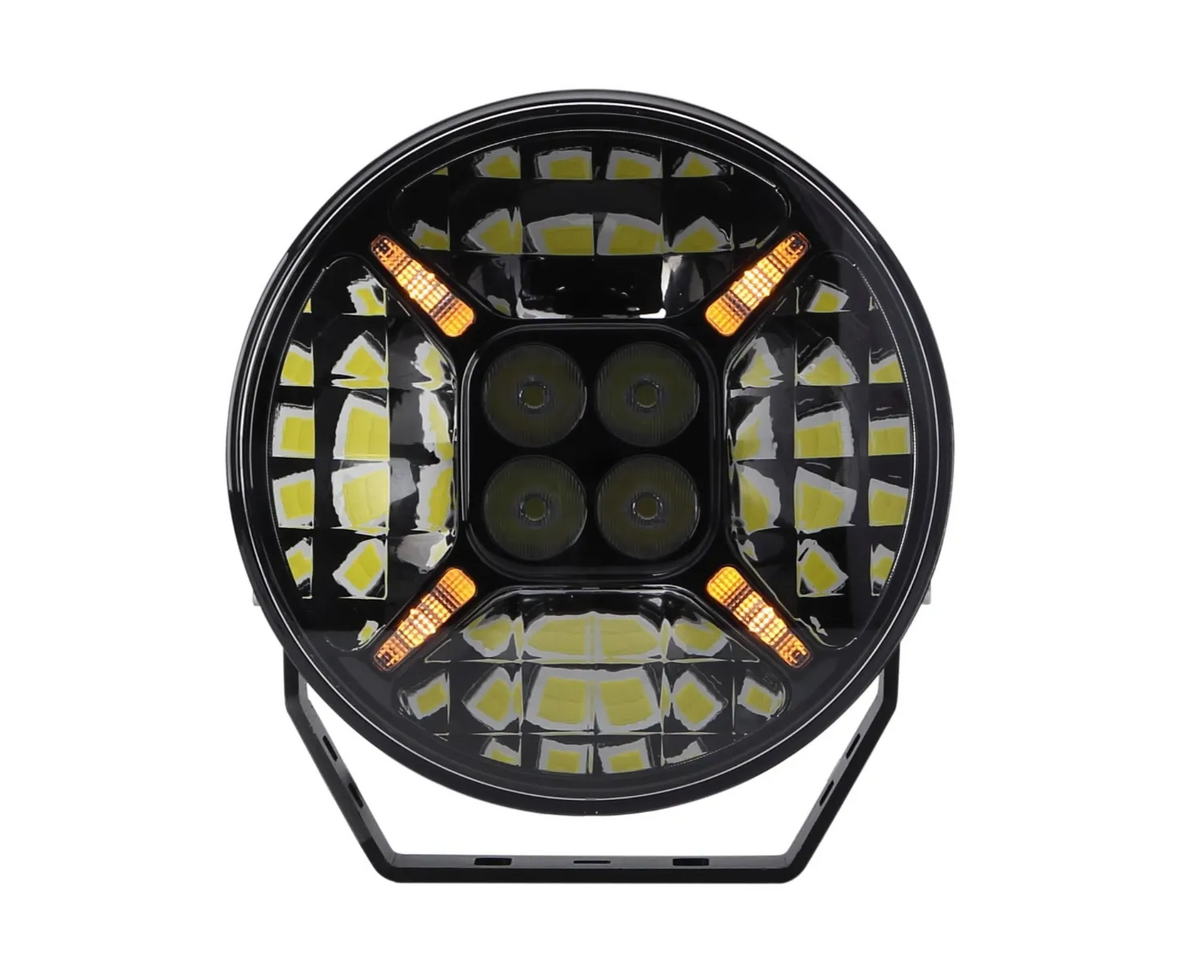

| Position light | White / amber |
| Cable / connector | 500 mm / 4-pin DT |
| Protection | IP68 / IP69K |
| ECE approvals | R112 (Ref. 45), R7, R10 |
| Other conformity | CE, RoHS |
| Operating temperature | −40°C to +60°C |
| Housing | ADC12 diecast aluminium |
| Lens | Lexan polycarbonate |
| Bracket | Adjustable stainless steel U-bracket |

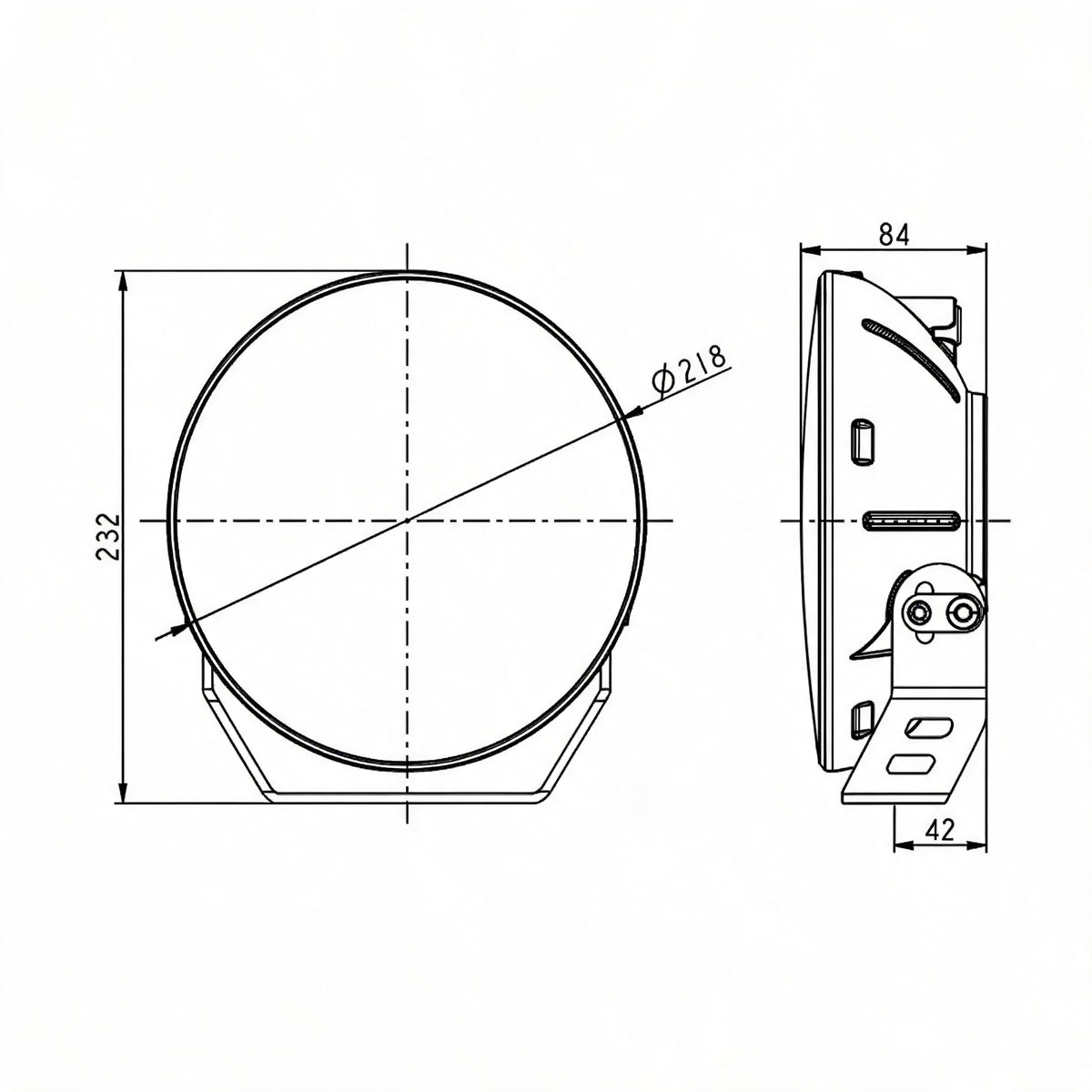

| Diameter | 218 mm |
| Height including bracket | 232 mm |
| Depth | 84 mm |
| Mounting hole | 10.5 mm |
| Wiring | Black: ground; red: driving +; white: white position +; yellow: amber position + |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
120W round LED driving light with 10,200 effective lumens
The LG930 uses eight Cree LEDs to produce a combo beam reaching 469 m at 1 lux. White and amber position-light functions are integrated into the 218 mm round housing, approximately 8.5 inches in diameter.
It operates on 9–36V DC and features an ADC12 diecast aluminium housing, Lexan polycarbonate lens, adjustable stainless steel U-bracket, TIR optics and electronic thermal management. IP68/IP69K sealing supports exposed vehicle installation. The kit includes the lamp, bracket, hardware and installation manual; connection is through a four-pin DT connector on a 500 mm cable.
The listed ECE approvals do not apply when the amber position-light function is used.
