Driving Spot Light
100 Watt LED Driving Light with Park & Strobe Function - LG827
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG827 |
| EAN / Barcode | 4255929220862 |
| Product Type | LED Driving Light with Position Light & Amber Warning Strobe |
| Included in Box | 1x 7" (189.5mm) 100W LED Driving Light (LG827), SPCC Heavy-Duty Mounting Bracket & Hardware Pack |
| Ideal Applications | Trucks, Commercial Vehicles, 4x4, Off-Road, Agricultural Machinery, Utility Vehicles |
| Fitting Position | Front Bumper / Grille / Roof Bar |

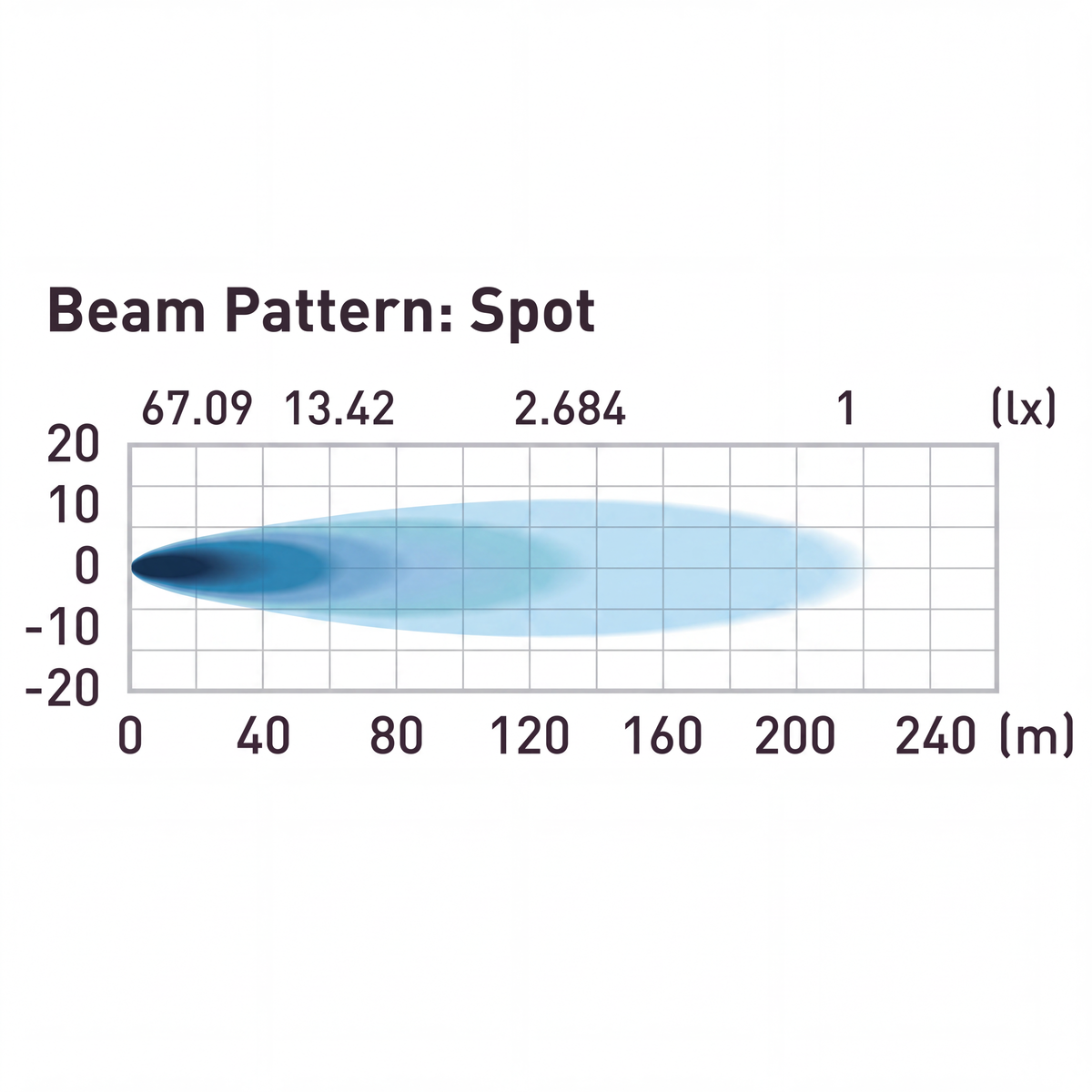

| Light Functions | Main Driving Light (Spot Beam), Integrated White Position Light, Integrated Amber Position Light, Certified Amber Warning Strobe |
| Luminous Flux (Lumens) | 11,000 Effective Lumens |
| Power Consumption (Watts) | 100W |
| Operating Voltage (V) | 9-32V DC |
| Cable Length (mm) | 300 - 350 mm (Bare Lead) |
| ECE Approvals | ECE R10, ECE R65, ECE R148, ECE R149 |
| Other Approvals | CE, RoHS |
| Protection Rating (IP) | IP67 / IP69K |
| Operating Temperature Range (°C) | -40°C to +65°C |
| Housing Material | Die-Cast Aluminum Housing |
| Lens Material | Polycarbonate (PC) |
| Bracket Material | SPCC Heavy-Duty Mounting Bracket |

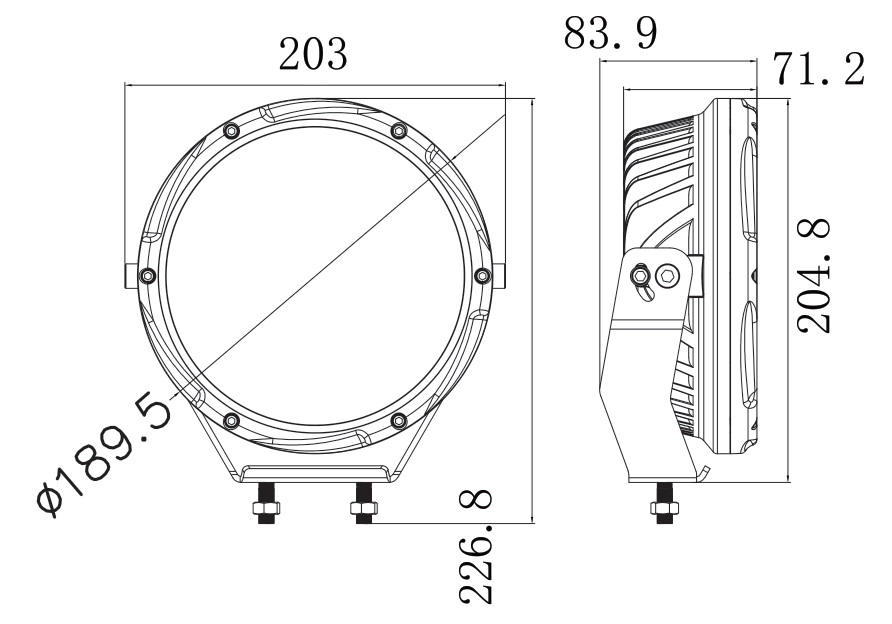

| Diameter / Width (mm) | 189.5 mm |
| Height with Bracket (mm) | 226.8 mm |
| Depth (mm) | 83.9 mm (71.2 mm housing depth) |
| Mounting Type | Heavy-Duty SPCC Bracket Mount |
| Fastening Type | Bolt & Nut |
| Wiring | Black Line: Ground (-) |
| Wiring | Red Line: High Beam (+) |

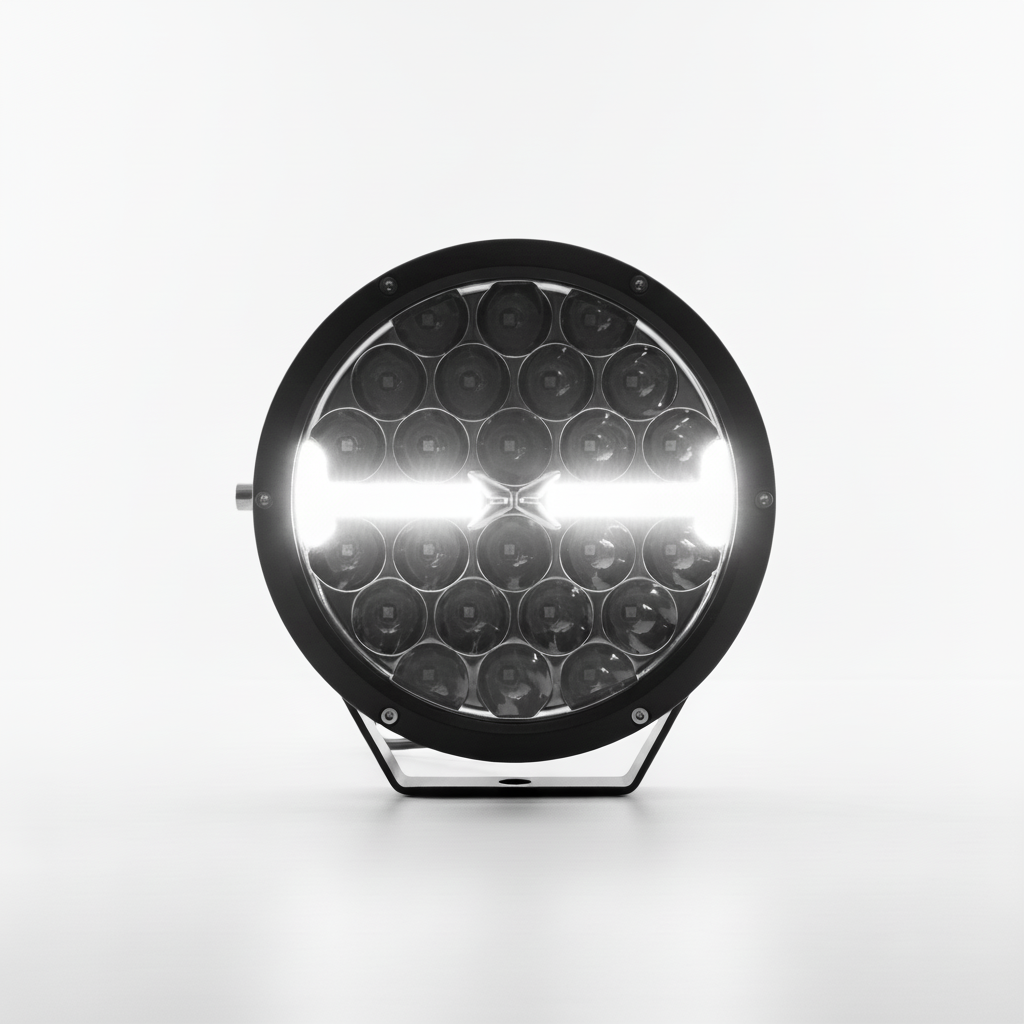

| Wiring | Grey Line: White Position Light (+) |

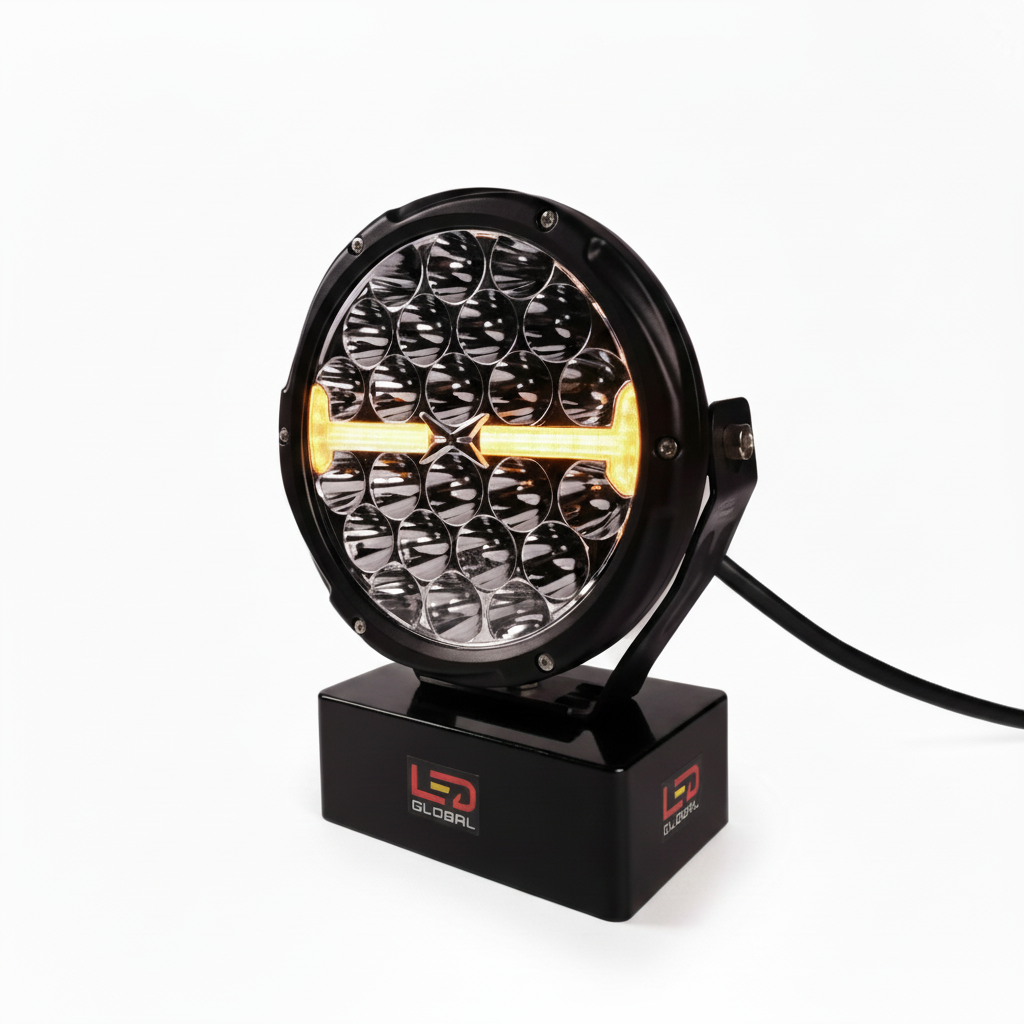

| Wiring | Yellow Line: Amber Position Light (+) |
| Wiring | Green Line: Amber Warning Light / Strobe (+) |
| Overall width | 203 mm |
| Body height | 204.8 mm |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

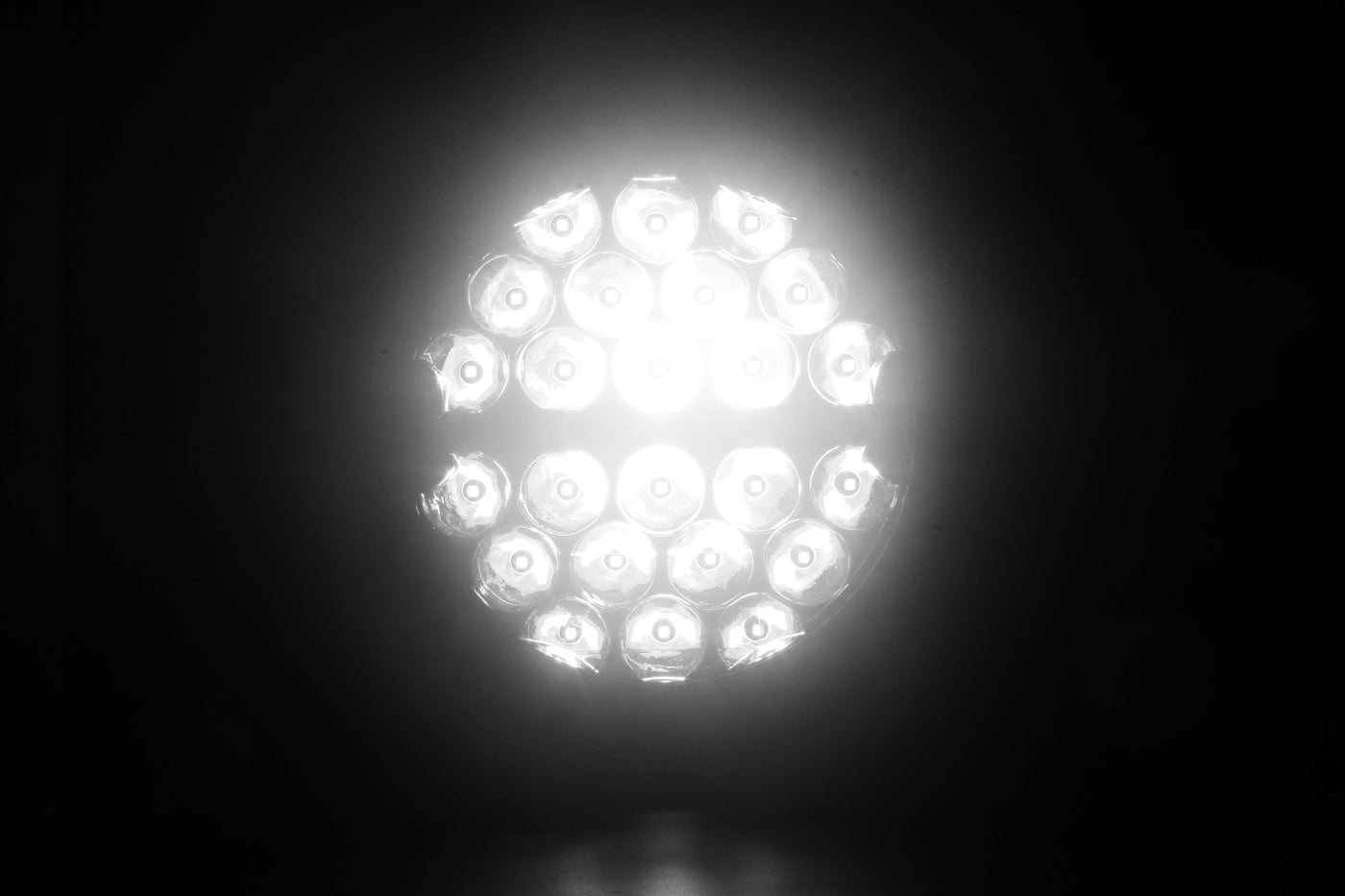

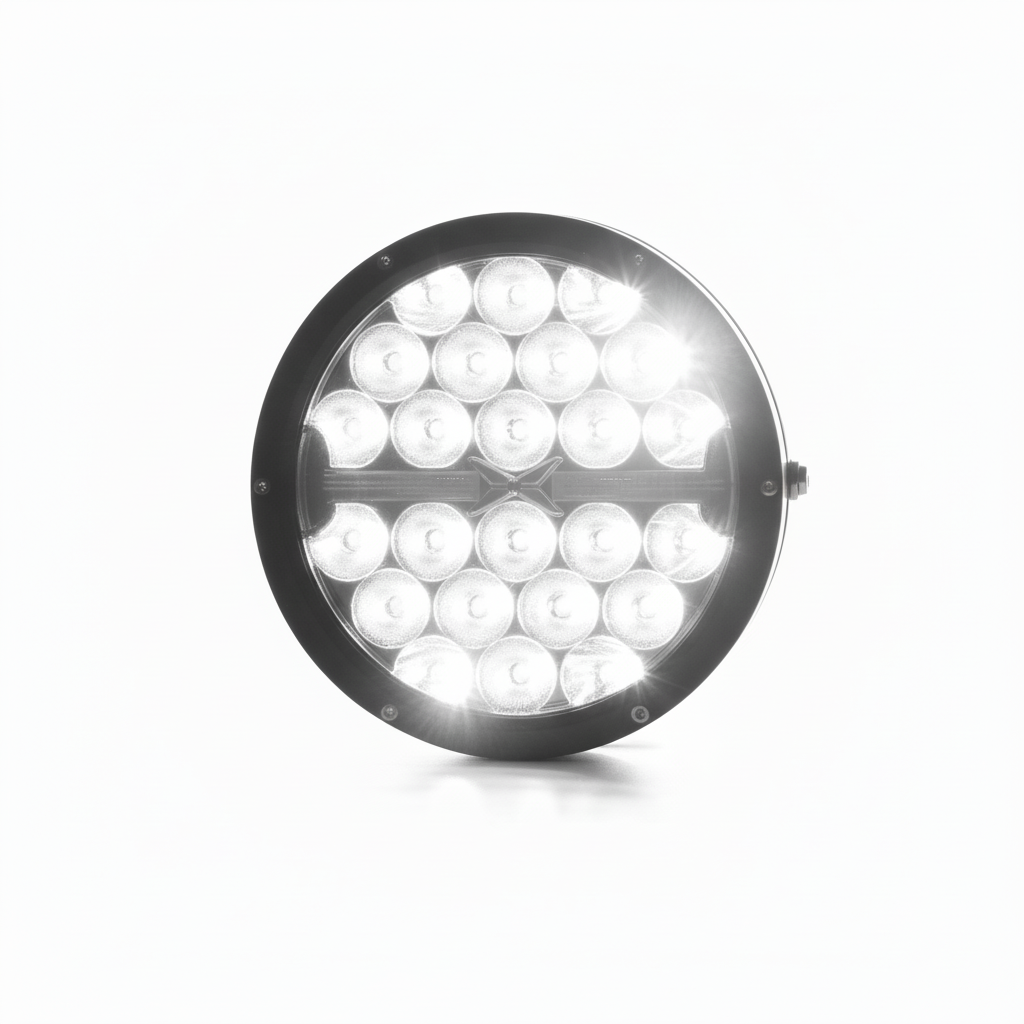

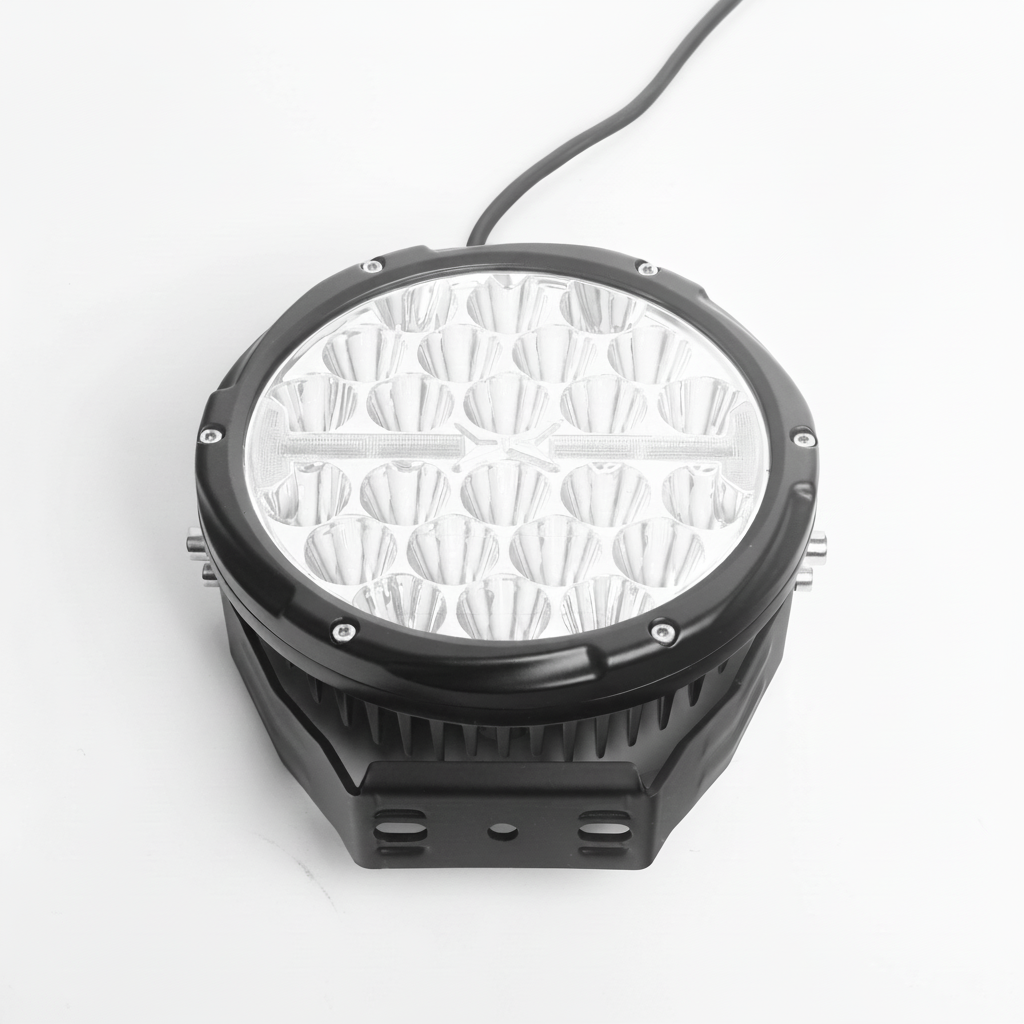

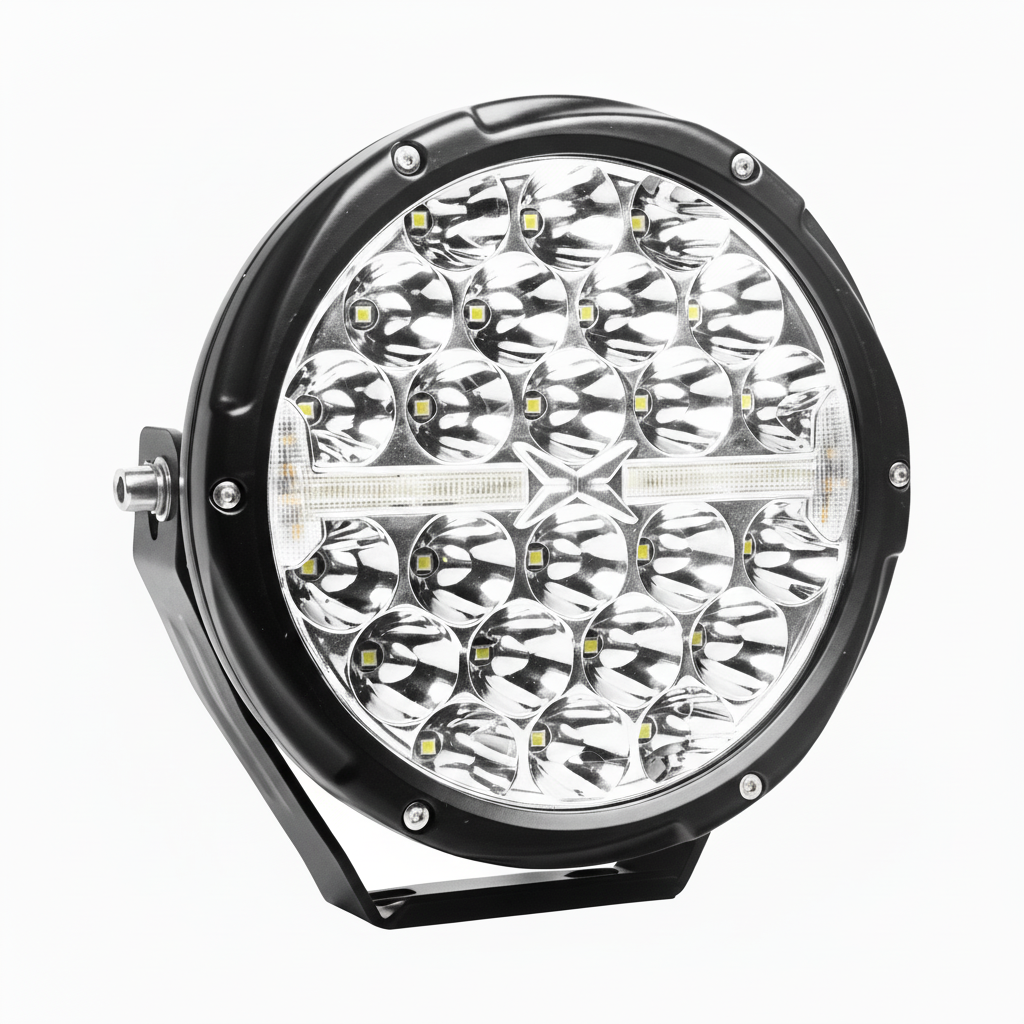

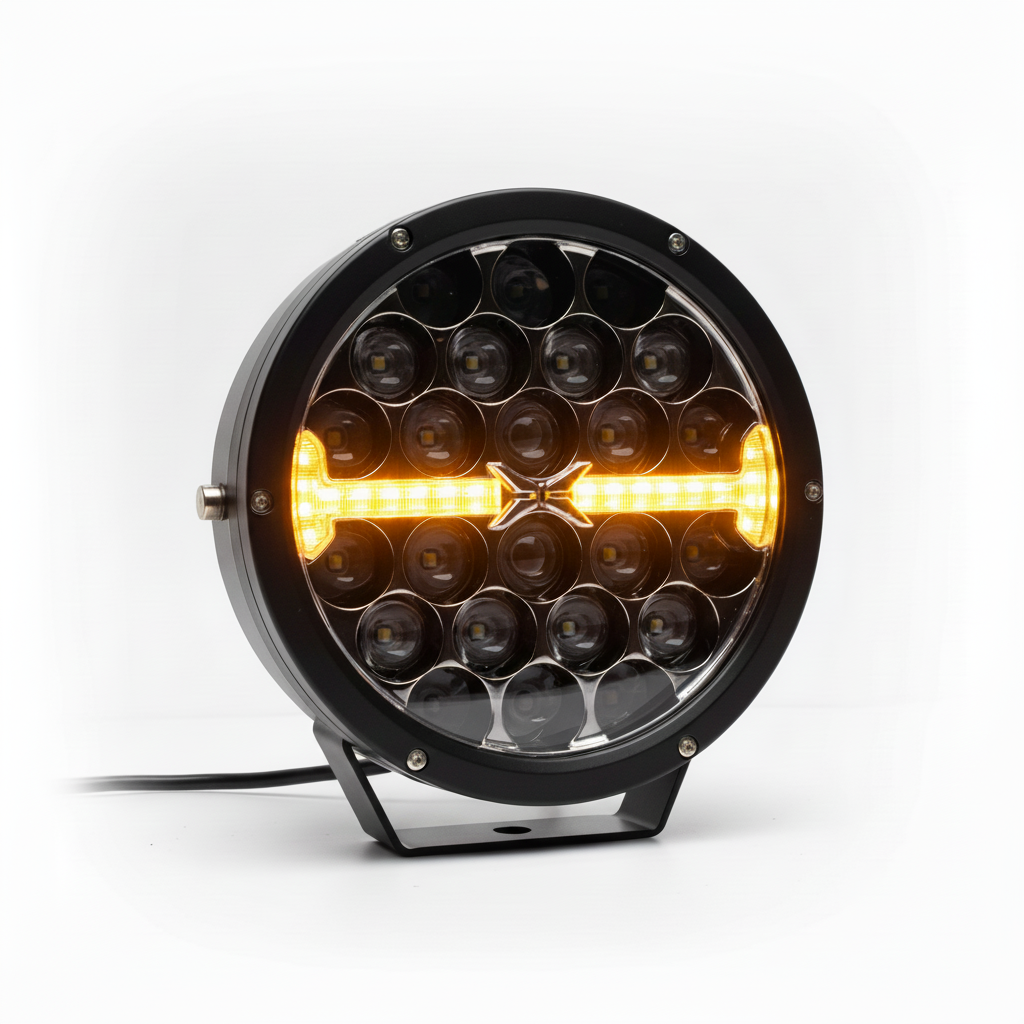

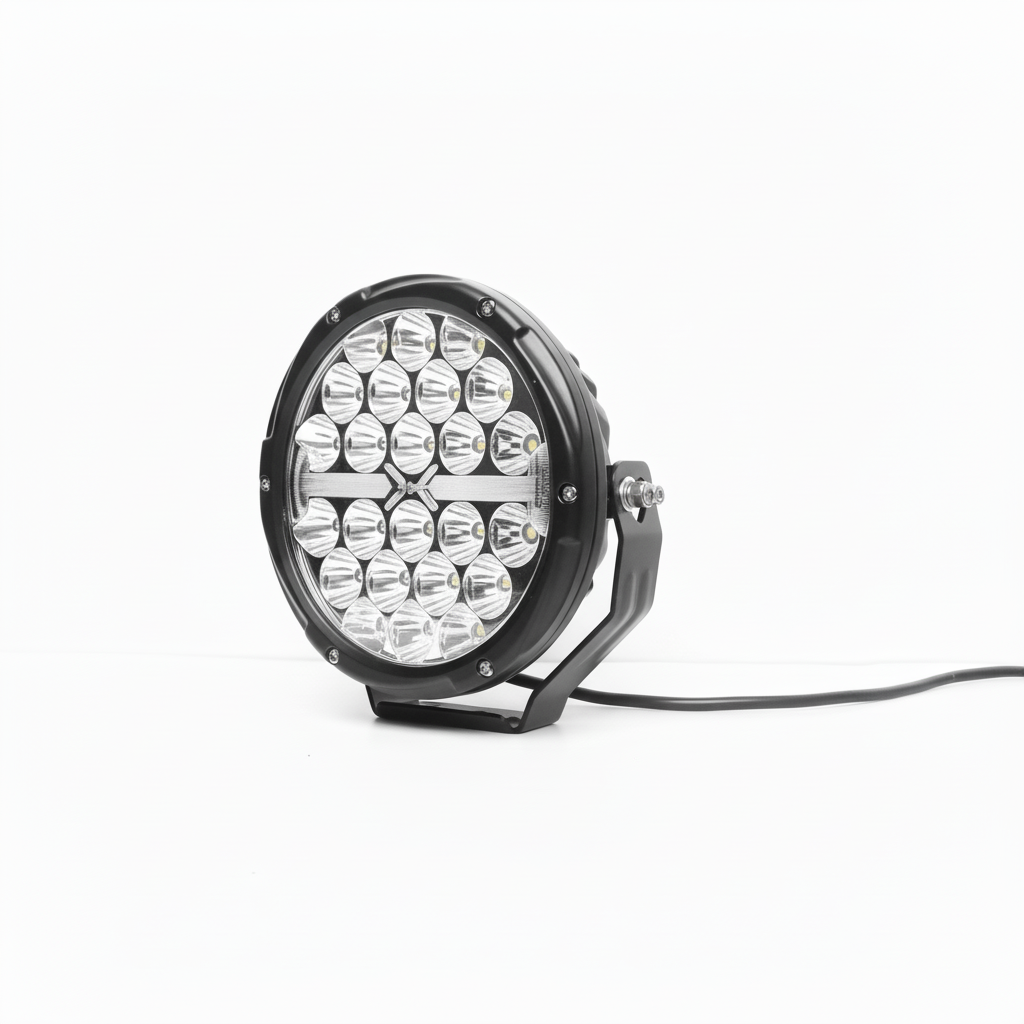

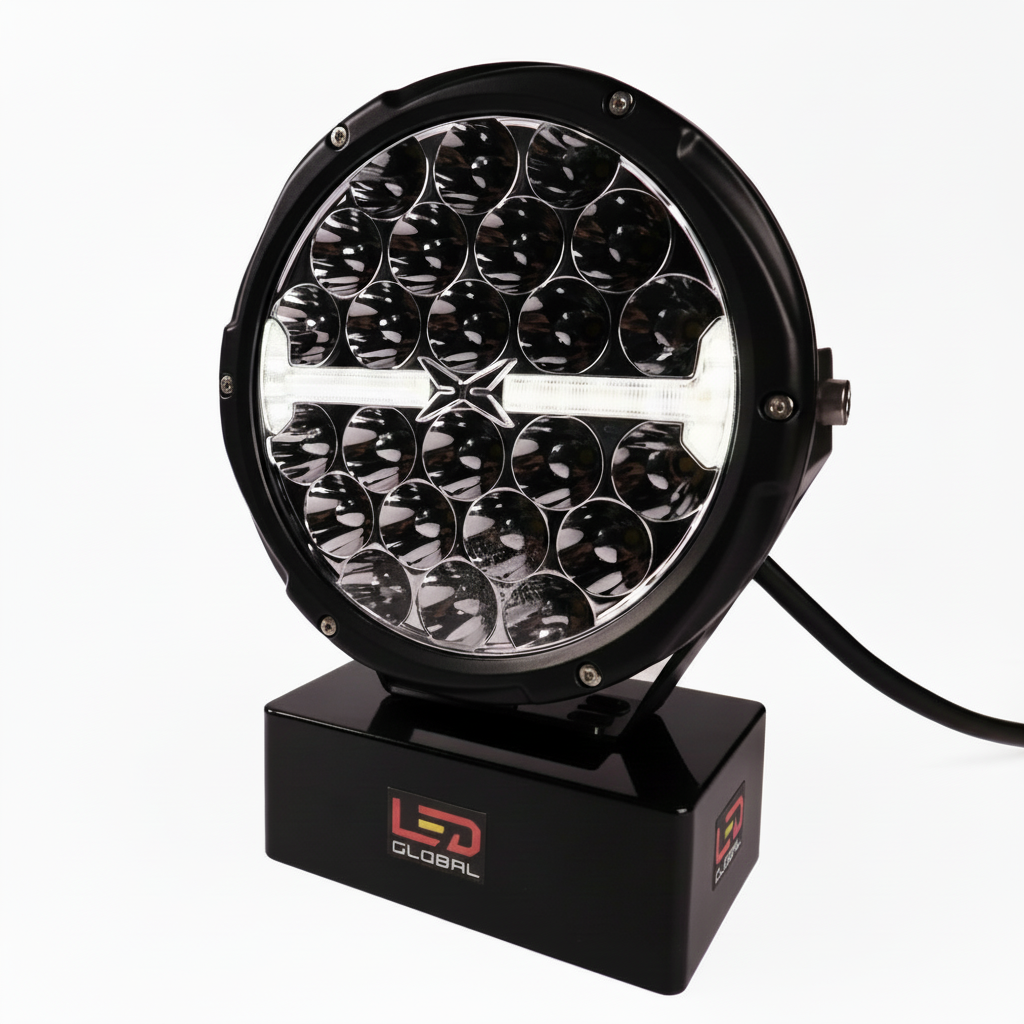

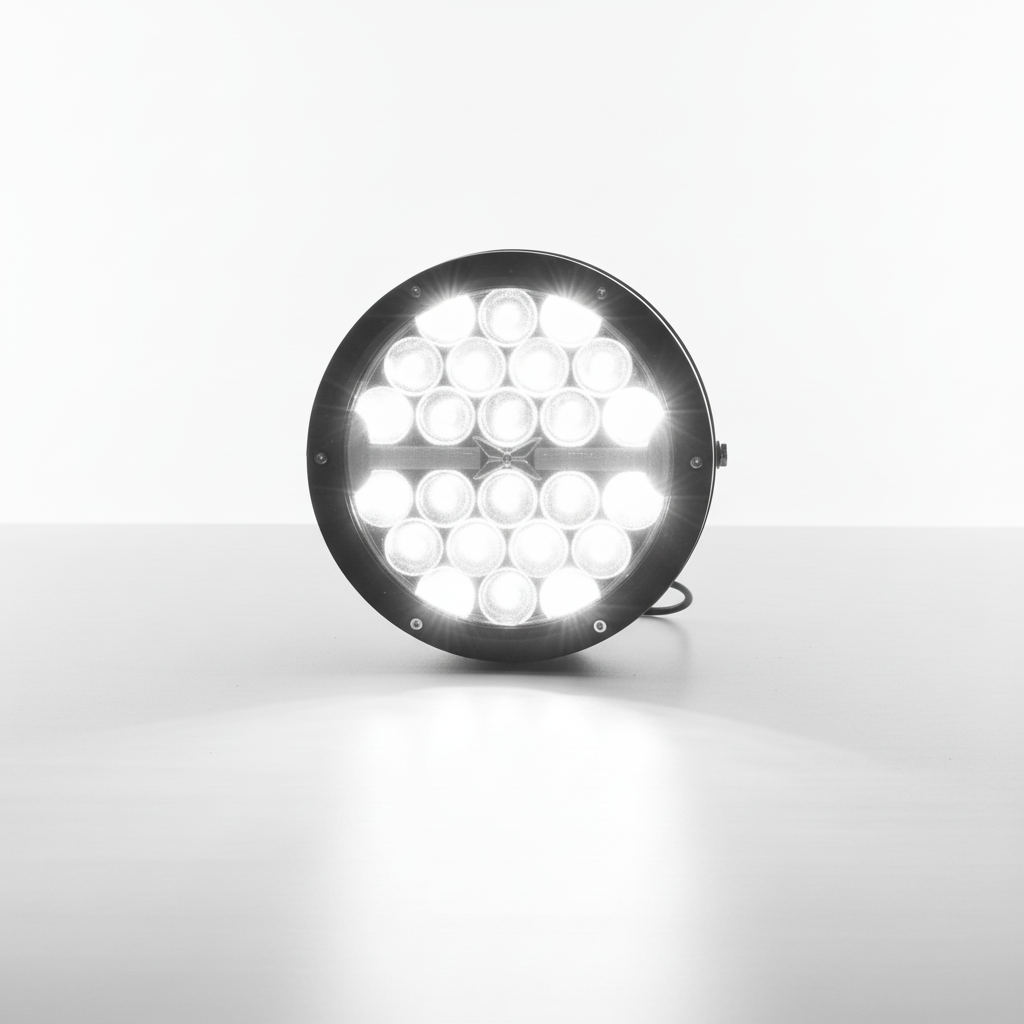

100W LED driving light with white/amber position light and warning strobe
The LG827 combines a focused driving beam with separate white and amber position-light functions and an amber warning strobe. The updated specification lists 11,000 effective lumens and a 9–32V DC operating range.

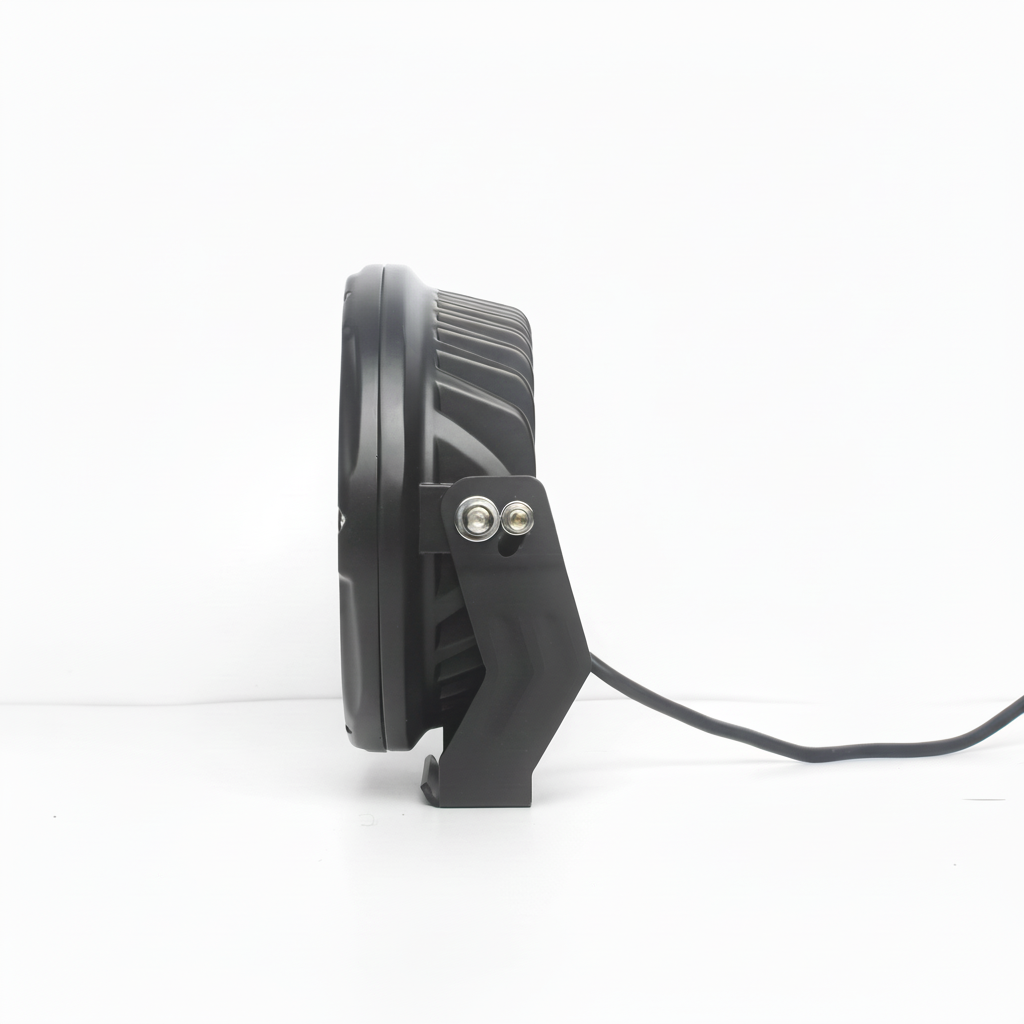

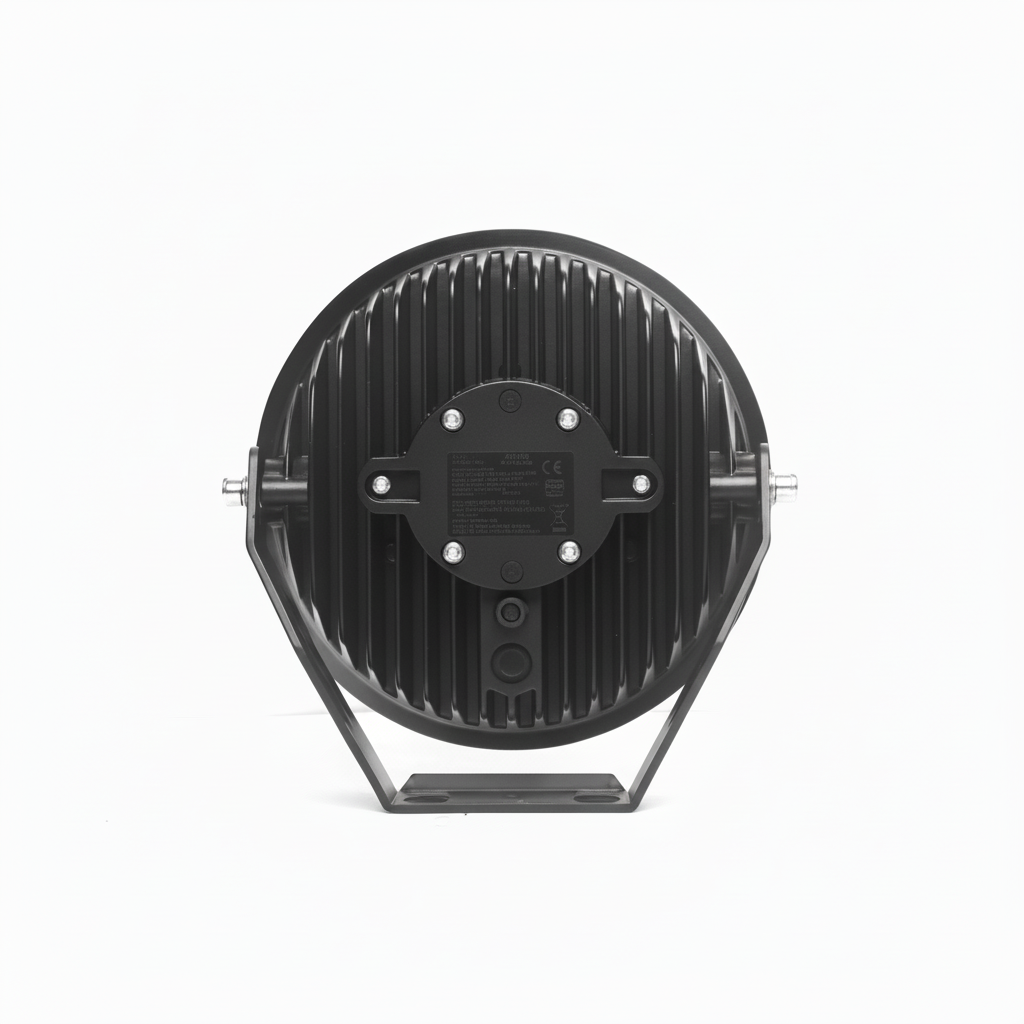

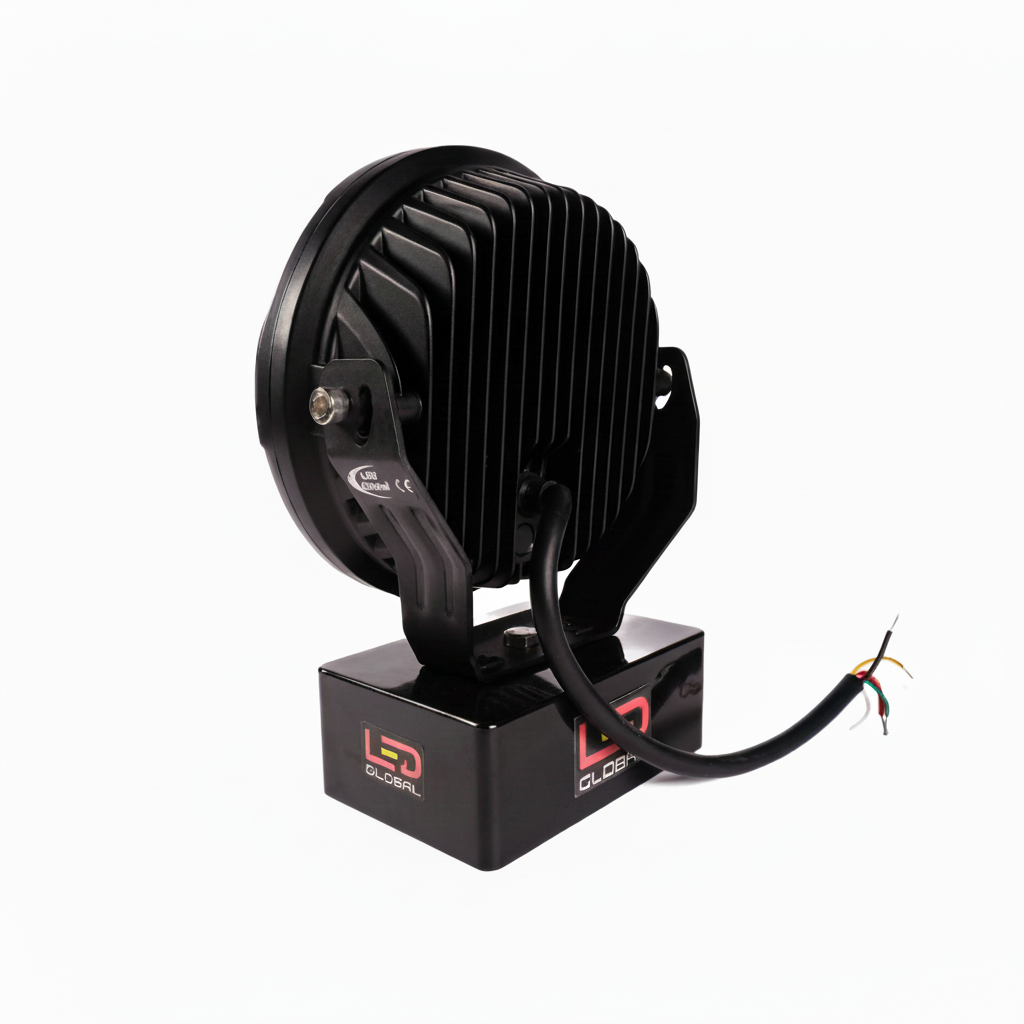

The diecast aluminium housing, polycarbonate lens and heavy-duty SPCC bracket provide a robust mounting arrangement. Protection is IP67/IP69K, with ECE R10, R65, R148 and R149 approvals listed. The 300–350 mm bare-lead cable uses black for ground, red for main driving light, grey for white position light, yellow for amber position light and green for the warning strobe.
